DTC P0101: Mass Airflow Sensor
>>
CONSULT-II Reference Value In Data Monitor Mode
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CONSULT-II Reference Value In Data Monitor Mode
For CONSULT-II reference value in data monitor mode, see
Fig 1
.

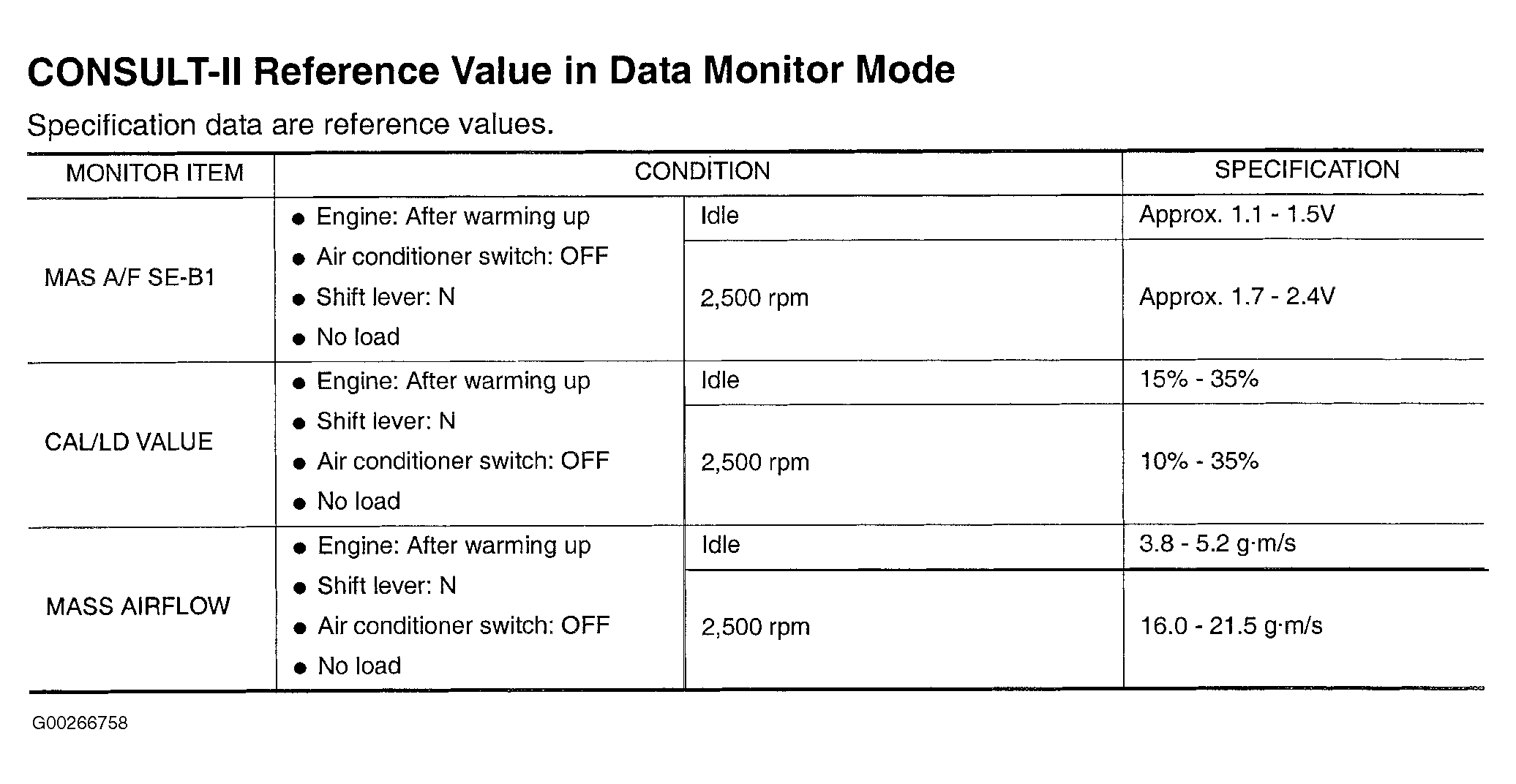

Fig 1: CONSULT-II Reference Value In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
