Wiring Diagram & Reference Data For Intake Air Temperature Sensor

For wiring diagram of Intake Air Temperature (IAT) sensor circuit, see DTC P0112 & P0113: INTAKE AIR TEMPERATURE SENSOR  . For IAT sensor reference data, see Fig 1 .

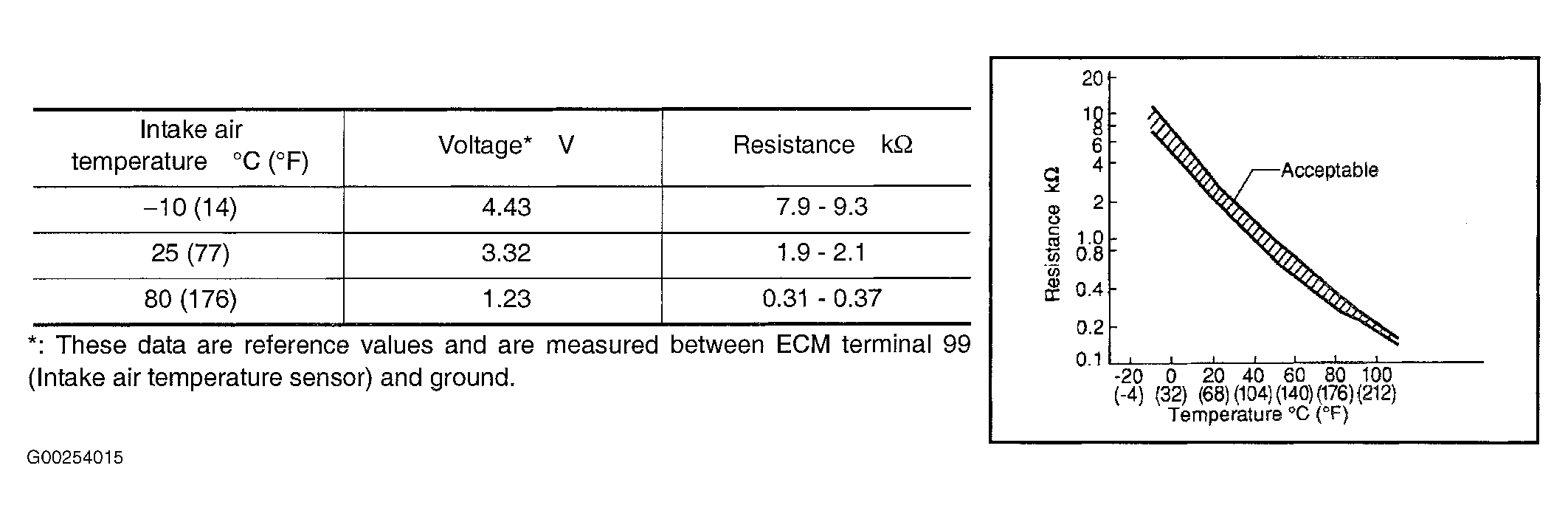

Fig 1: Reference Data For Intake Air Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
