Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 5 .

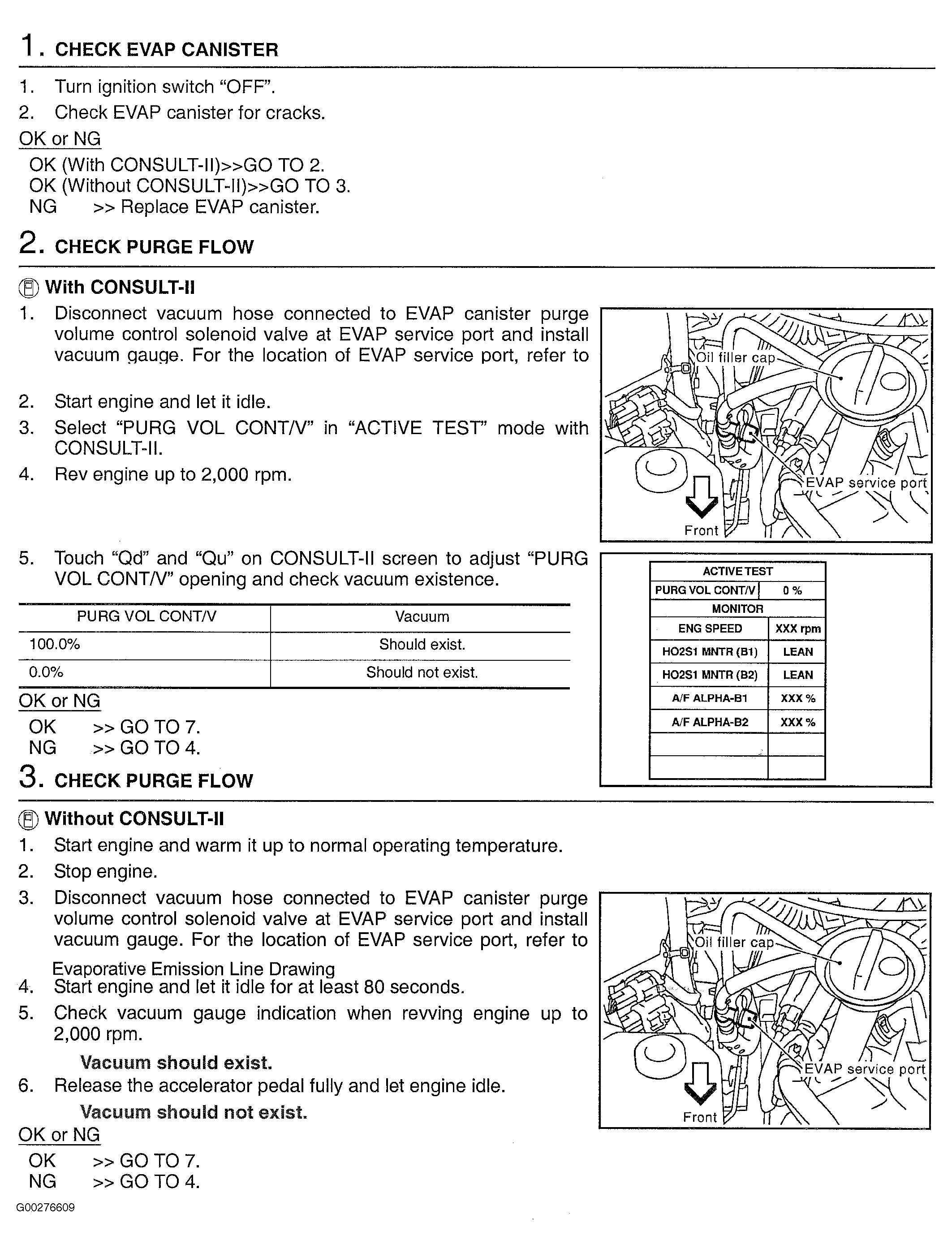

Fig 1: Diagnostic Procedure (Steps 1-3)

G00276609

Courtesy of NISSAN MOTOR CO., U.S.A.

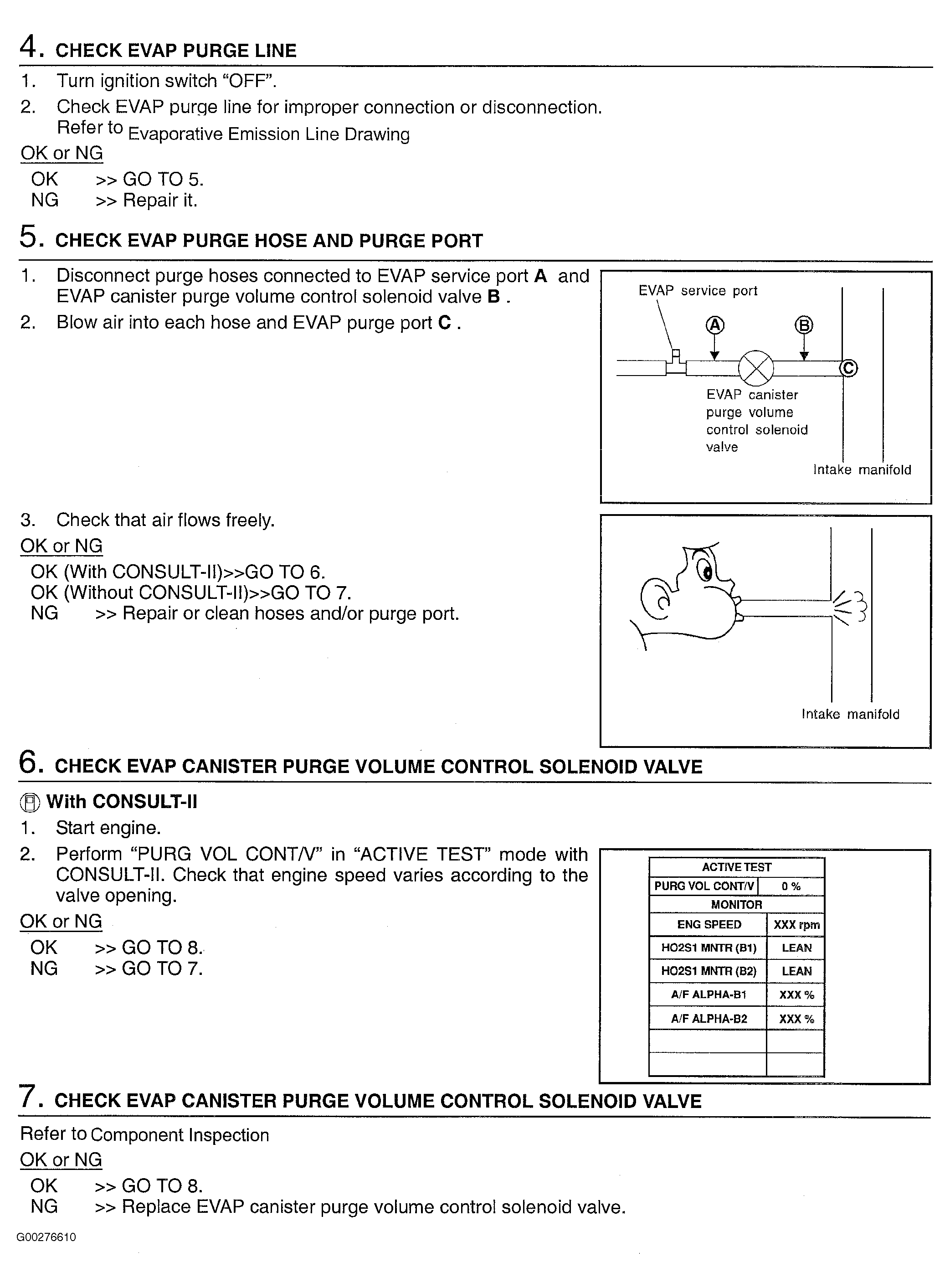

Fig 2: Diagnostic Procedure (Steps 4-7)

G00276610

Courtesy of NISSAN MOTOR CO., U.S.A.

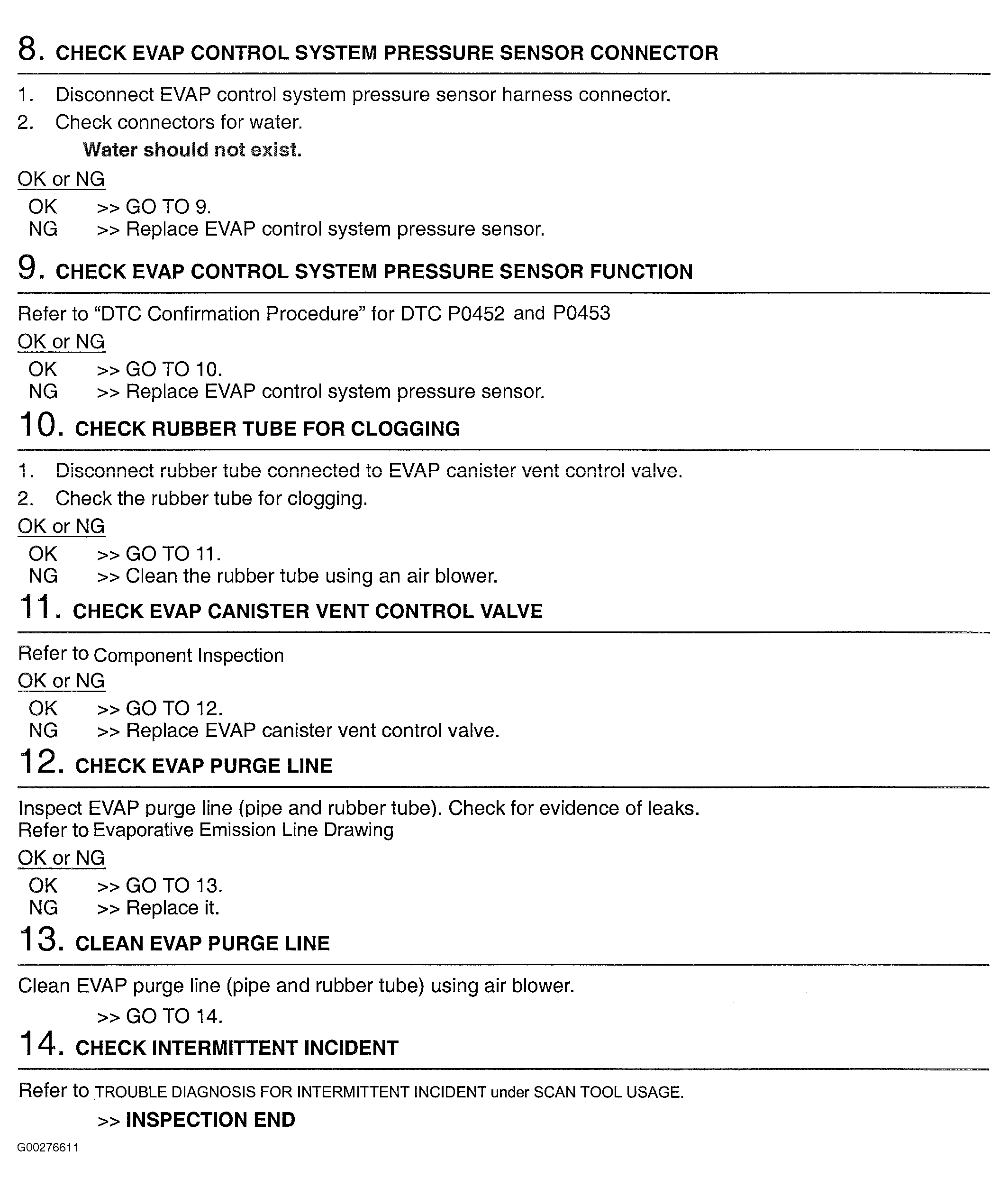

Fig 3: Diagnostic Procedure (Steps 8-14)

G00276611

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Evaporative Emission Line Drawing (1 Of 2)

G00276612

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Evaporative Emission Line Drawing (2 Of 2)

G00276613

Courtesy of NISSAN MOTOR CO., U.S.A.
