DTC P0452: EVAP Control System Pressure Sensor (Low)
>>
Component Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Description
For component description, see
Fig 1
.

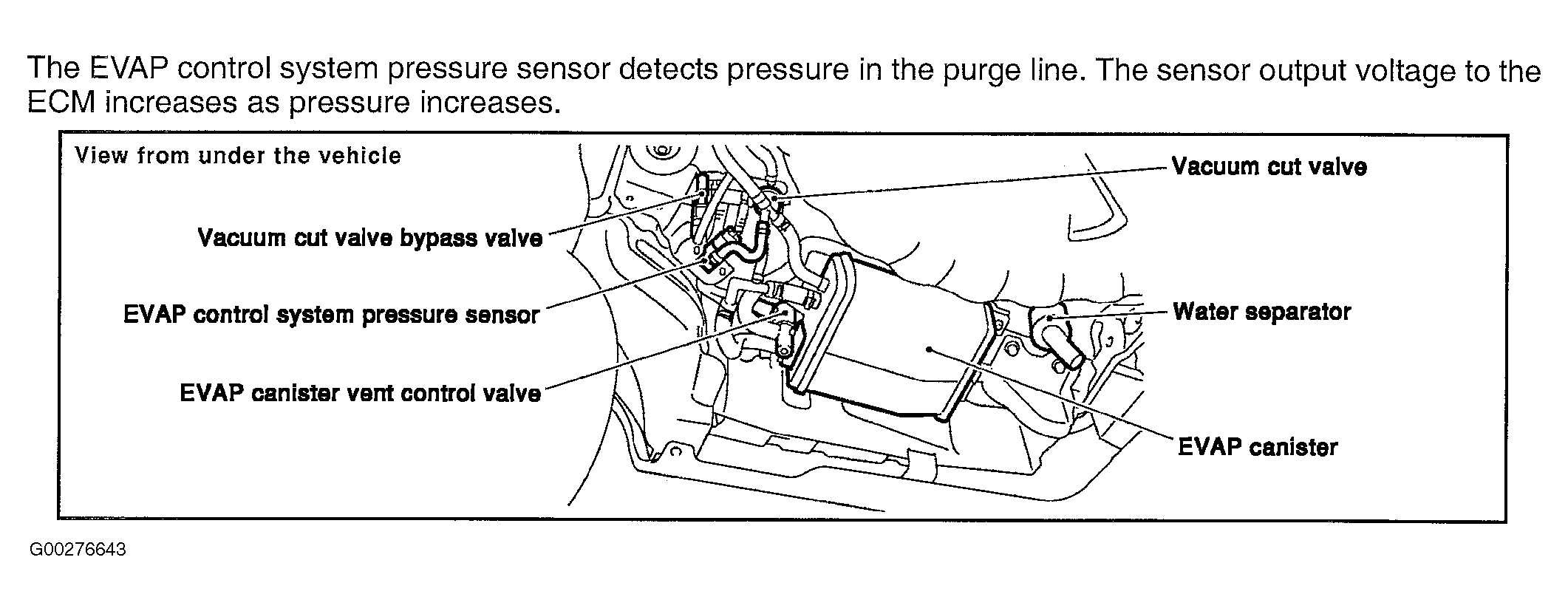

Fig 1: Component Description
Courtesy of NISSAN MOTOR CO., U.S.A.
