Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 3 .

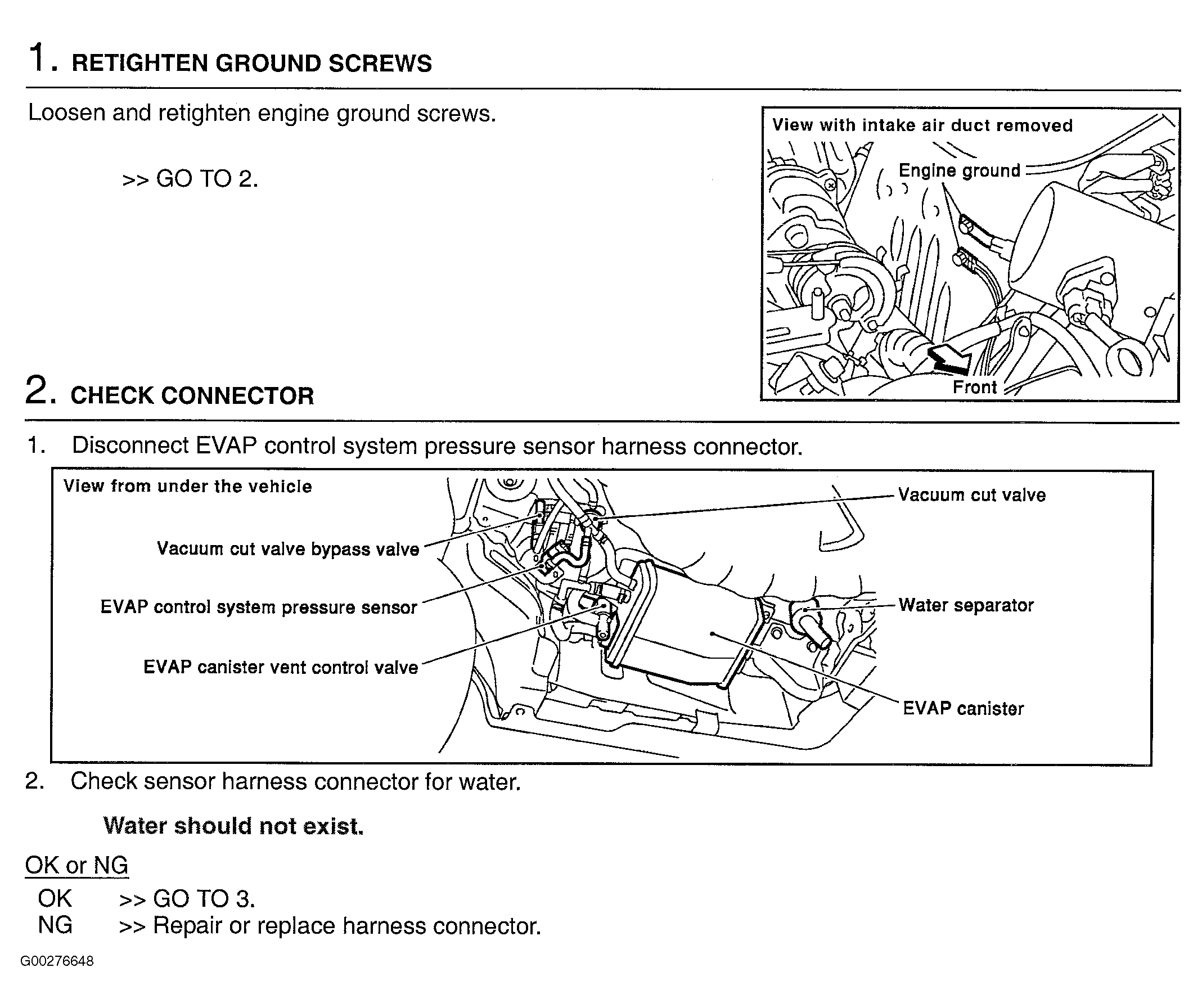

Fig 1: Diagnostic Procedure (Steps 1-2)
G00276648Courtesy of NISSAN MOTOR CO., U.S.A.

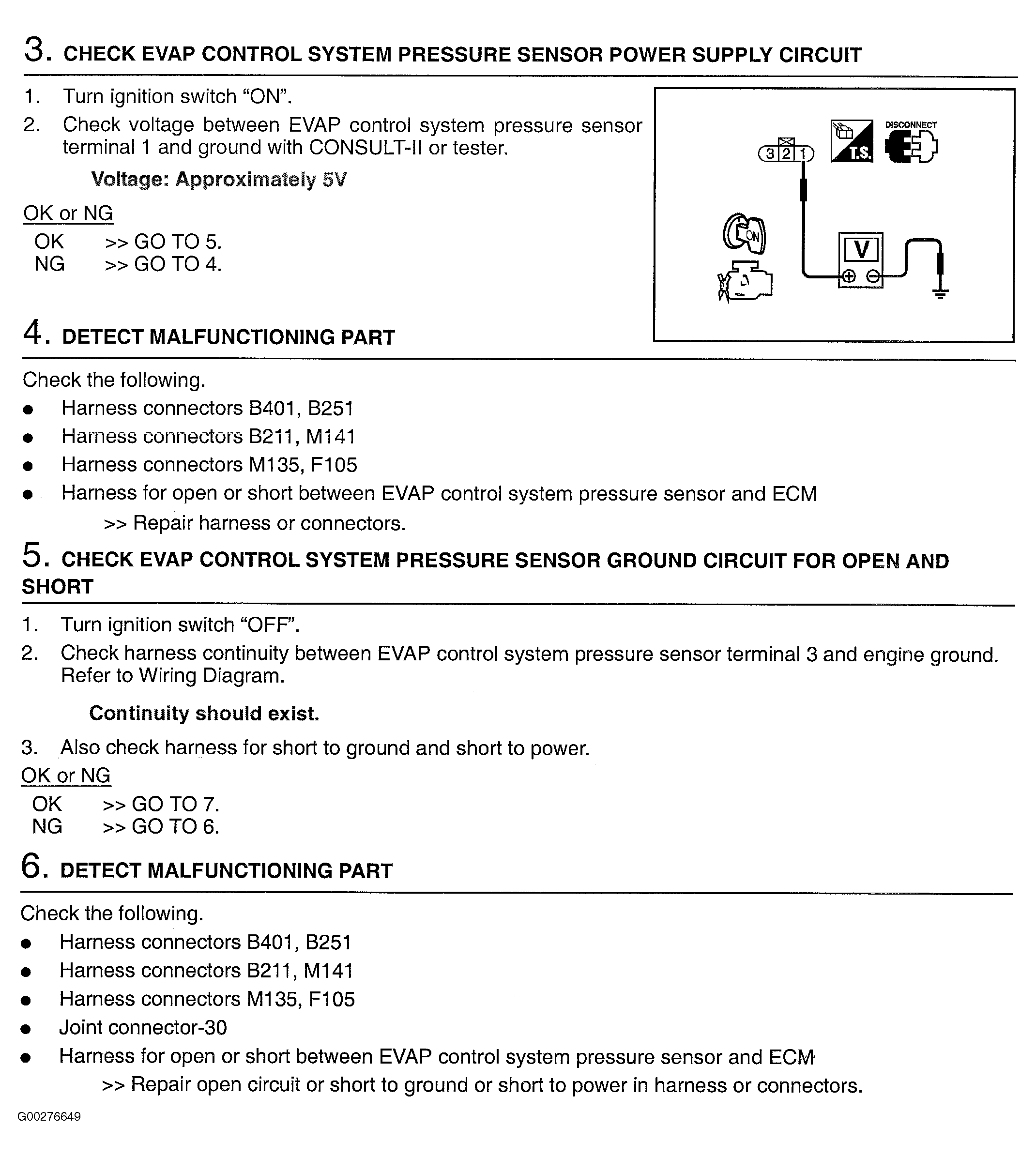

Fig 2: Diagnostic Procedure (Steps 3-6)
G00276649Courtesy of NISSAN MOTOR CO., U.S.A.

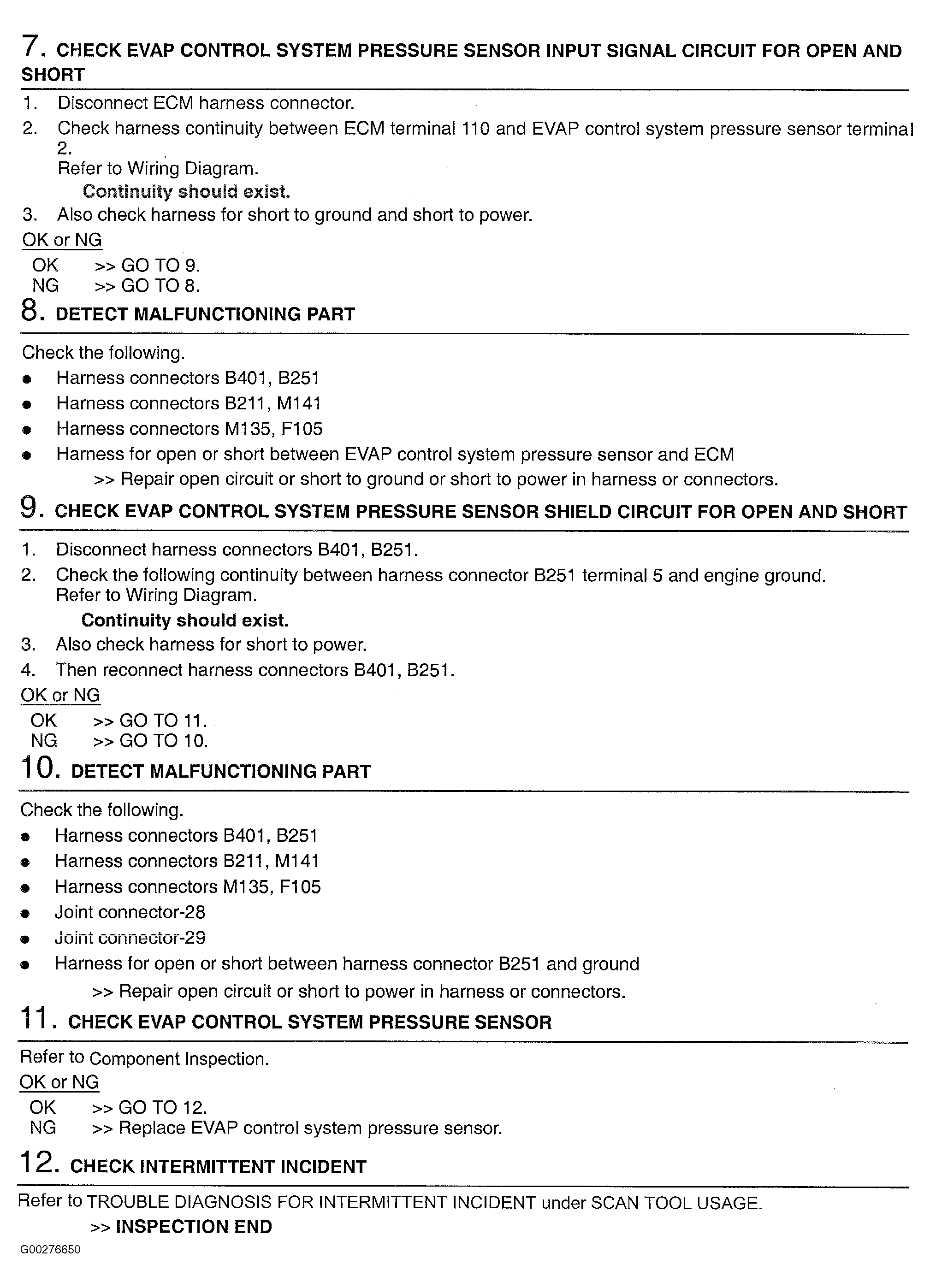

Fig 3: Diagnostic Procedure (Steps 7-12)
G00276650Courtesy of NISSAN MOTOR CO., U.S.A.
