Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 6 .

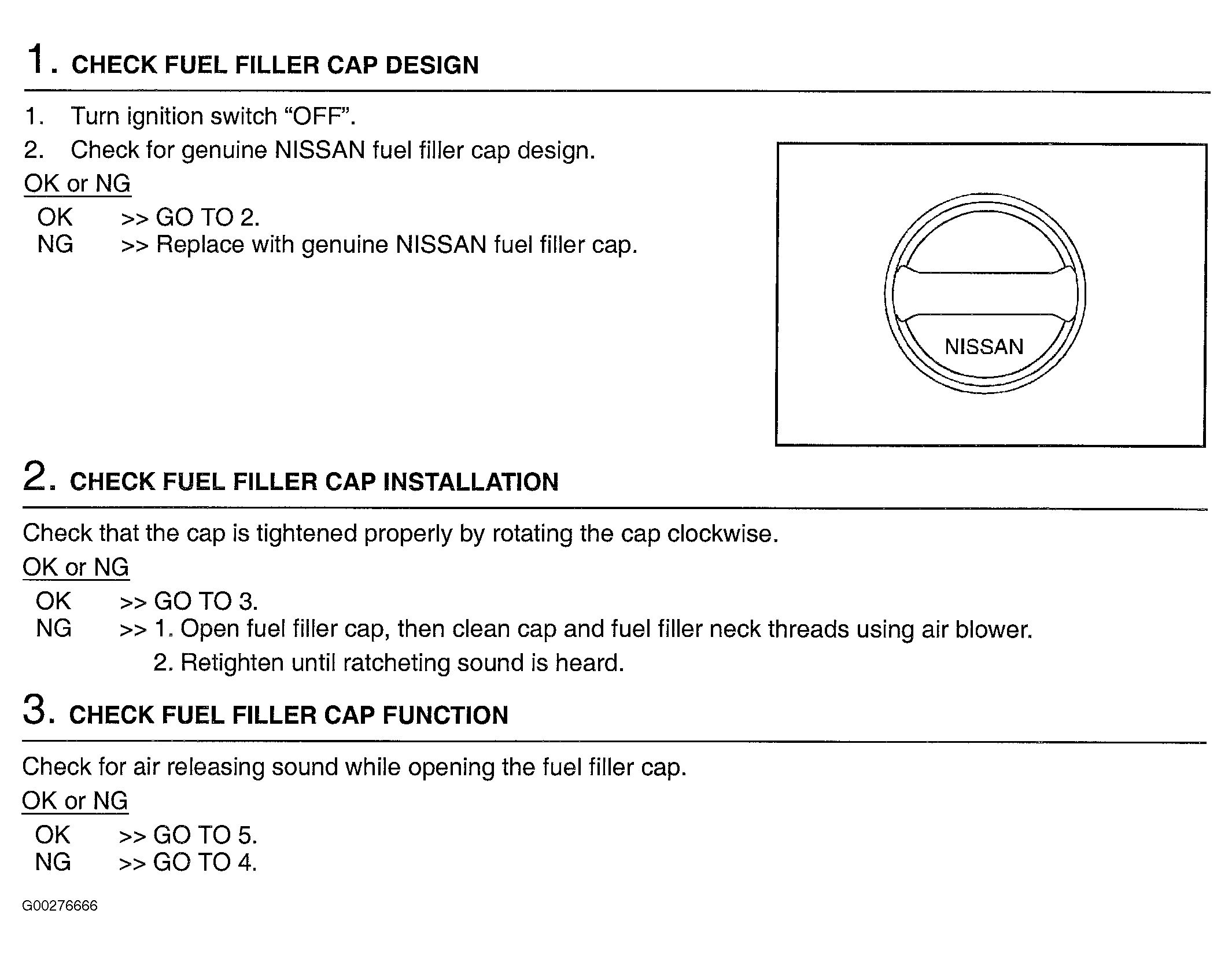

Fig 1: Diagnostic Procedure (Steps 1-3)

G00276666

Courtesy of NISSAN MOTOR CO., U.S.A.

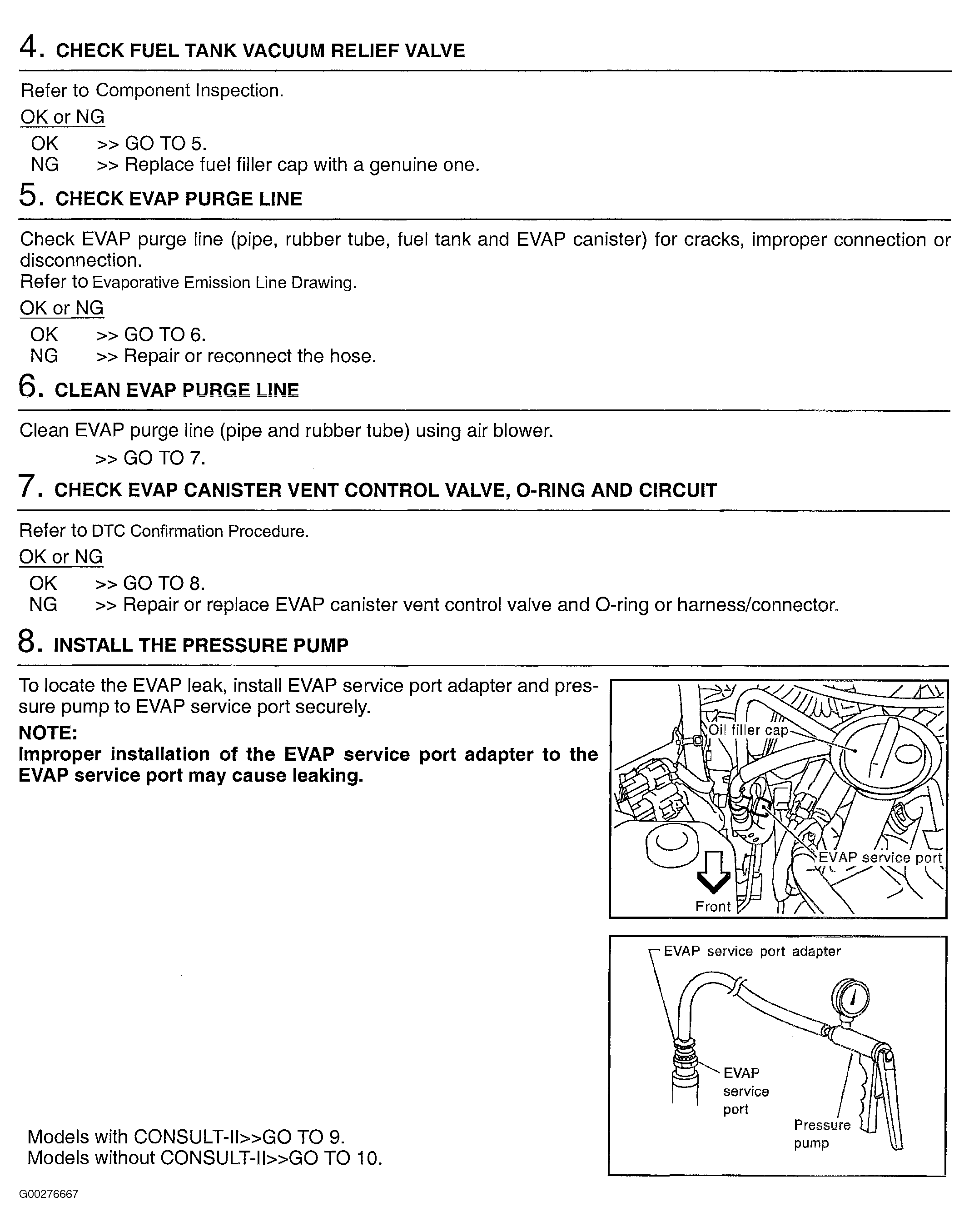

Fig 2: Diagnostic Procedure (Steps 4-8)

G00276667

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Diagnostic Procedure (Step 9)

G00276668

Courtesy of NISSAN MOTOR CO., U.S.A.

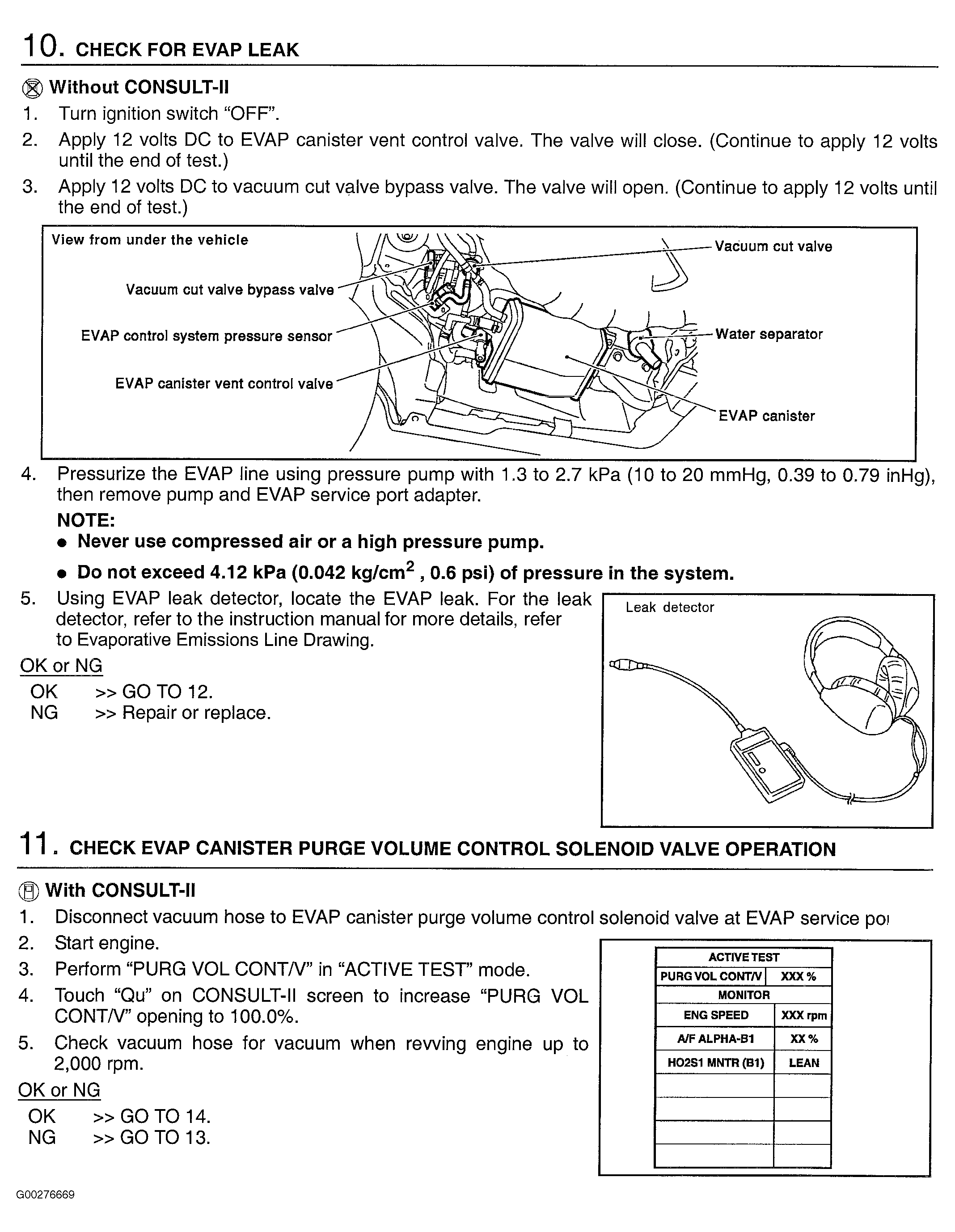

Fig 4: Diagnostic Procedure (Steps 10-11)

G00276669

Courtesy of NISSAN MOTOR CO., U.S.A.

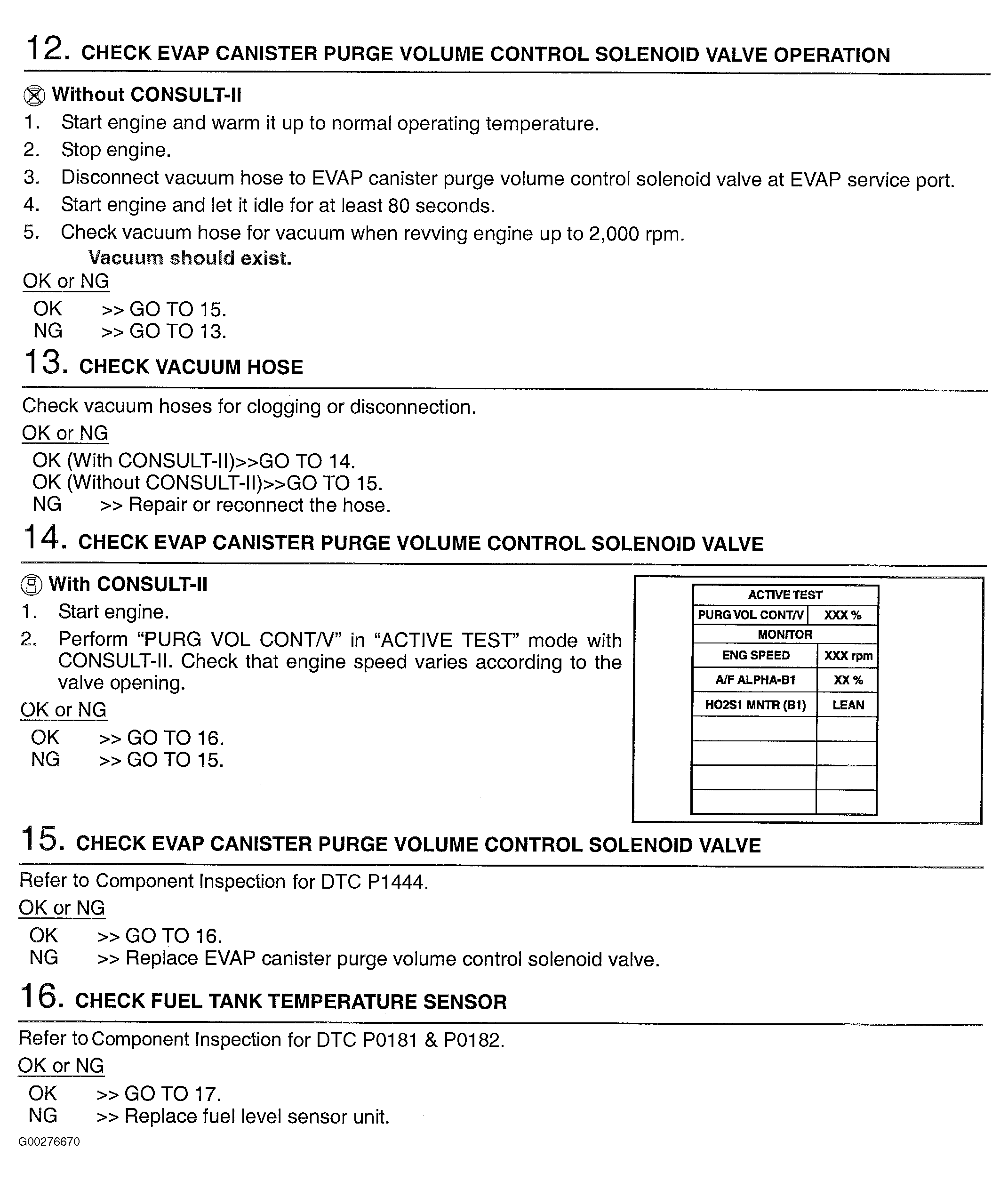

Fig 5: Diagnostic Procedure (Steps 12-16)

G00276670

Courtesy of NISSAN MOTOR CO., U.S.A.

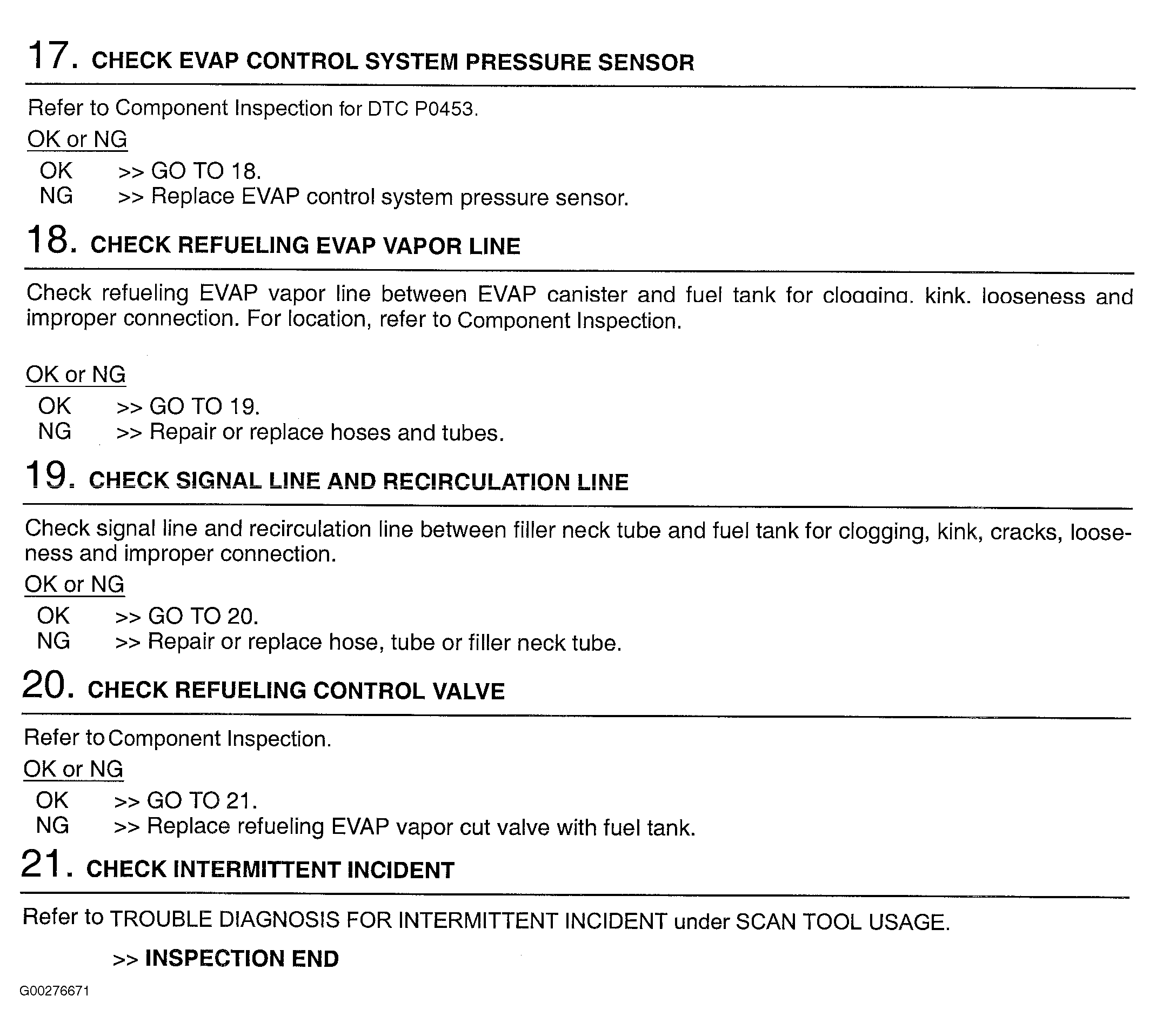

Fig 6: Diagnostic Procedure (17-21)

G00276671

Courtesy of NISSAN MOTOR CO., U.S.A.
