On Board Diagnosis Logic

For on board diagnosis logic, see Fig 1 .

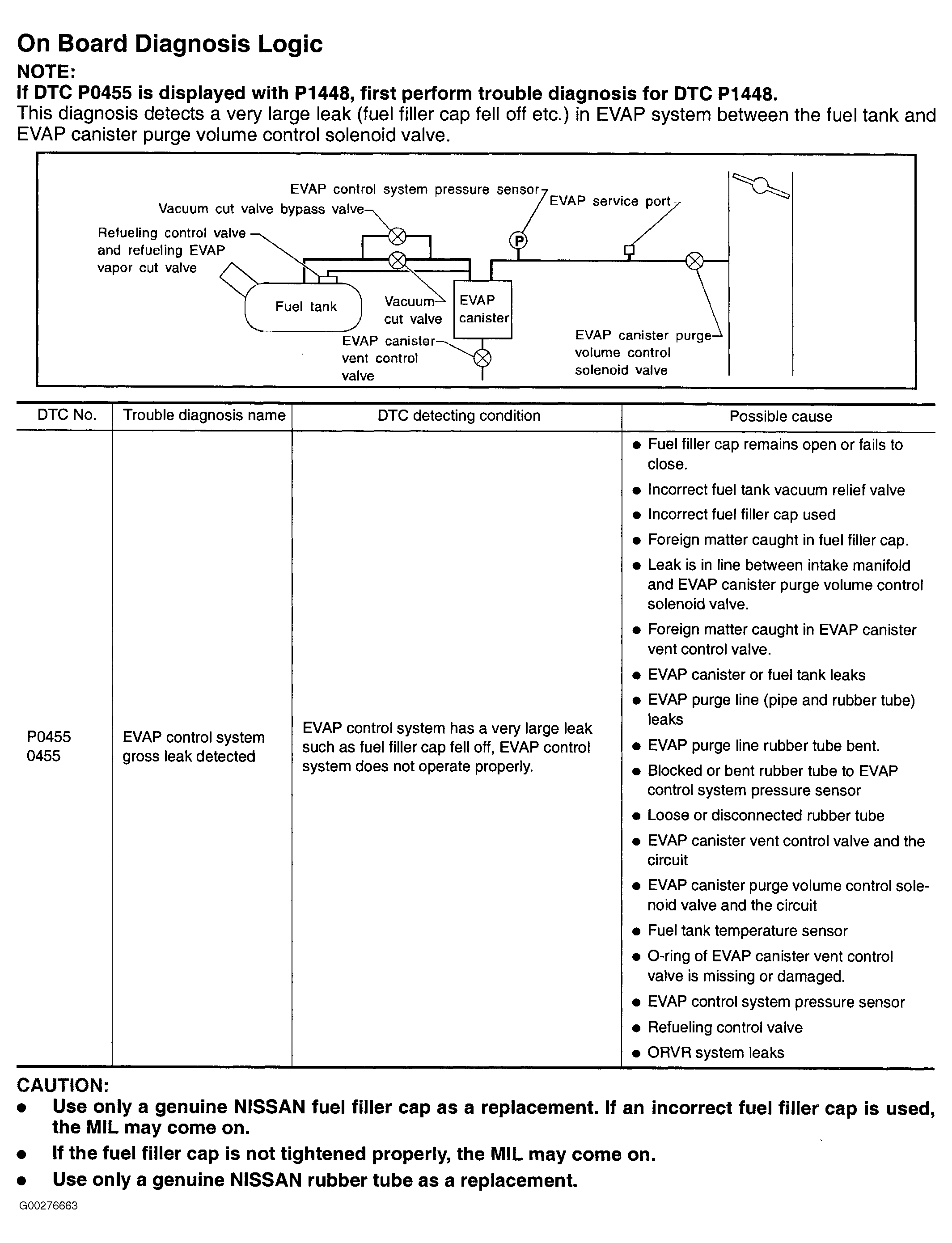

Fig 1: On Board Diagnosis Logic
G00276663Courtesy of NISSAN MOTOR CO., U.S.A.
