Diagnostic Procedure

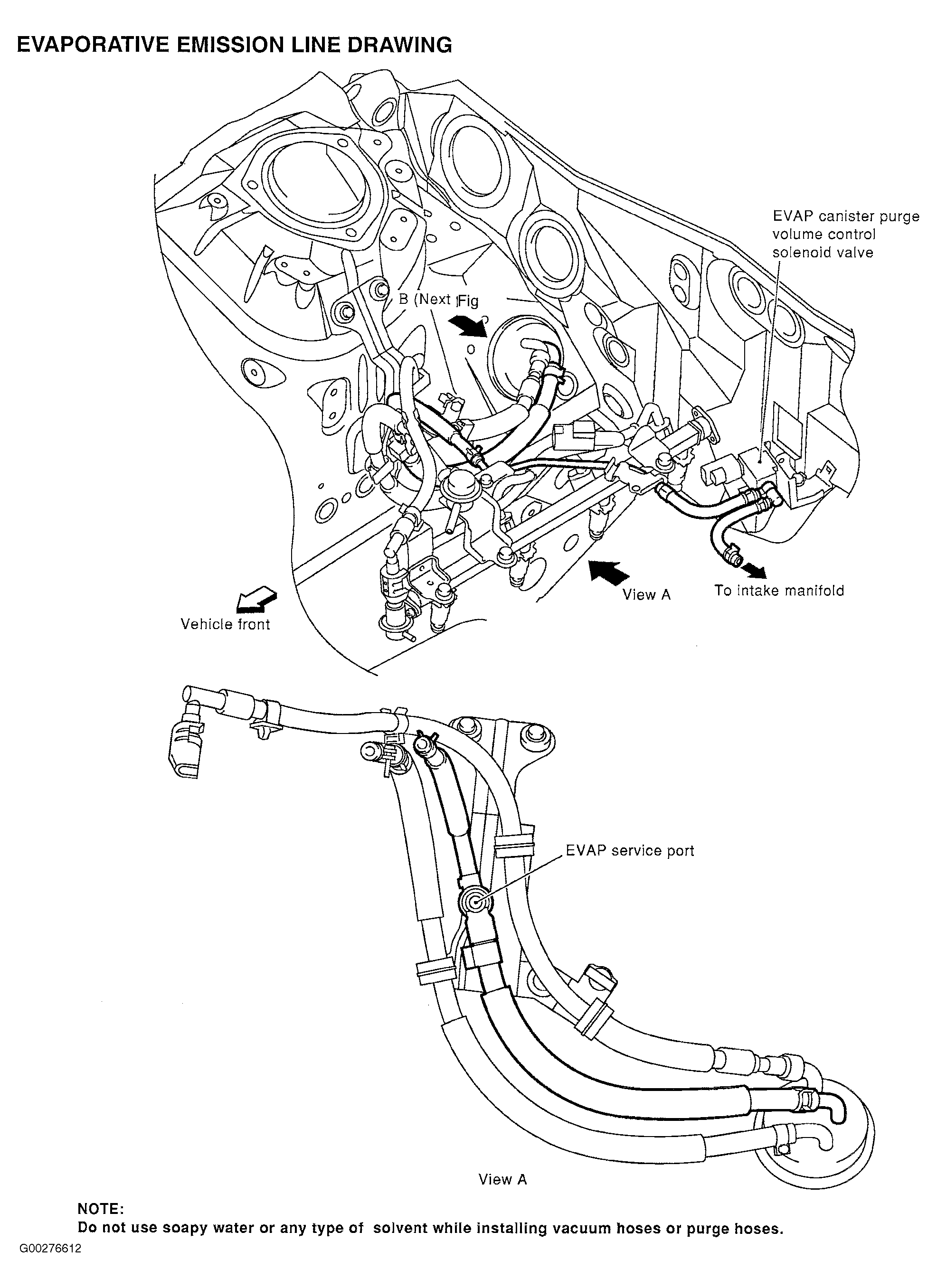

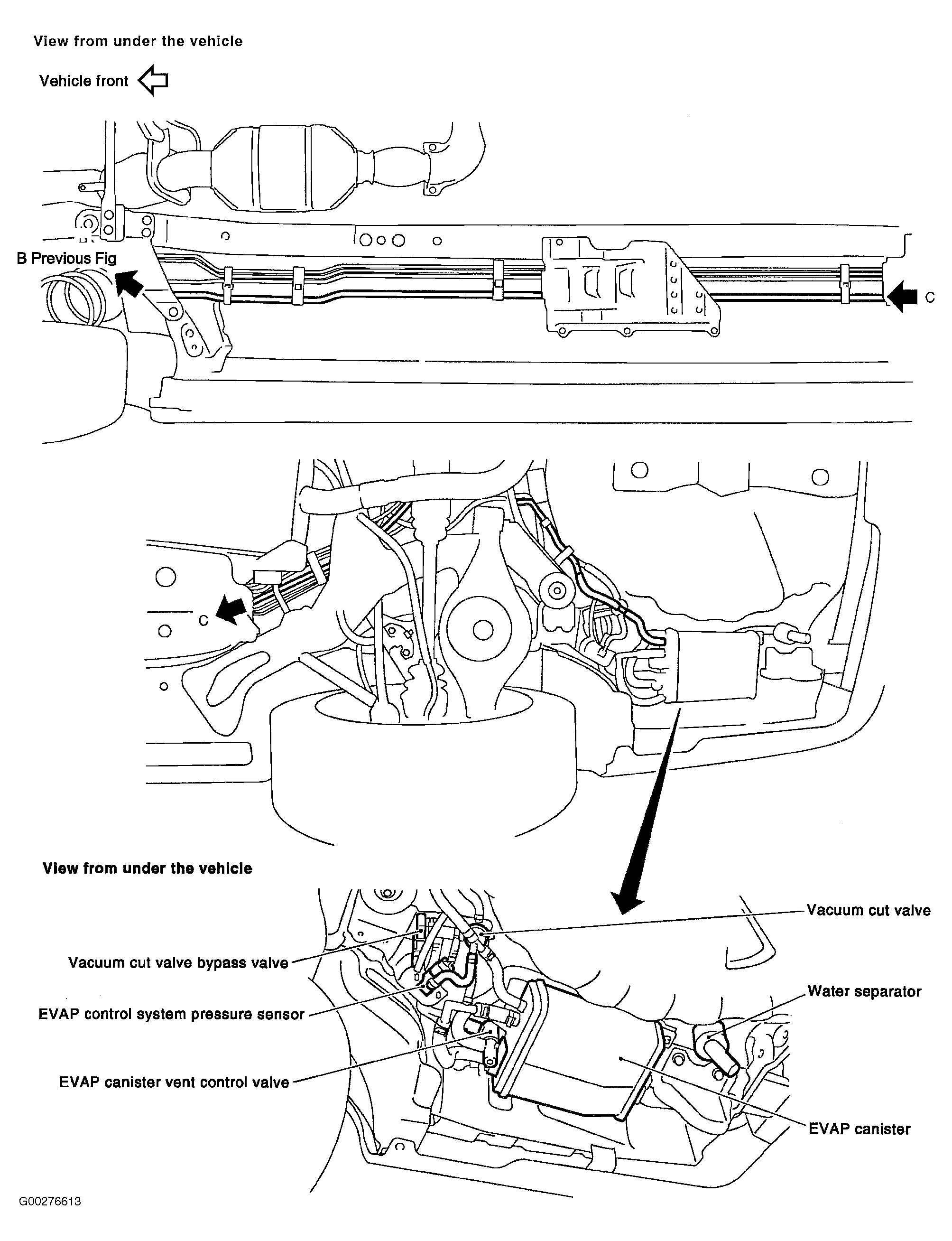

NOTE: For views of evaporative emission line drawings, see Figure and Figure .

For diagnostic procedure, see Fig 1 -Fig 6 .

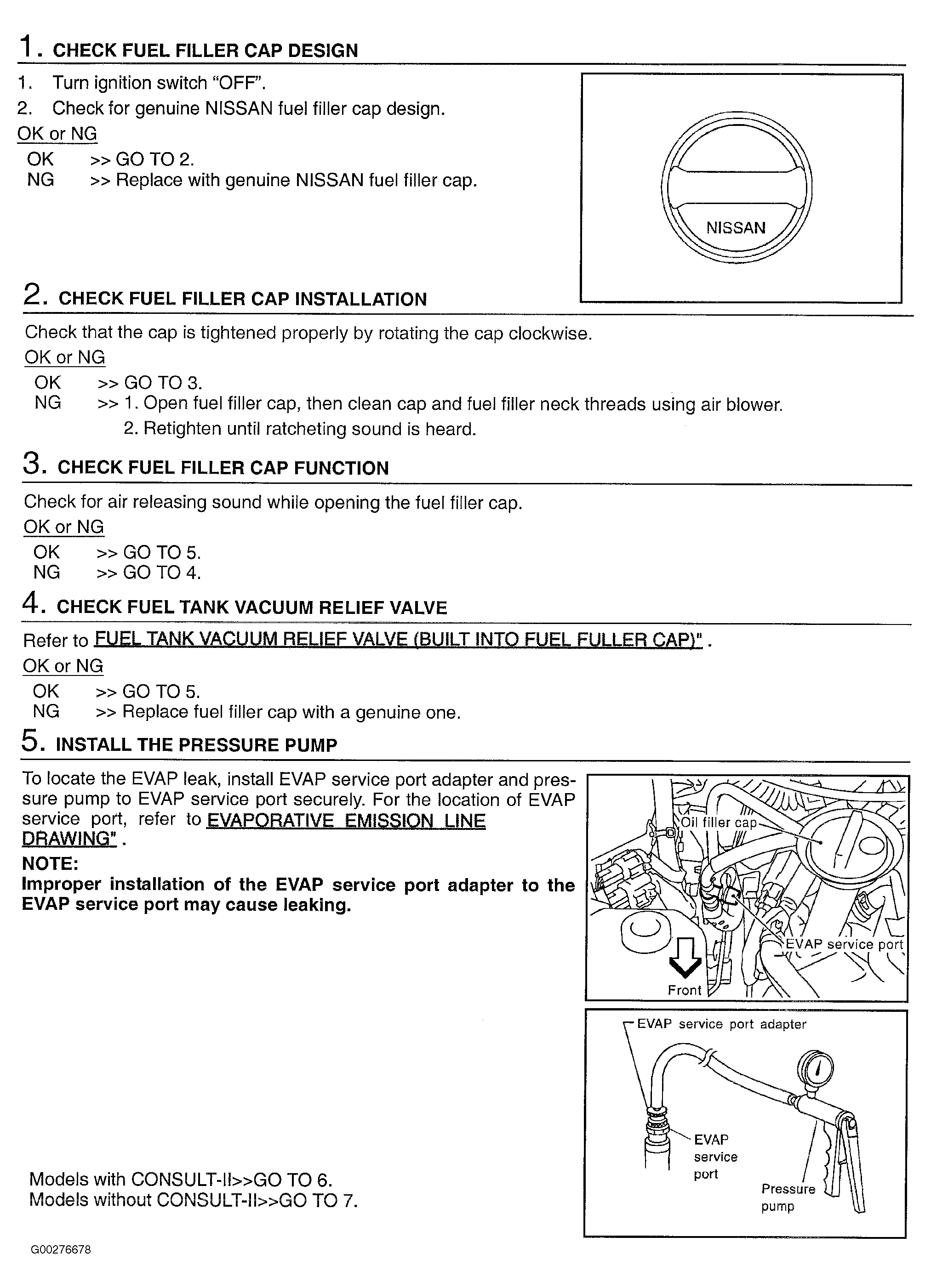

Fig 1: Diagnostic Procedure (Steps 1-5)

Courtesy of NISSAN MOTOR CO., U.S.A.

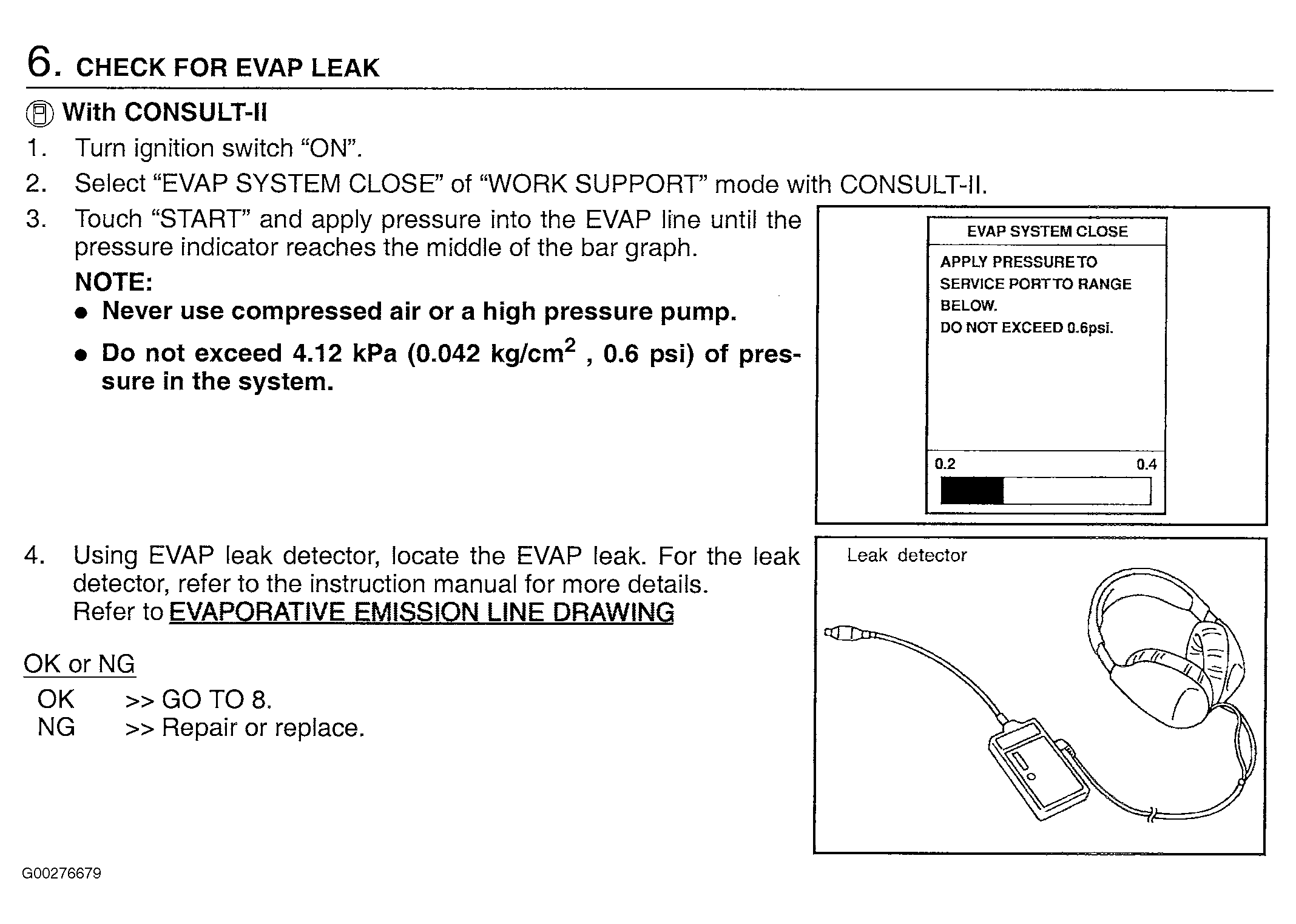

Fig 2: Diagnostic Procedure (Step 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

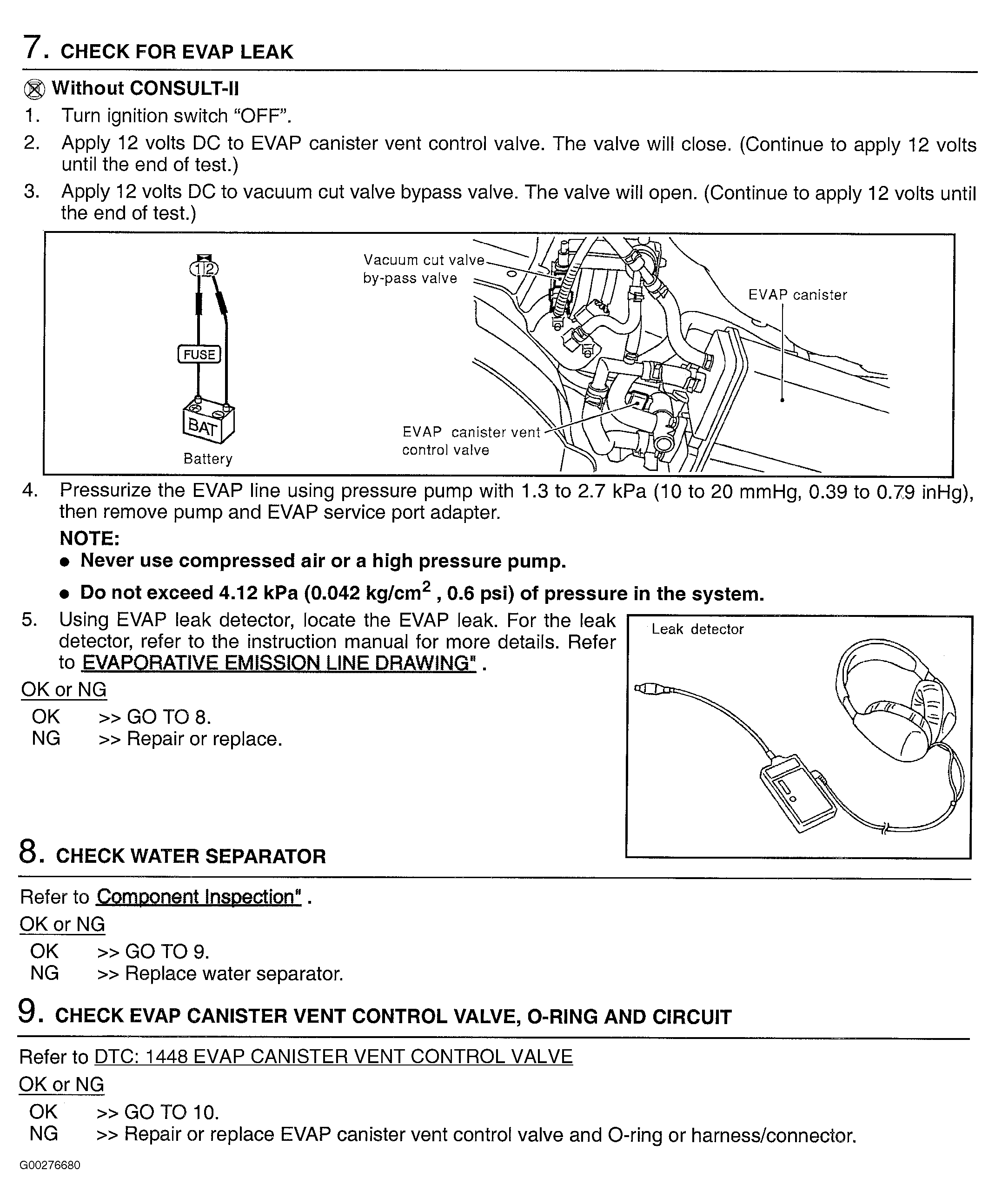

Fig 3: Diagnostic Procedure (Steps 7-9)

Courtesy of NISSAN MOTOR CO., U.S.A.

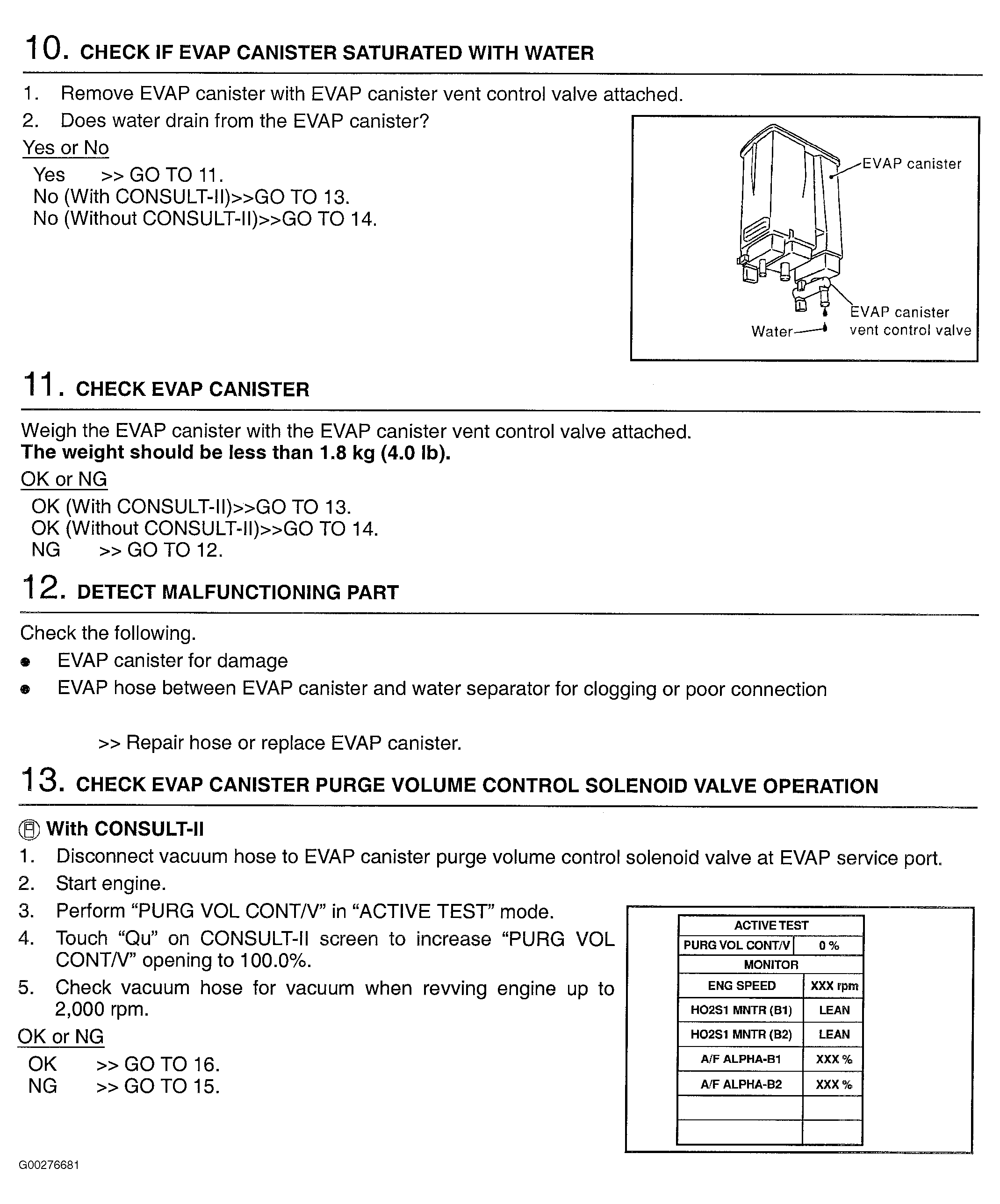

Fig 4: Diagnostic Procedure (Steps 10-13)

Courtesy of NISSAN MOTOR CO., U.S.A.

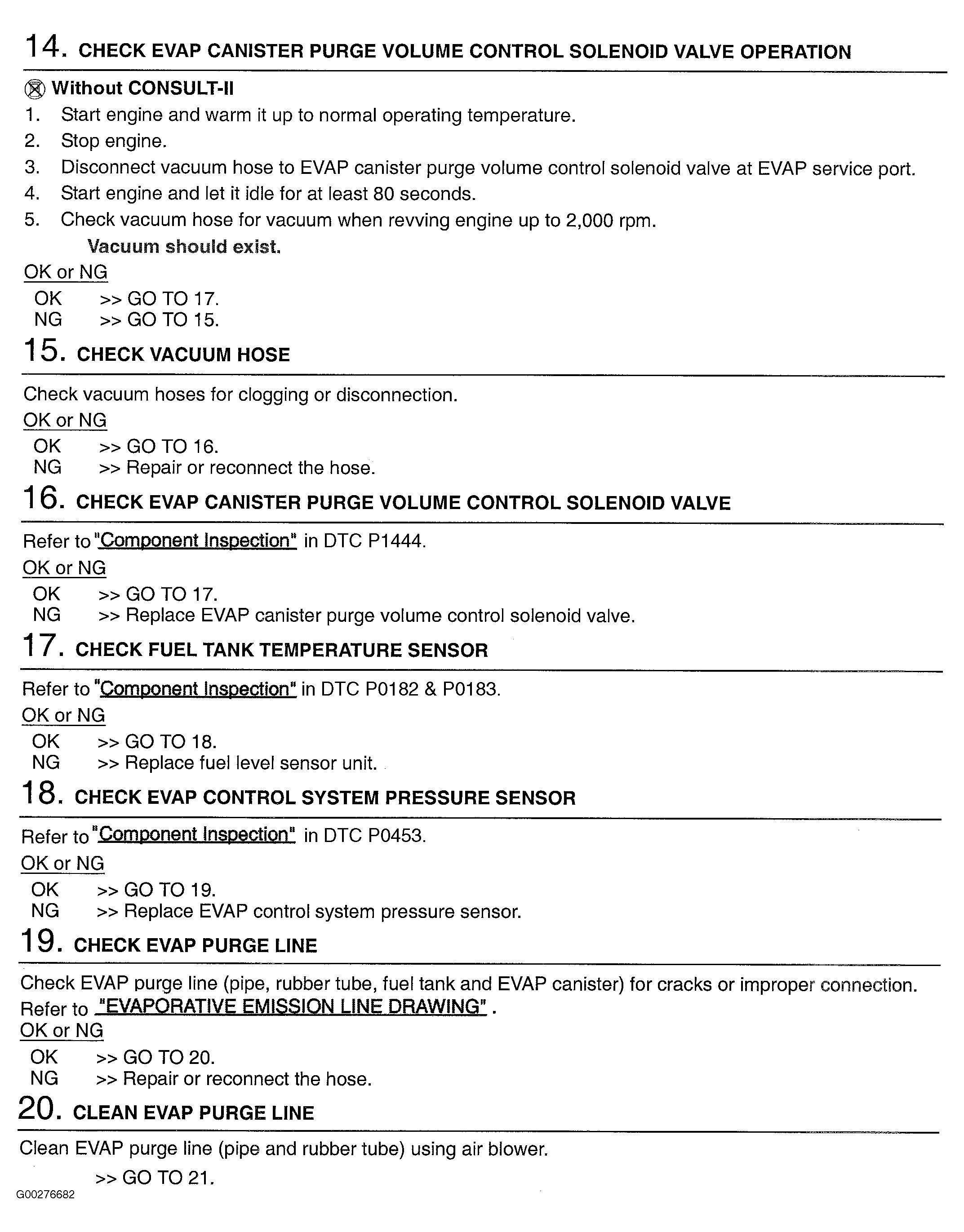

Fig 5: Diagnostic Procedure (Steps 14-20)

Courtesy of NISSAN MOTOR CO., U.S.A.

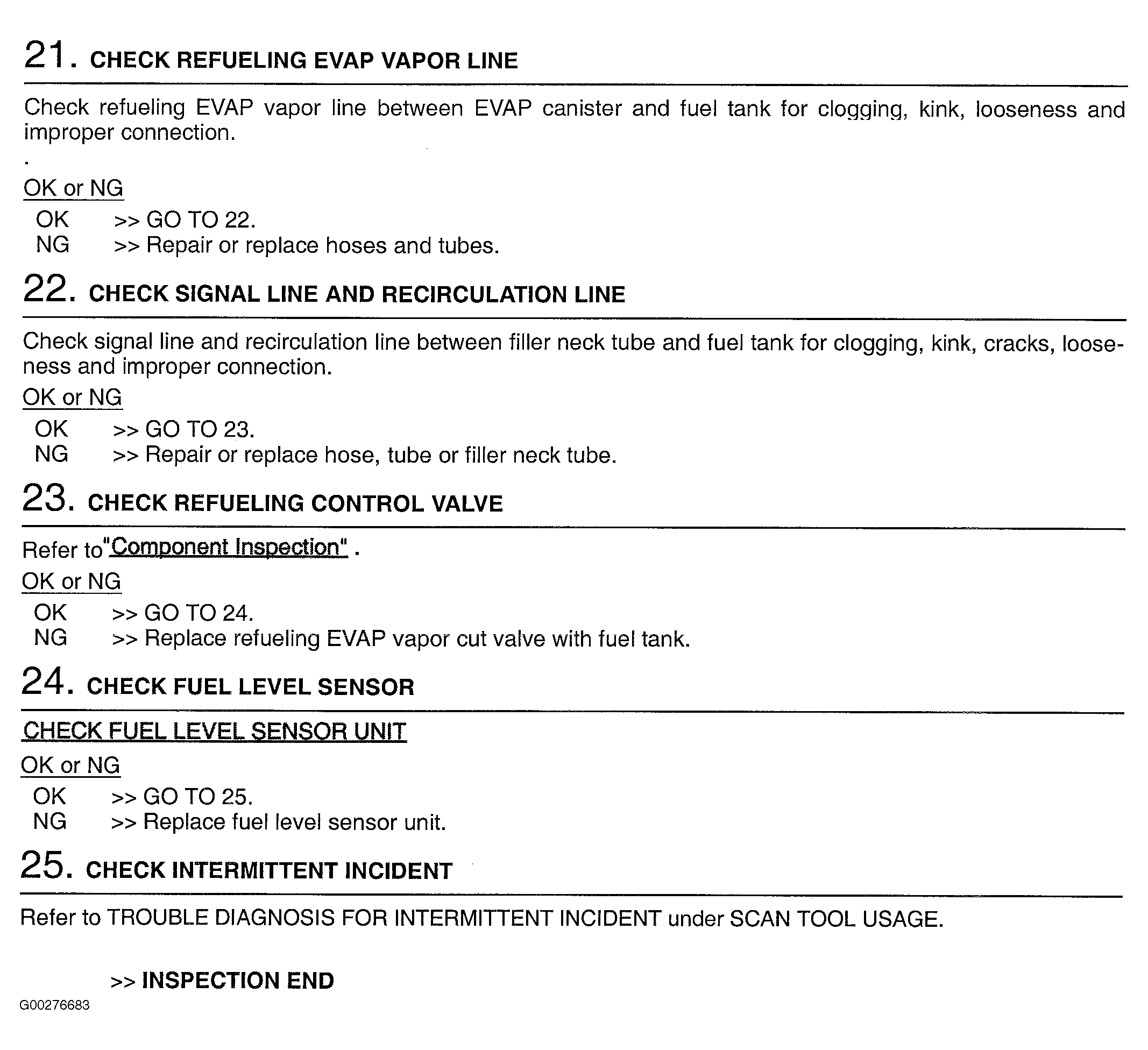

Fig 6: Diagnostic Procedure (Steps 21-25)

Courtesy of NISSAN MOTOR CO., U.S.A.
