Wiring Diagram & Specification Data

For wiring diagram and specification data, see Fig 1 and Fig 2 .

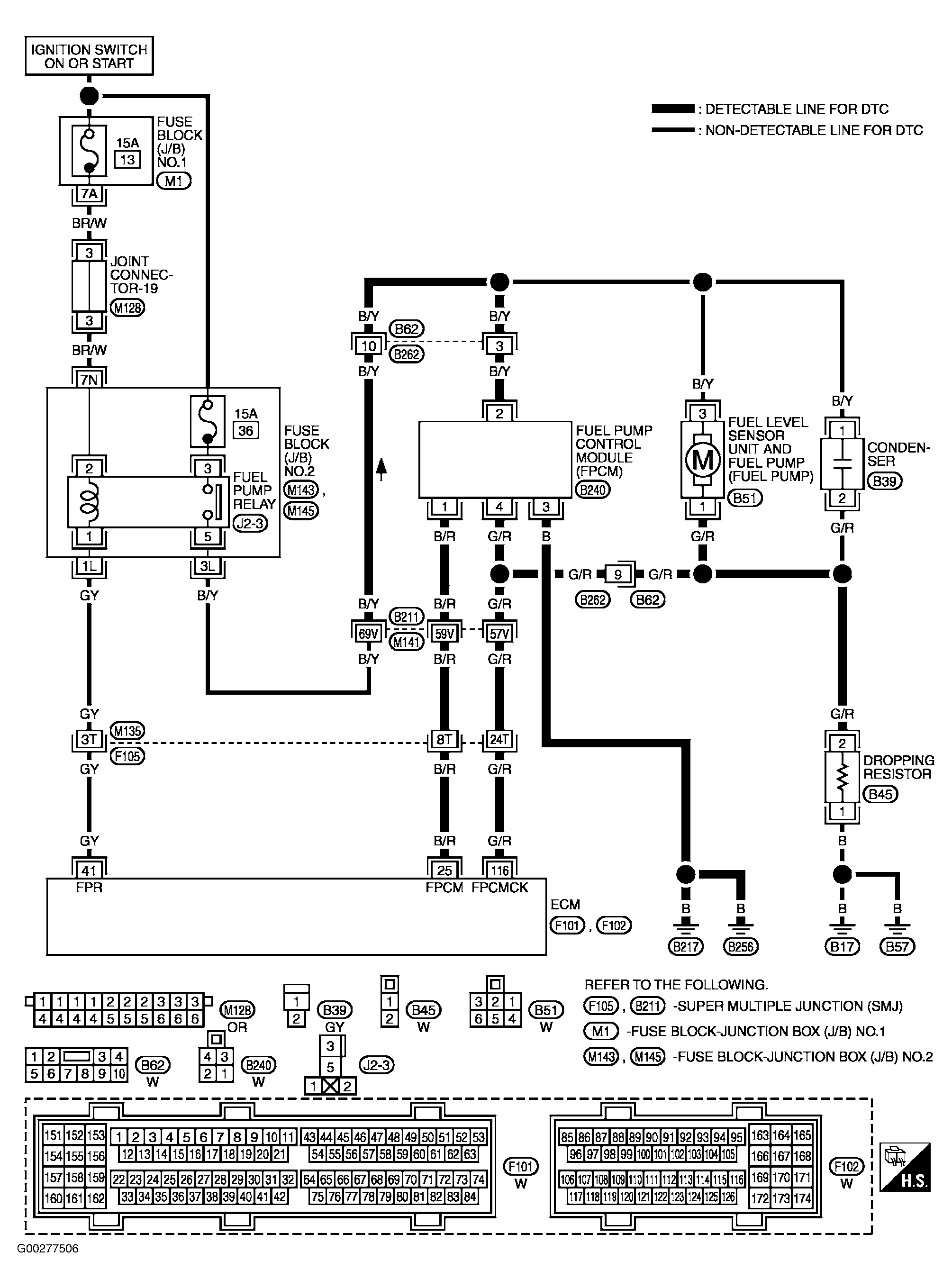

Fig 1: Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

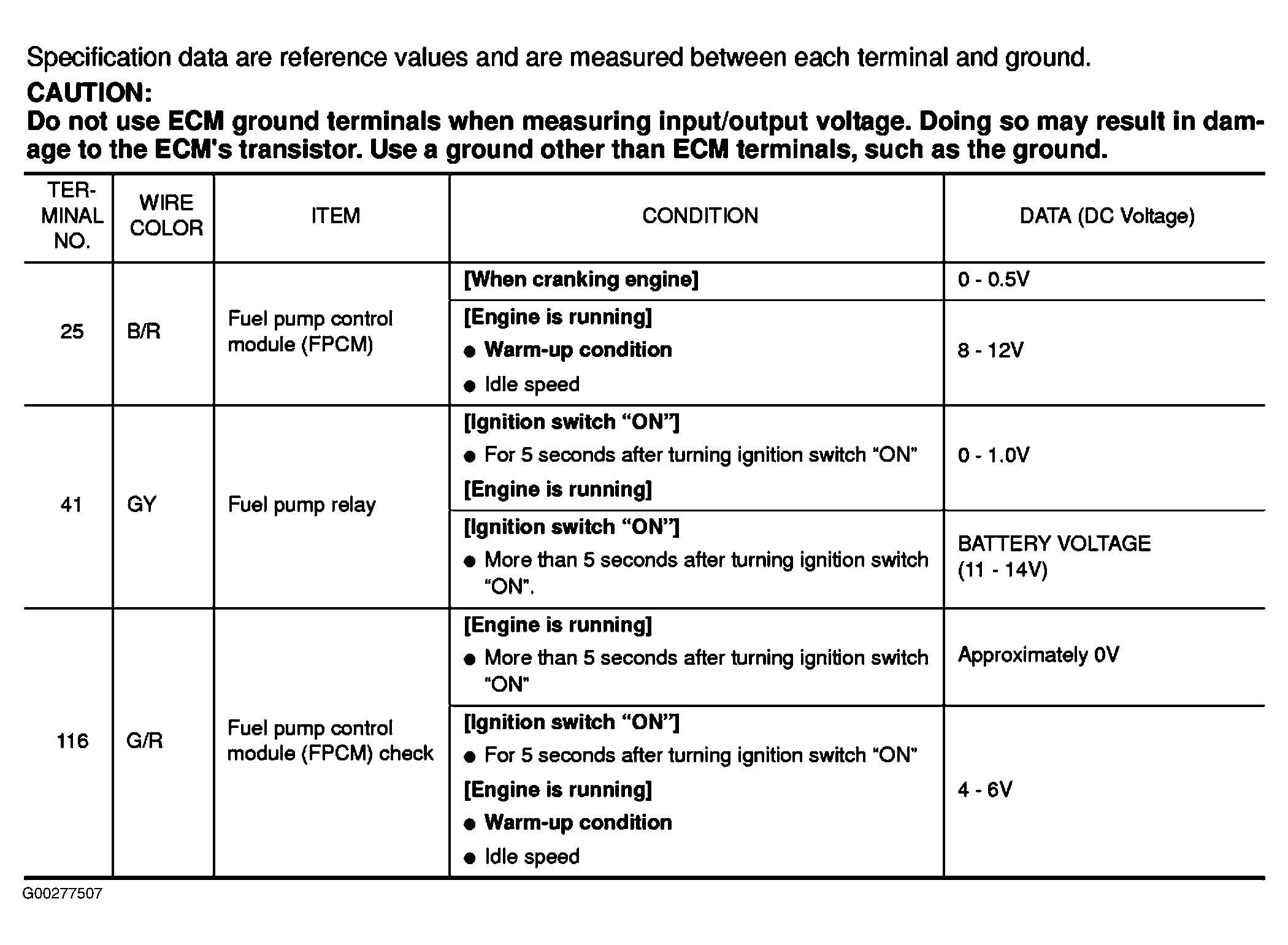

Fig 2: Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
