Diagnostic Procedure
For diagnostic procedure see
Fig 1
and
Fig 2
.

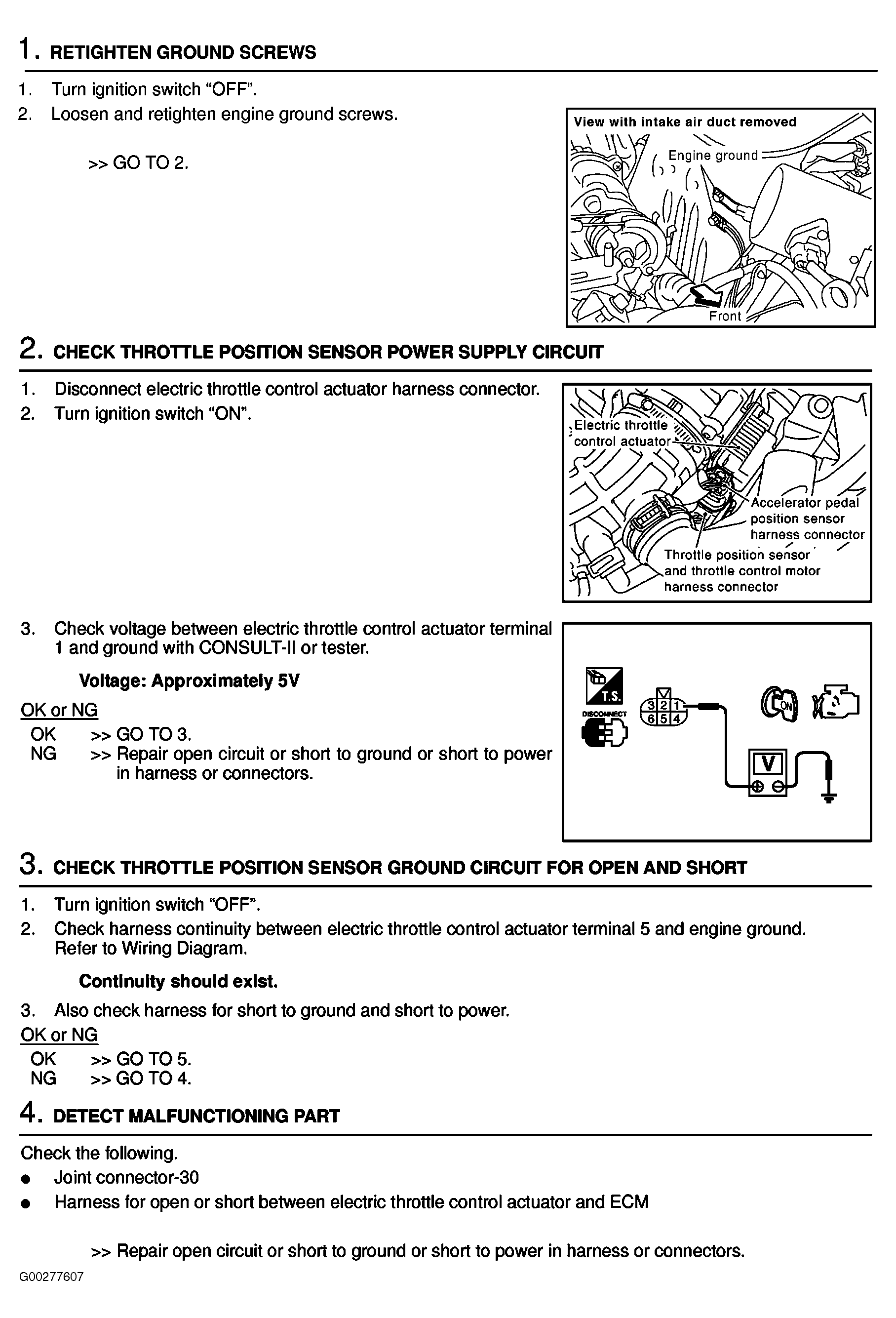

Fig 1: Diagnostic Procedure (Steps 1-4)
Courtesy of NISSAN MOTOR CO., U.S.A..

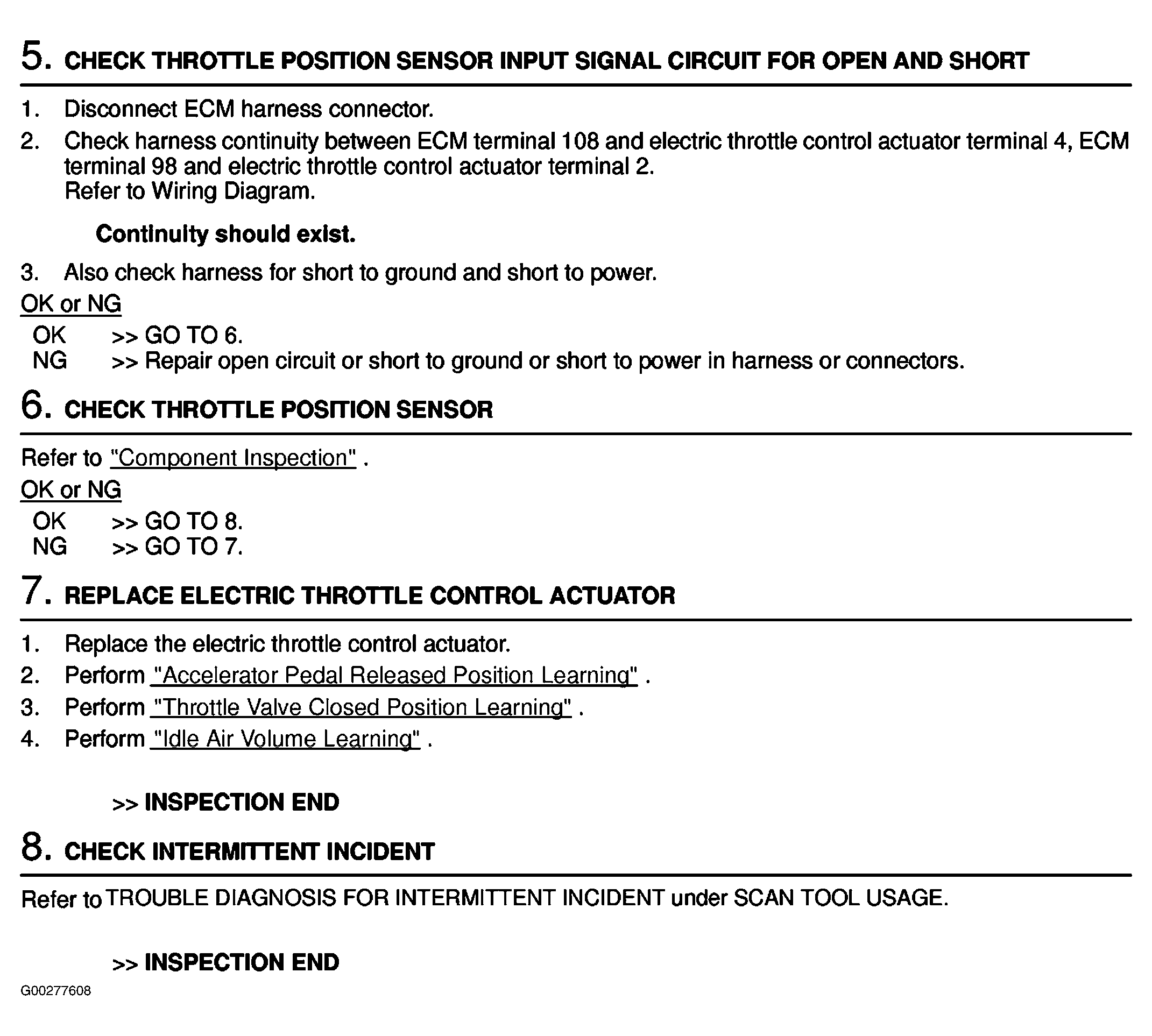

Fig 2: Diagnostic Procedure (Steps 5-8)
Courtesy of NISSAN MOTOR CO., U.S.A..
