Two Trip Detection Logic

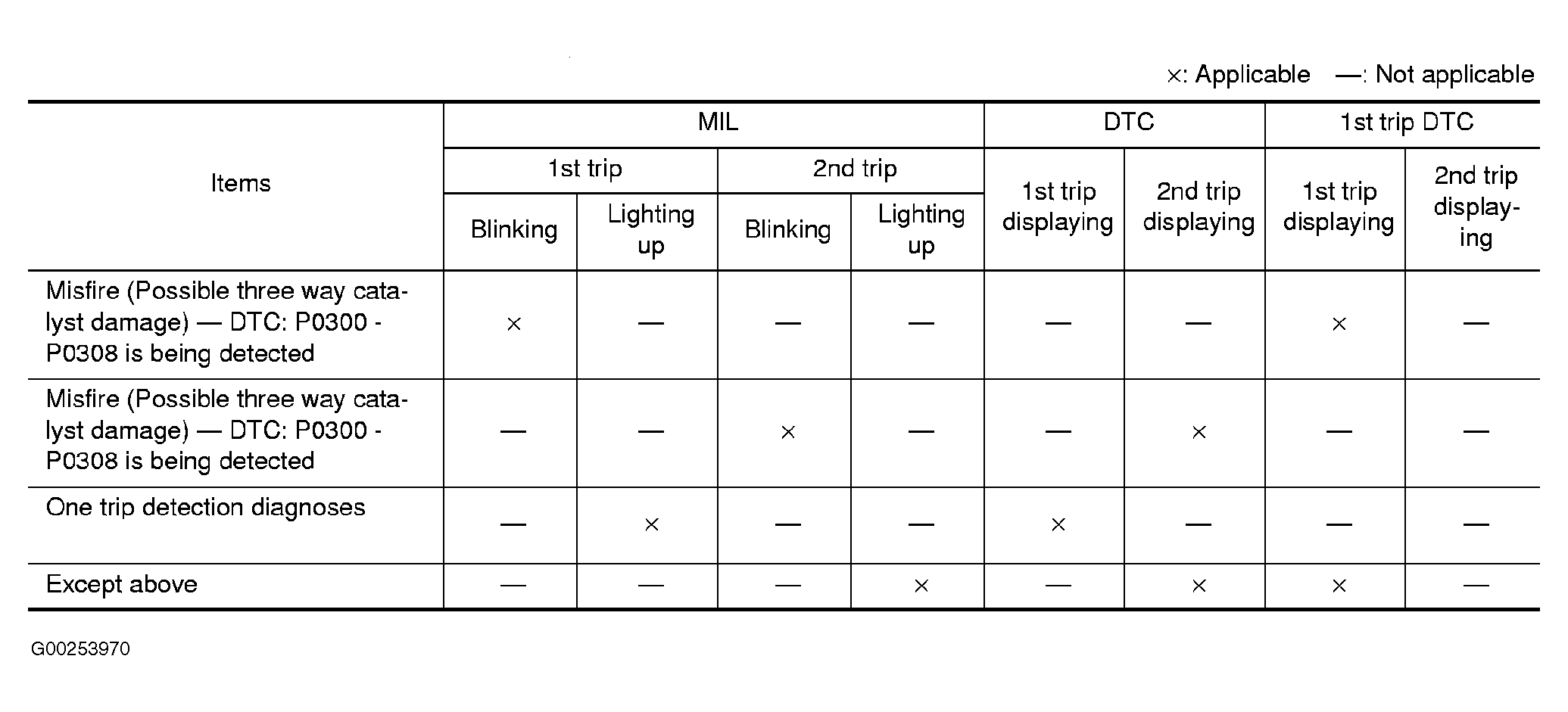

The Malfunction Indicator Lamp (MIL) on the instrument panel lights up when the same malfunction is detected in 2 consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode. When a malfunction is detected for the 1st time, 1st trip DTC and 1st trip Freeze Frame data are stored in the ECM memory. The MIL will not light up at this stage. If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in the ECM memory, and the MIL lights up. The MIL lights up at the same time when the DTC is stored. The "Trip" in the "Two Trip Detection Logic" means a driving mode in which self-diagnosis is performed during vehicle operation. Specific on board diagnostic items will cause the ECM to light up or blink the MIL, and store DTC and Freeze Frame data, even in the 1st trip, as shown in Fig 1 .
