Using a CCK Gauge

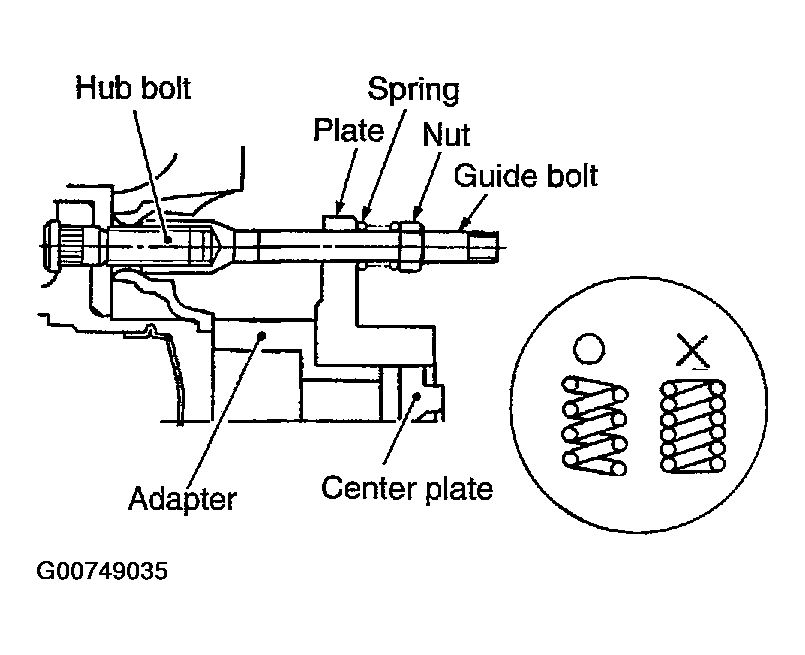

- Remove wheel nuts (3), and install a guide bolt (special service tool) to hub bolt.
- Screw adapter (special service tool) into plate body (special service tool) until it contacts body tightly.
- Screw center plate (special service tool) into plate body (special service tool).
- Insert plate (special service tool) on guide bolt (special service tool). Put spring in, and then evenly screw in guide bolt nut (special service tool). When fastening guide bolt nut, do not completely compress spring.
Courtesy of NISSAN MOTOR CO., U.S.A.

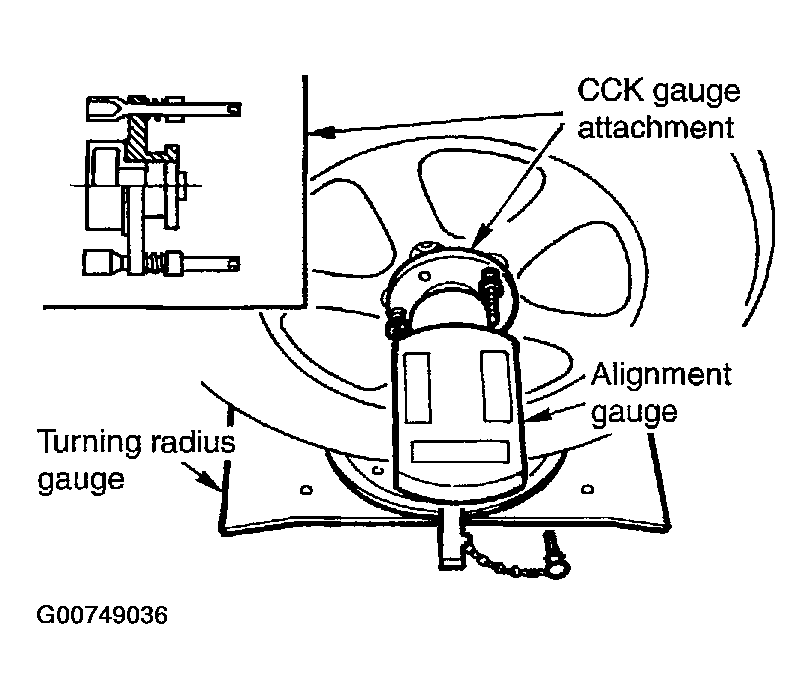

- Place the dent of alignment gauge onto the projection of center plate (special service tool) and tightly contact them to measure.
- Standard value
- Camber, caster, kingpin inclination angles: Refer to SPECIFICATIONS
.
CAUTION:
- If camber, caster, or kingpin inclination angle is outside the standard, check front suspension parts for wear and damage, and replace suspect parts if necessary.
- King pin inclination angle is reference value, no inspection is required.
Courtesy of NISSAN MOTOR CO., U.S.A.
