Clutch And Band Chart

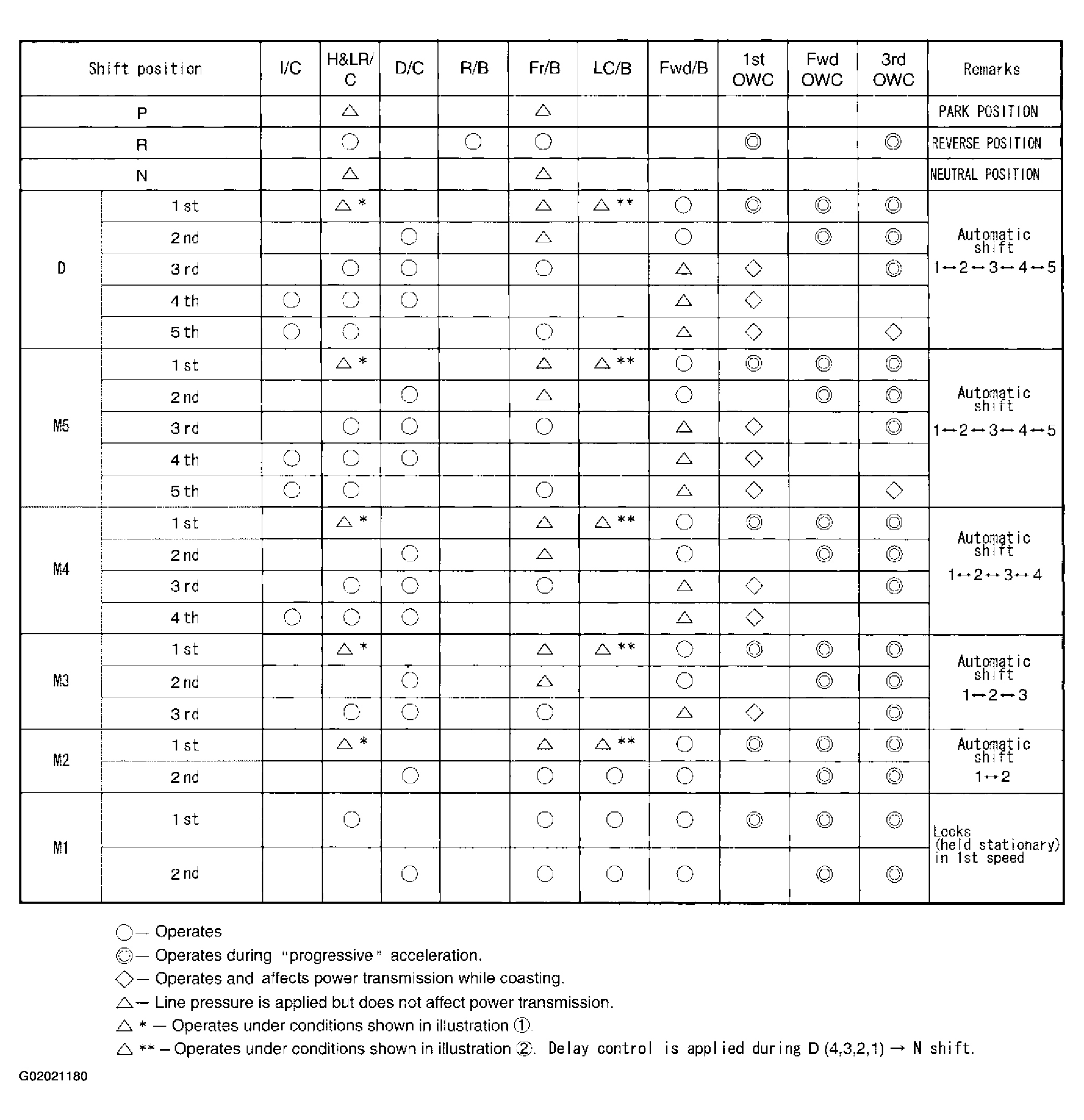

Fig 1: Clutch And Band Chart
G02021180Courtesy of NISSAN MOTOR CO., U.S.A.

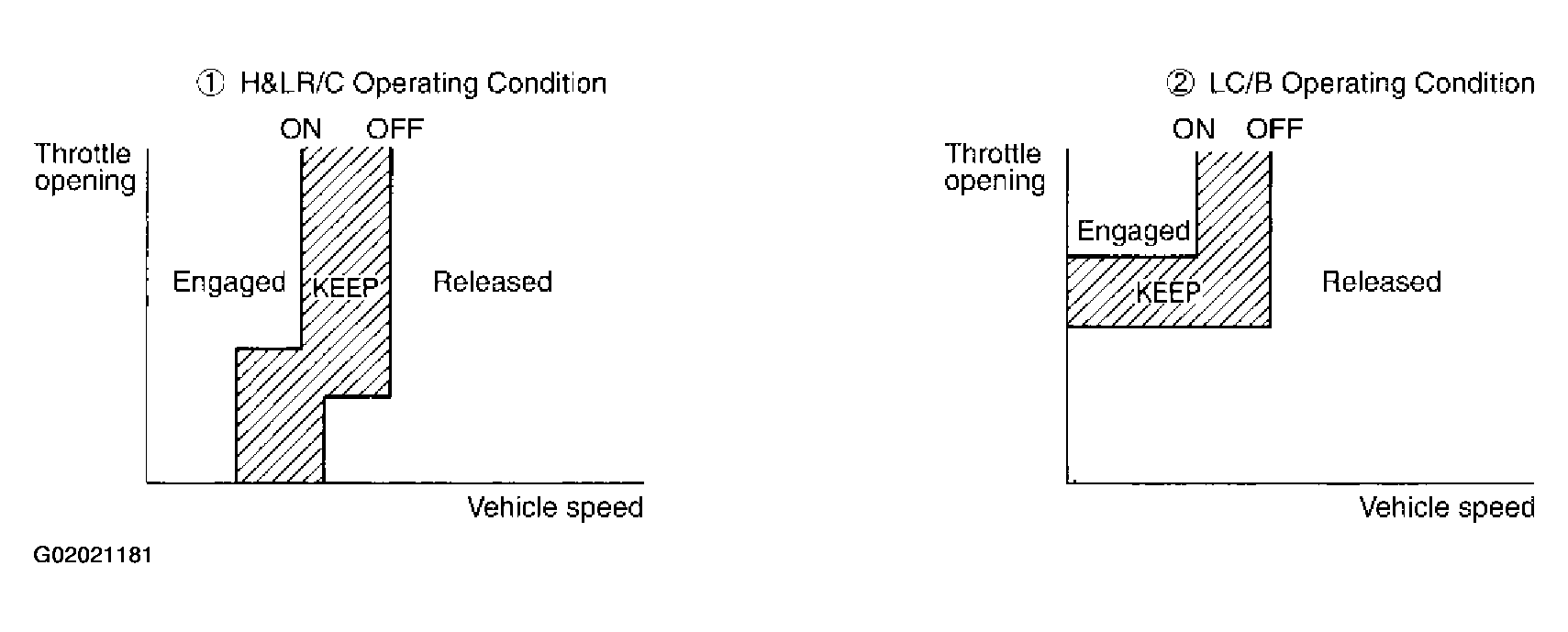

Fig 2: H AND LR/C, LC/B Operating Condition Graph
G02021181Courtesy of NISSAN MOTOR CO., U.S.A.
