Function Of Clutch And Brake

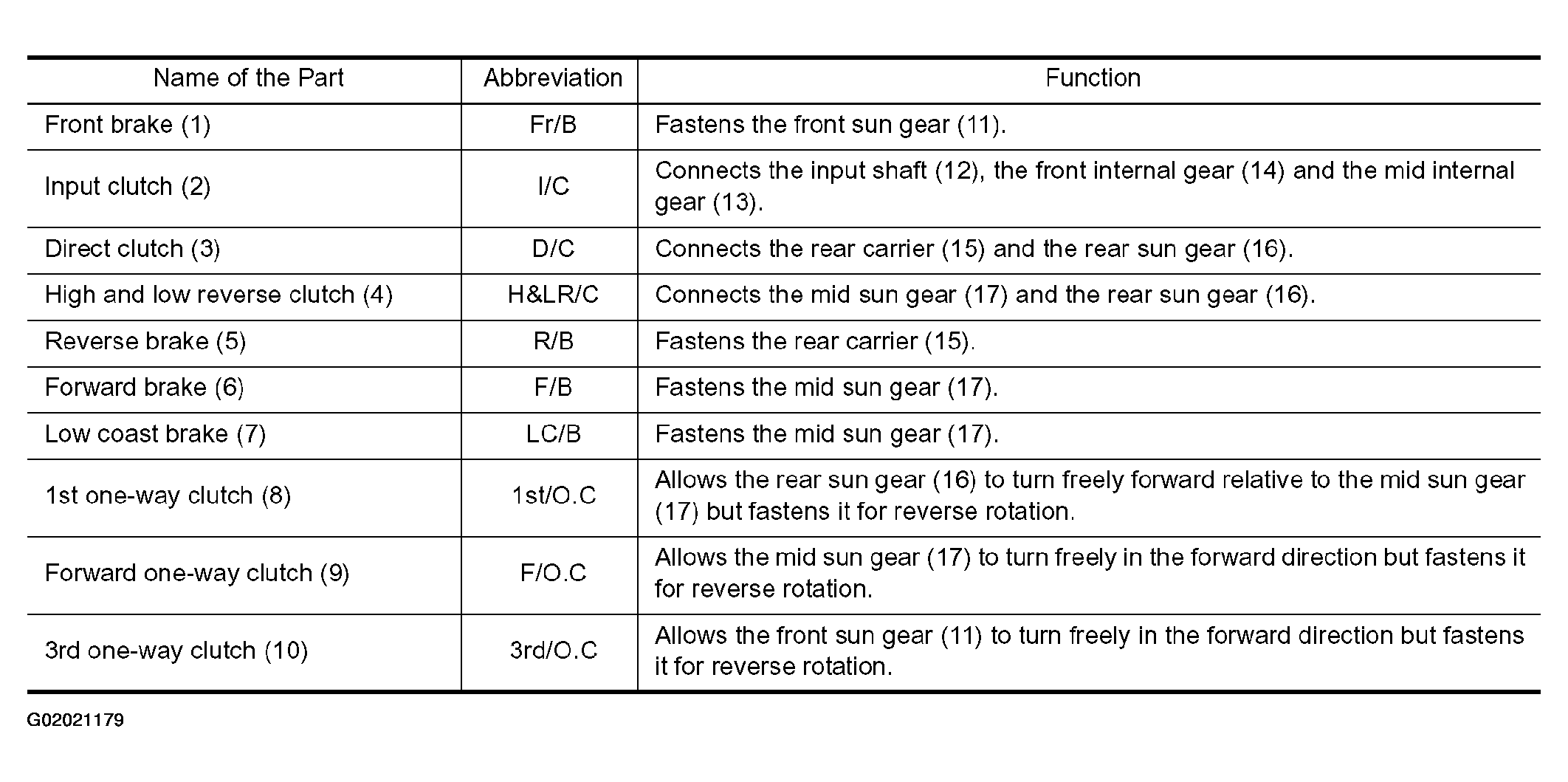

Fig 1: Clutch And Brake Function Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
