Shift Lock Solenoid

CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.

Check operation by applying battery voltage to the A/T device harness connector.

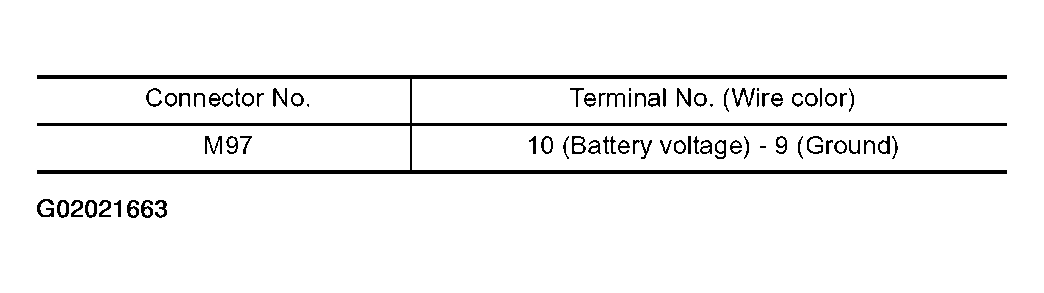

Fig 1: Connector Terminal Voltage Table

Courtesy of NISSAN MOTOR CO., U.S.A.

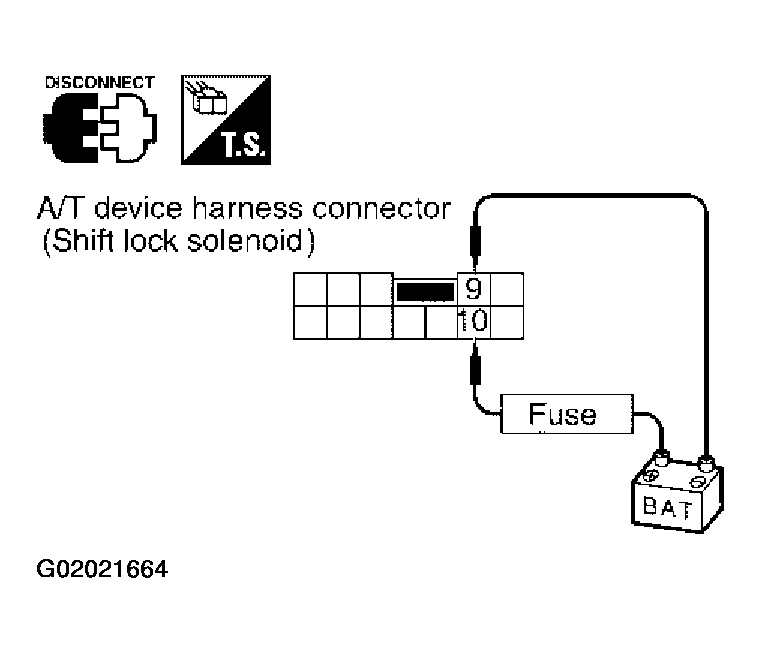

Fig 2: Inspecting Shift Lock Solenoid

Courtesy of NISSAN MOTOR CO., U.S.A.
