Total End Play

Measure clearance between front sun gear and needle bearing for oil pump cover.

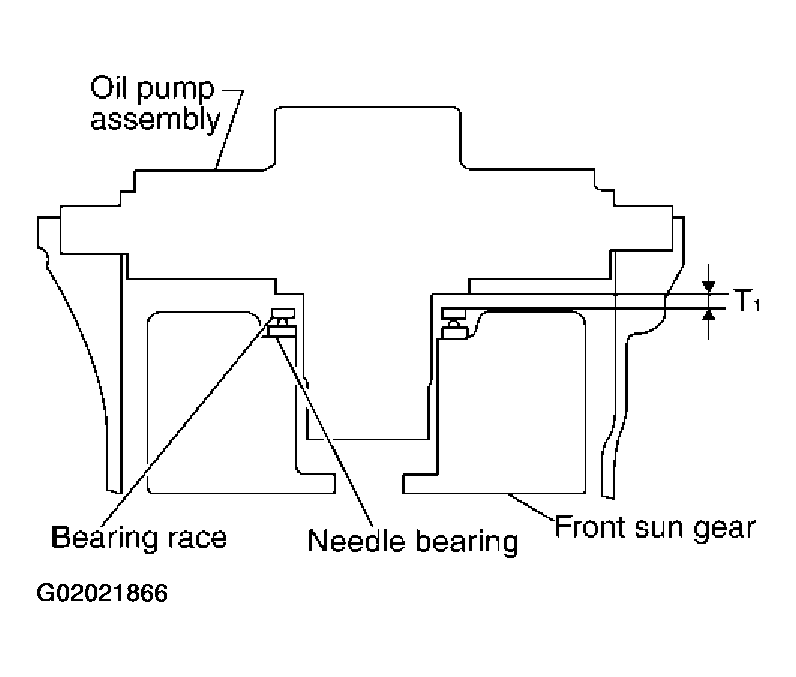

Fig 1: Measuring Clearance Between Front Sun Gear & Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Select proper thickness of bearing race so that end play is within specifications.

Measure dimensions "K" and "L" and then calculate dimension "J".

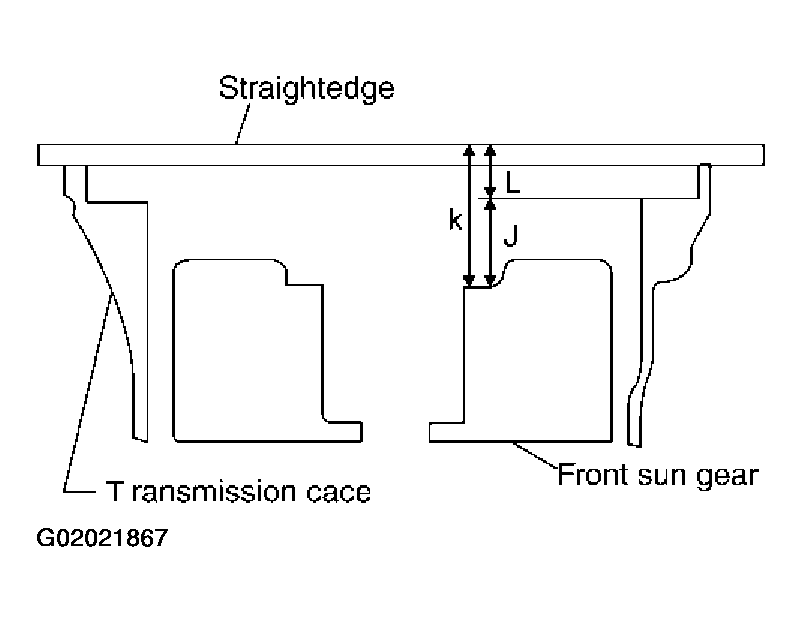

Fig 2: Measuring Dimensions "K" & "L" & Calculating Dimension "J"
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Measure dimension "K".

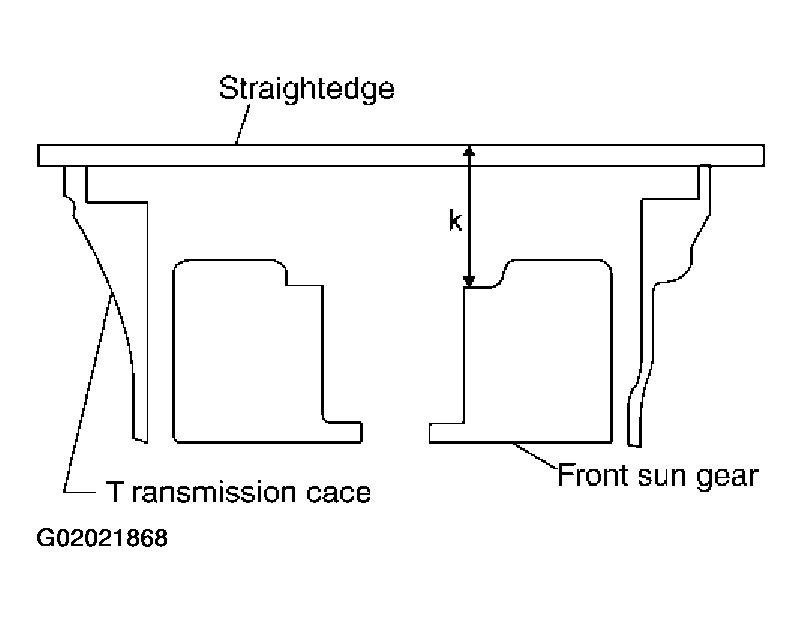

  Fig 3: Measuring Dimension "K"
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure dimension "L".

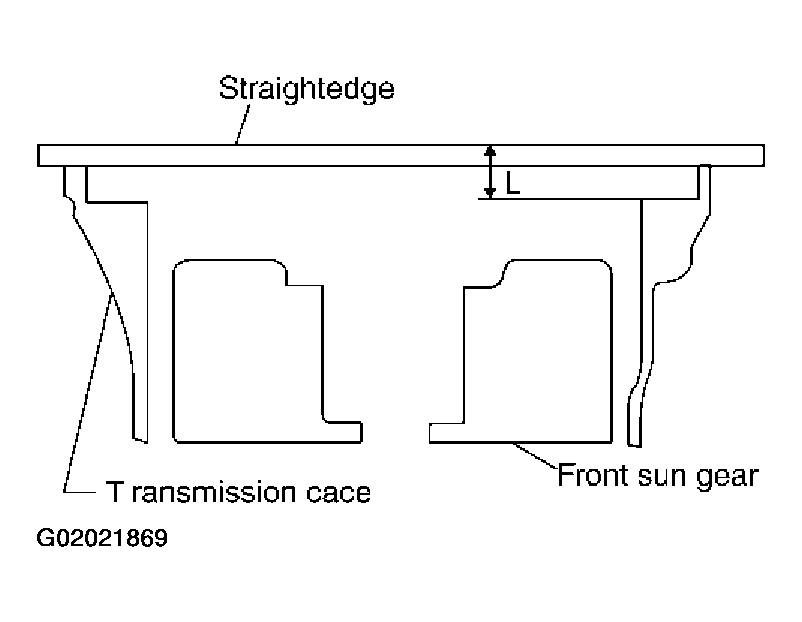

  Fig 4: Measuring Dimension "L"
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Calculate dimension "J".
  1. "J": Distance between oil pump fitting surface of transmission case and needle bearing mating surface of front sun gear.
    J = K - L
Measure dimensions "M1" and "M2" and then calculate dimension "M".

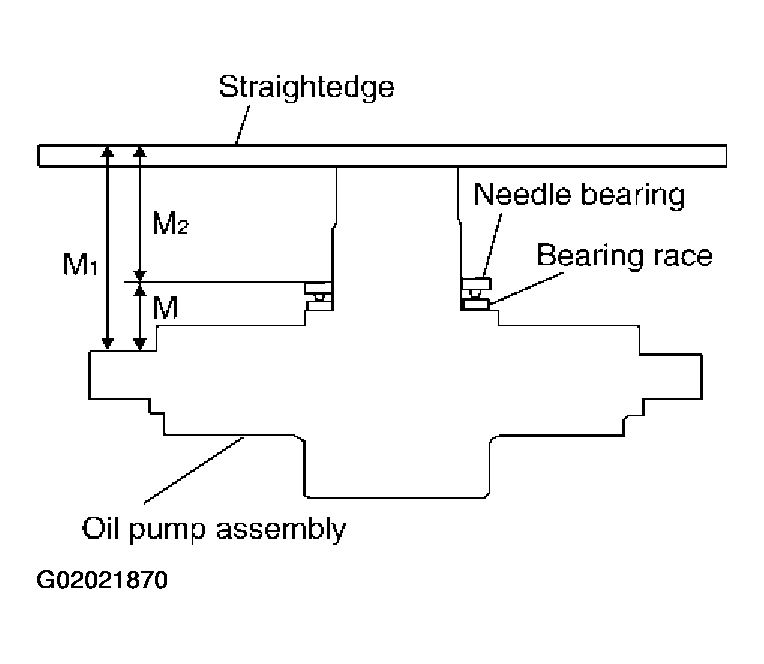

Fig 5: Measuring Dimensions "M1" & "M2"
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Place bearing race and needle bearing on oil pump assembly.

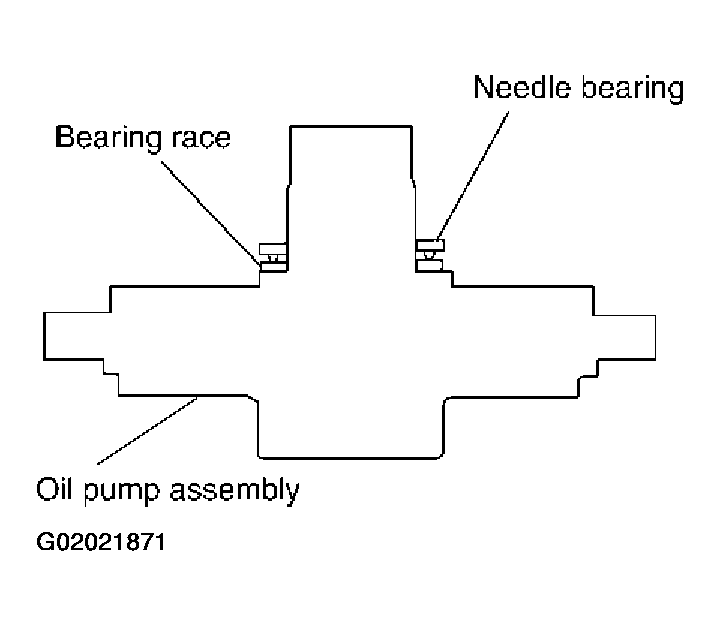

  Fig 6: Placing Bearing Race & Needle Bearing On Oil Pump Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Measure thickness of straightedge "M1 ".

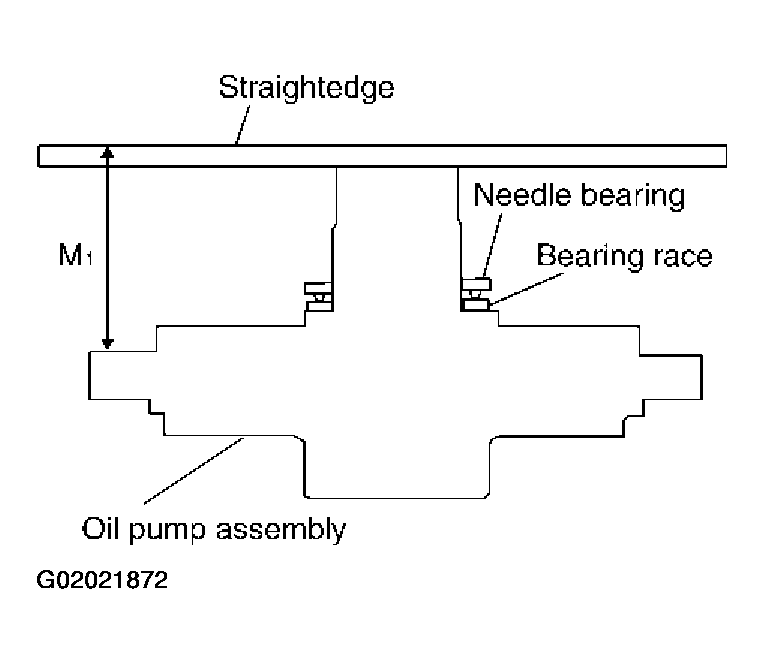

  Fig 7: Measuring Thickness Of Straightedge "M1"
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Measure thickness of straightedge "M2 ".

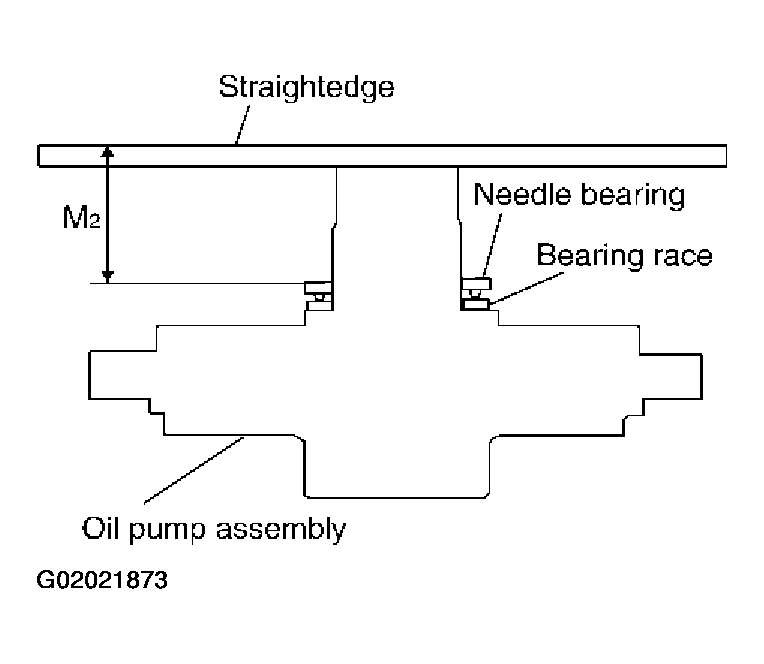

  Fig 8: Measuring Thickness Of Straightedge "M2"
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Calculate dimension "M".
  1. "M": Distance between trans mission case fitting surface of oil pump and needle bearing on oil pump.
    M = M1 - M2
Adjust total end play "T1 ".
1. T1 = J - M
2. Total end play "T1 ":
3. 0.25 - 0.55 mm (0.0098 - 0.0217 in)
- Select proper thickness of bearing race so that total end play is within specifications.
  Bearing races: Refer to " BEARING RACE FOR ADJUSTING TOTAL END PLAY ".
