DTC P1710: A/T Fluid Temperature Sensor Circuit
>>
CONSULT-II Reference Value
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CONSULT-II Reference Value

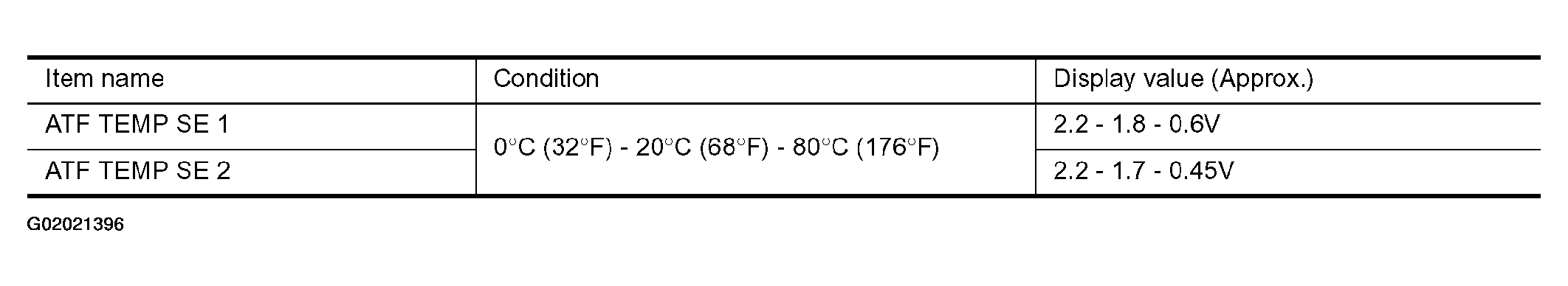

Fig 1: Consult II Reference Value Chart (DTC P1710)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
