CONSULT-II Reference Value in Data Monitor Mode

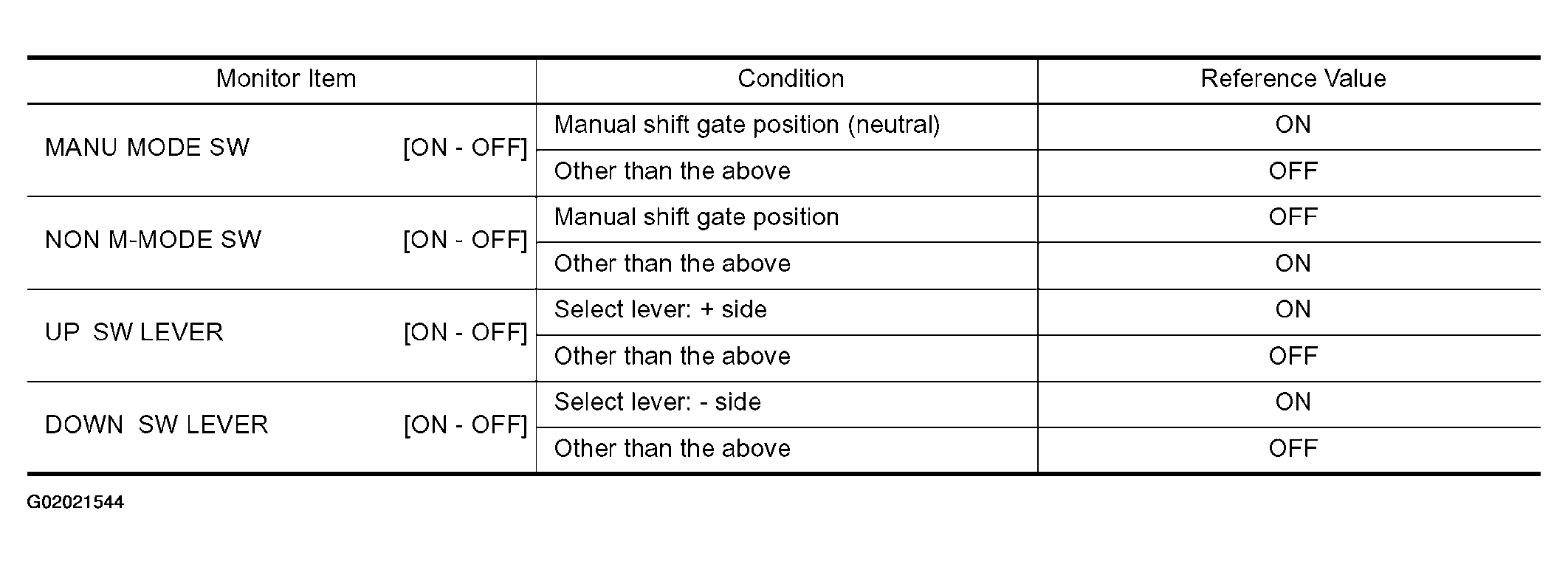

Fig 1: DTC P1815 Reference Value Table Data Monitor Mode (CONSULT-II)
G02021544Courtesy of NISSAN MOTOR CO., U.S.A.
