Manual Mode Switch

Check continuity between terminals.

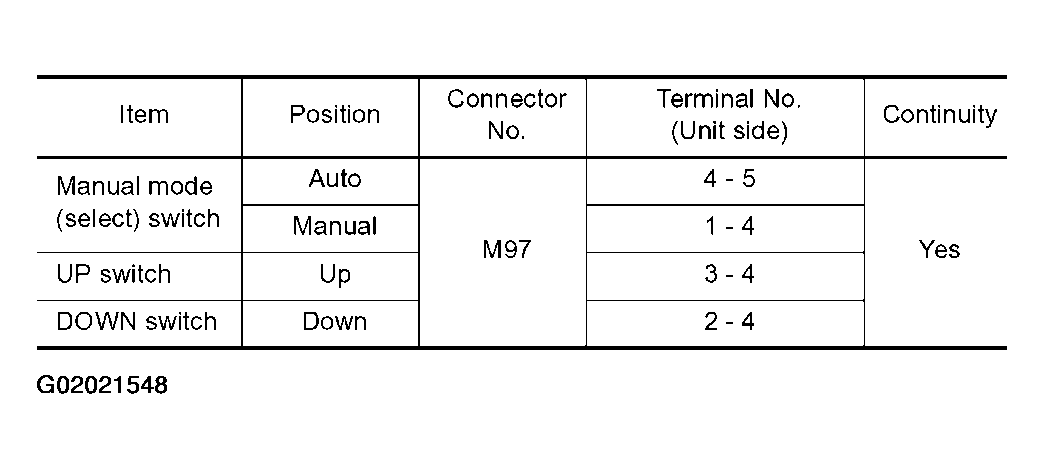

Fig 1: DTC P1815 Connector Terminal Continuity Table
G02021548Courtesy of NISSAN MOTOR CO., U.S.A.

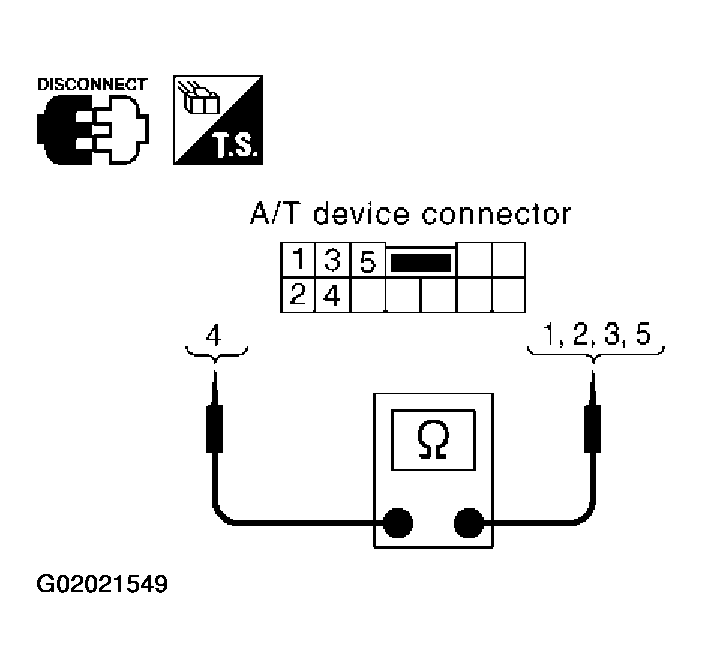

Fig 2: Inspecting Manual Mode Switch
G02021549Courtesy of NISSAN MOTOR CO., U.S.A.
