With Consult-II

  1. Turn ignition switch to "ON" position. (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  3. Start engine.
  4. Move selector lever to "M" position for at least 2 consecutive seconds.
  5. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

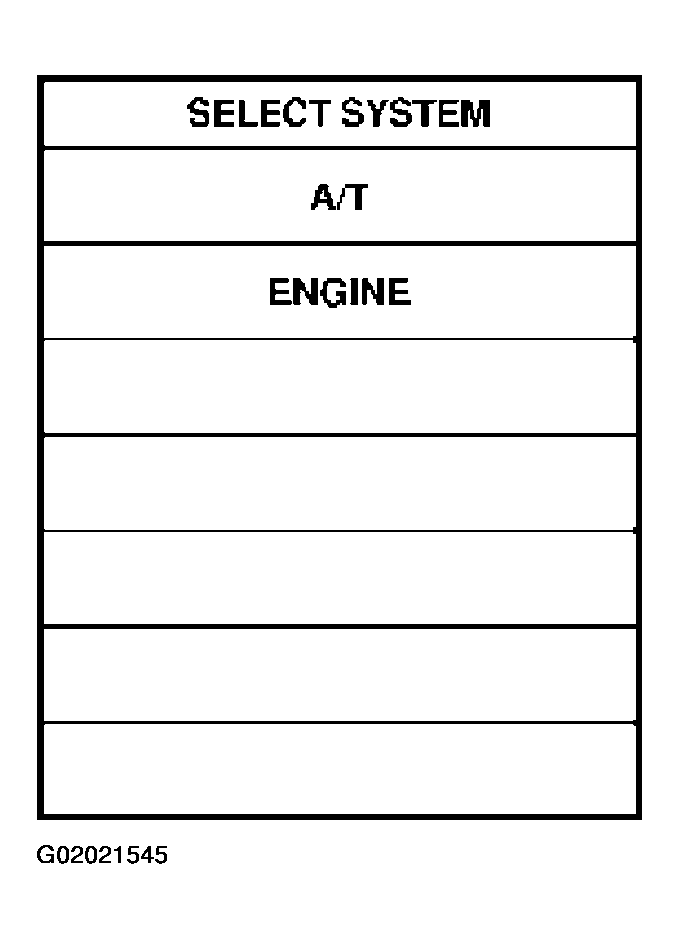

    Fig 1: DTC P1815 "SELECT SYSTEM" Display On CONSULT-II
    G02021545Courtesy of NISSAN MOTOR CO., U.S.A.
