Oil Pump: Assembly

    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

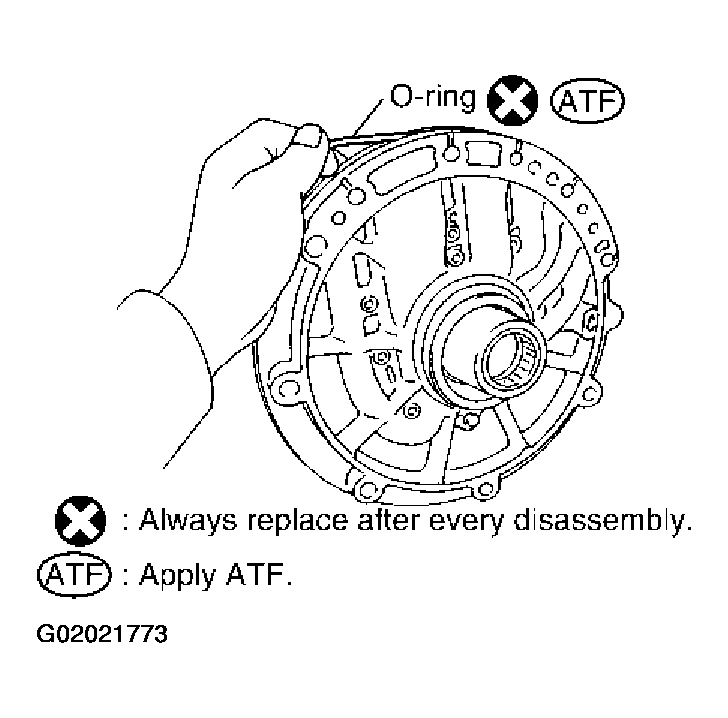

    Fig 1: Installing O-Ring In Oil Pump Cover
    G02021773Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Install O-ring in oil pump cover.
    2. CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

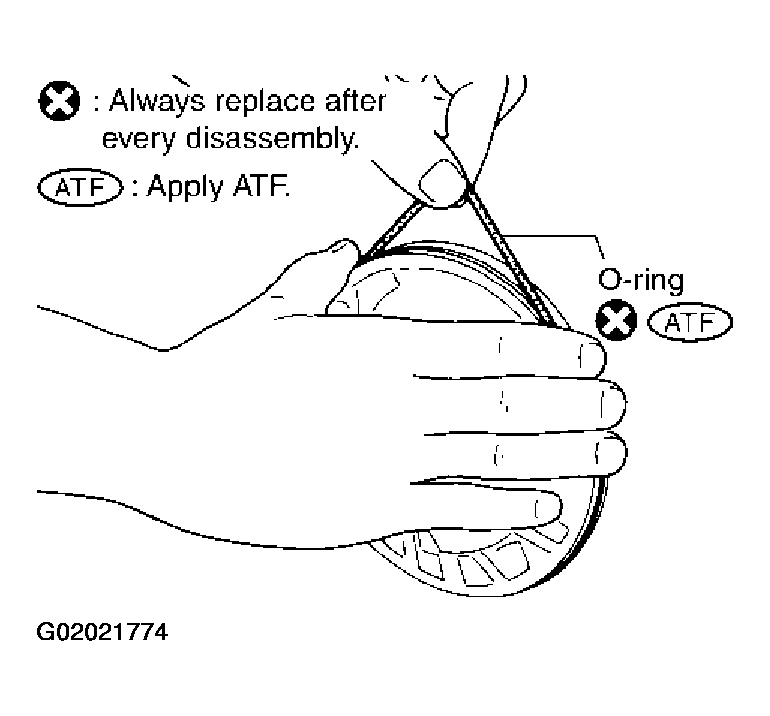

    Fig 2: Installing O-Ring In Oil Pump Housing
    G02021774Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install O-ring in oil pump housing.
    3. CAUTION:
    • Do not reuse oil seal.
    • Apply ATF to oil seal.

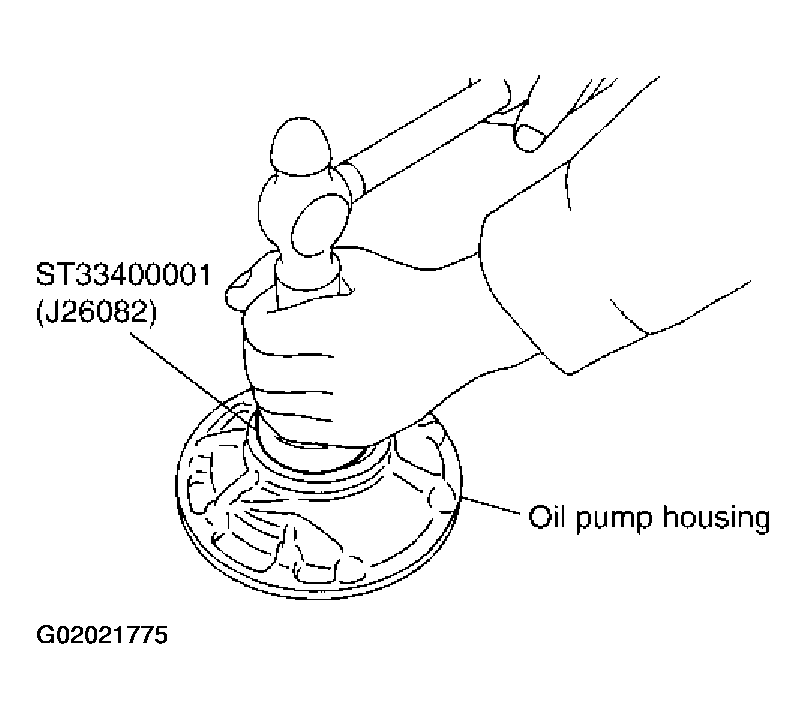

    Fig 3: Installing Oil Seal In Oil Pump Housing
    G02021775Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install oil seal in oil pump housing.
  4. Install oil pump housing in oil pump cover.
    1. 9.0 N.m (0.92 kg-m, 80 in-lb.)

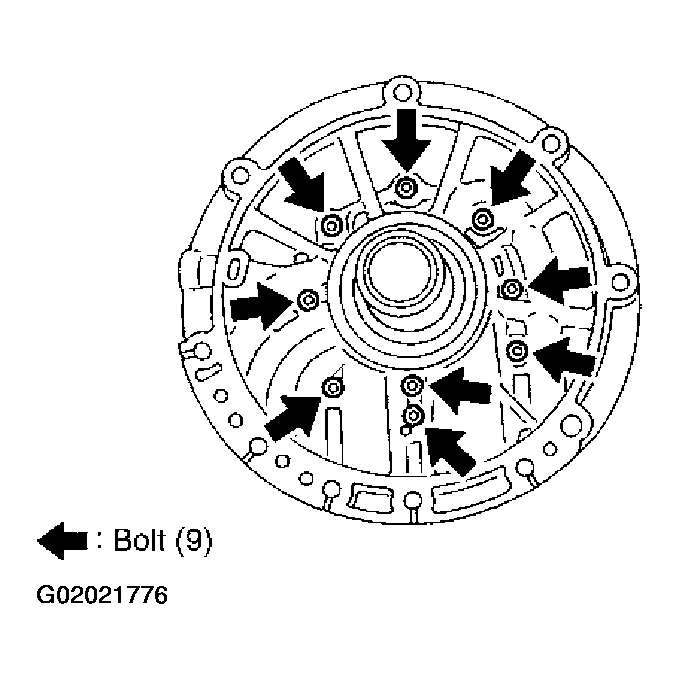

    Fig 4: Installing Oil Pump Housing
    G02021776Courtesy of NISSAN MOTOR CO., U.S.A.
