A/T Fluid Temperature Sensor

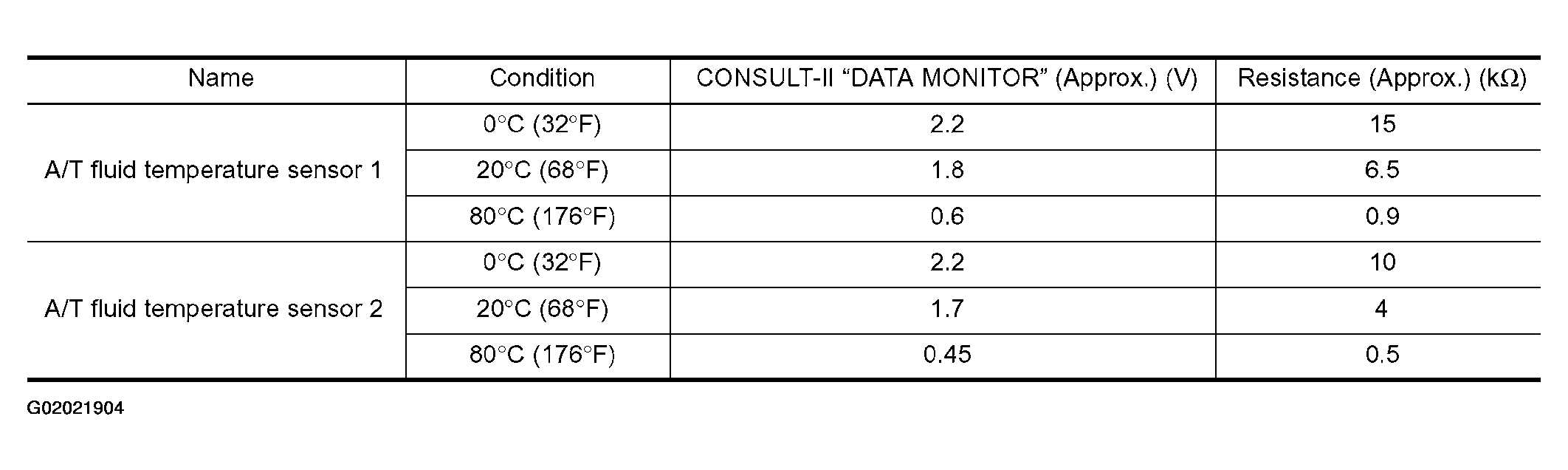

Fig 1: A/T Fluid Temperature Sensor Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
