Solenoid Valves

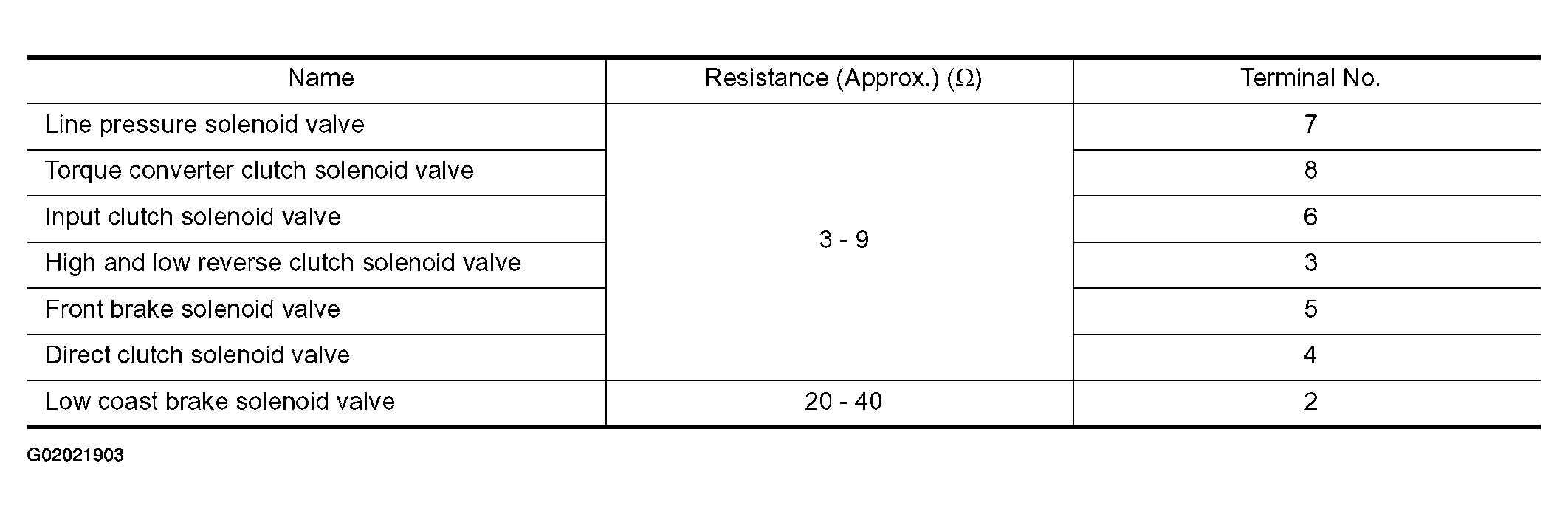

Fig 1: Solenoid Valves Specifications

G02021903

Courtesy of NISSAN MOTOR CO., U.S.A.
