TCM Inspection Table

Data are reference value and are measured between each terminal and ground.

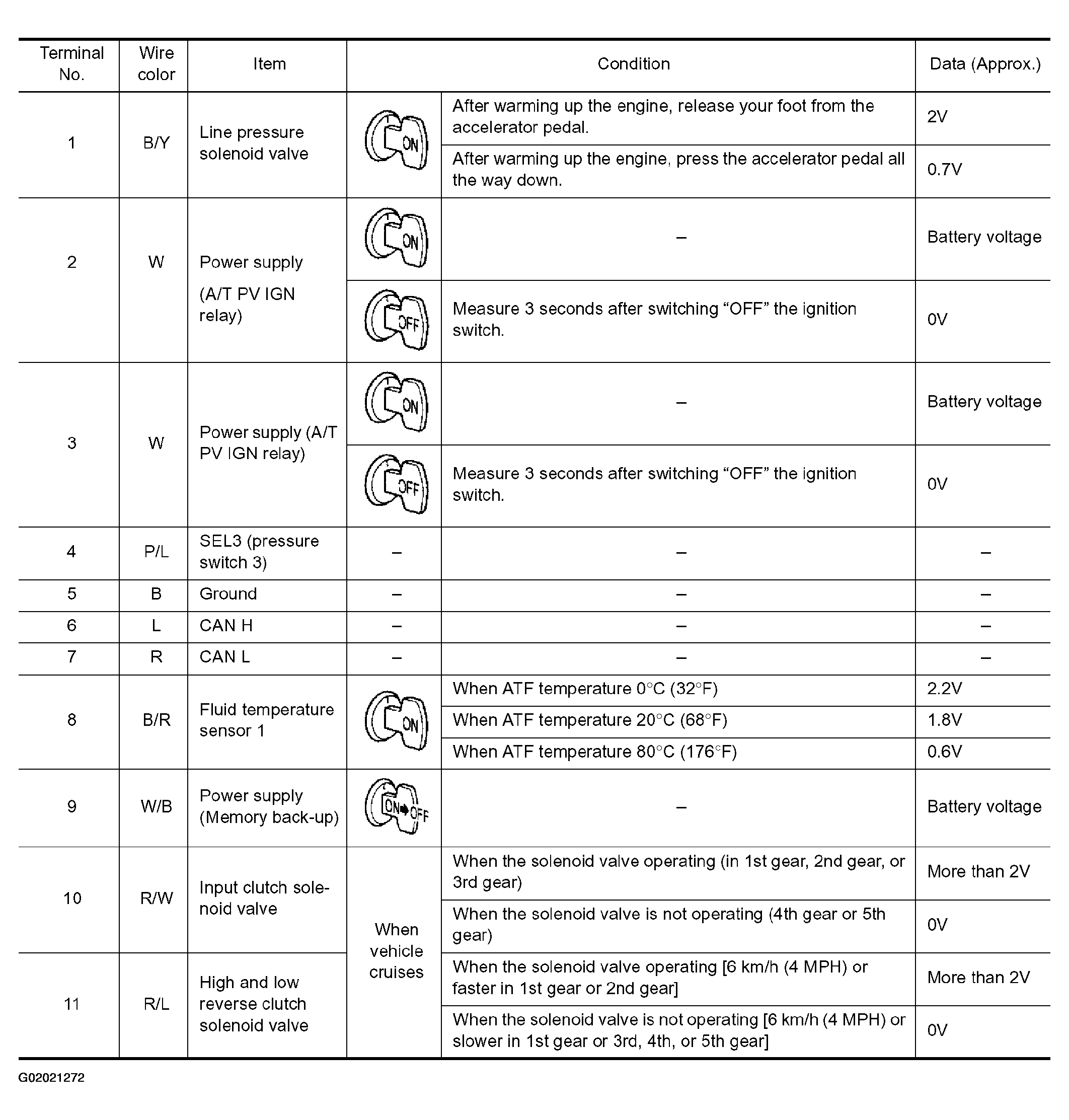

Fig 1: TCM Inspection Chart (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

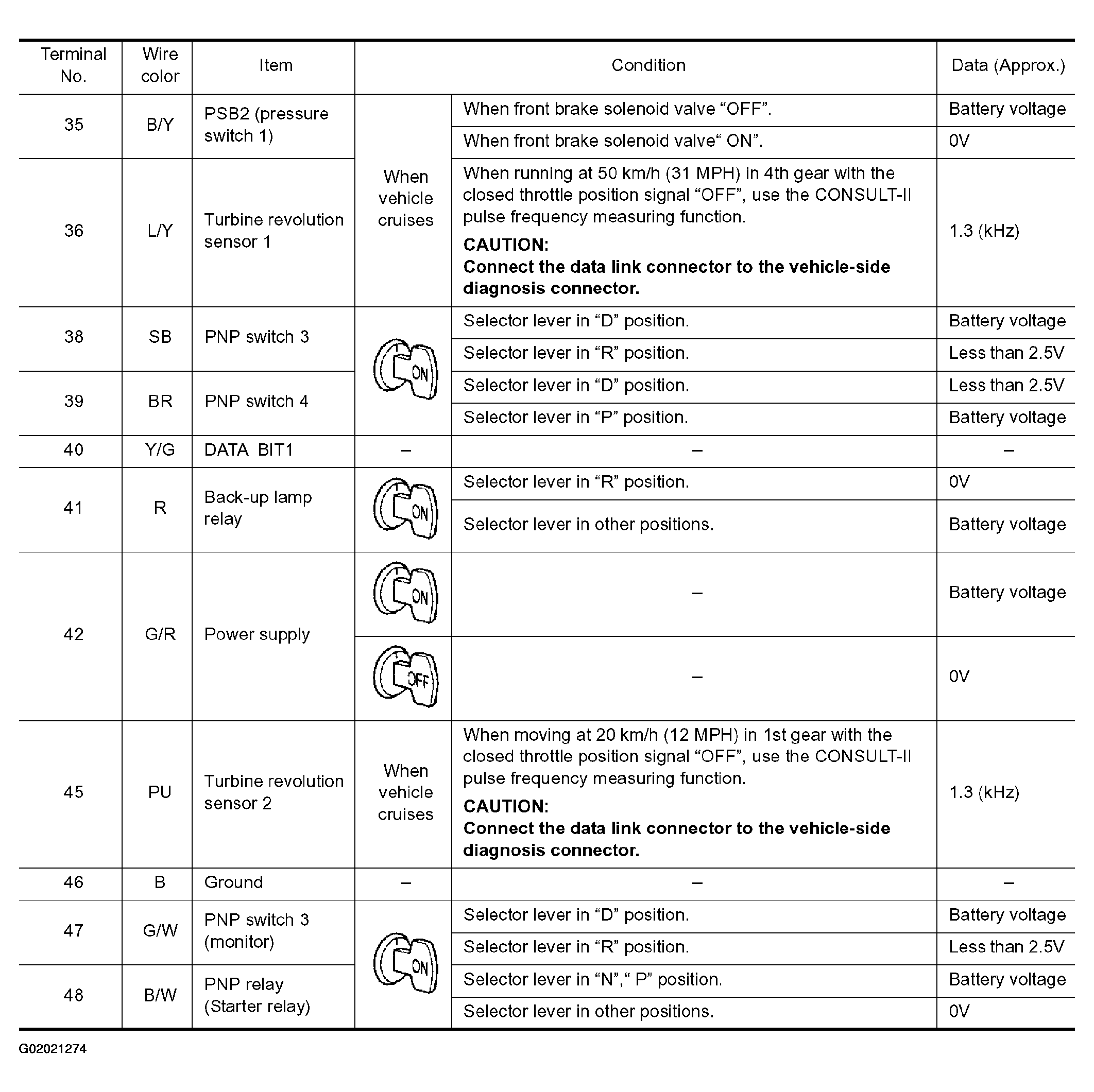

Fig 2: TCM Inspection Chart (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

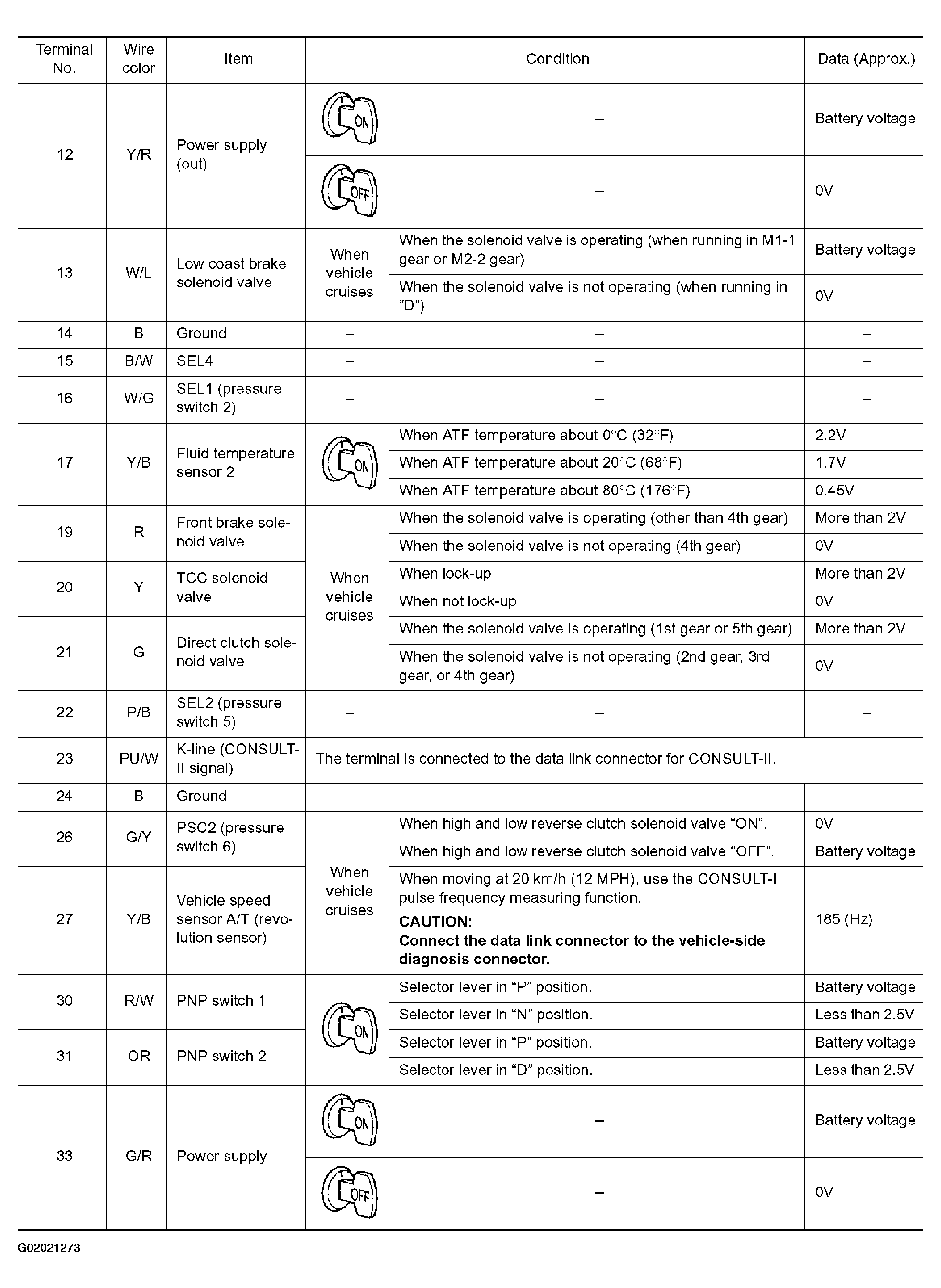

Fig 3: TCM Inspection Chart (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
