Consult-II Basic Operation Procedure

  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn the ignition switch ON.

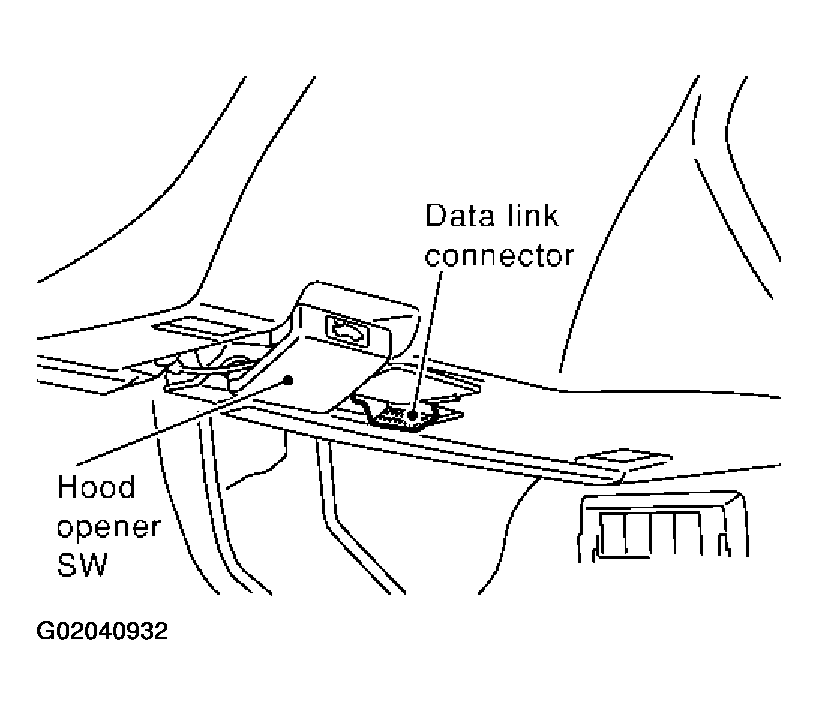

    Fig 1: Locating Data Link Connector
    G02040932Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

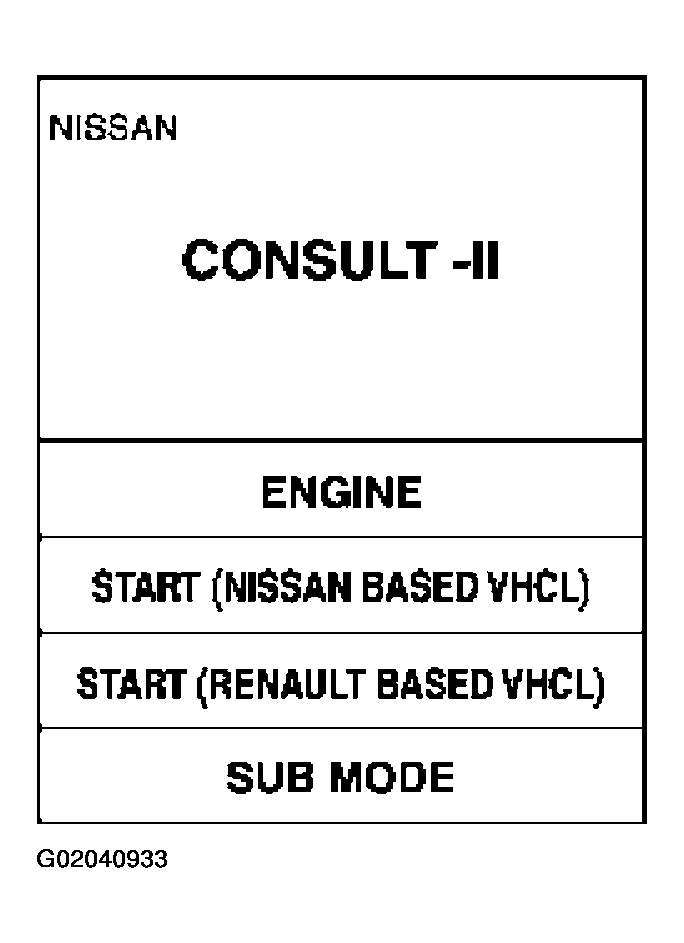

    Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
    G02040933Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "IVMS".

    If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

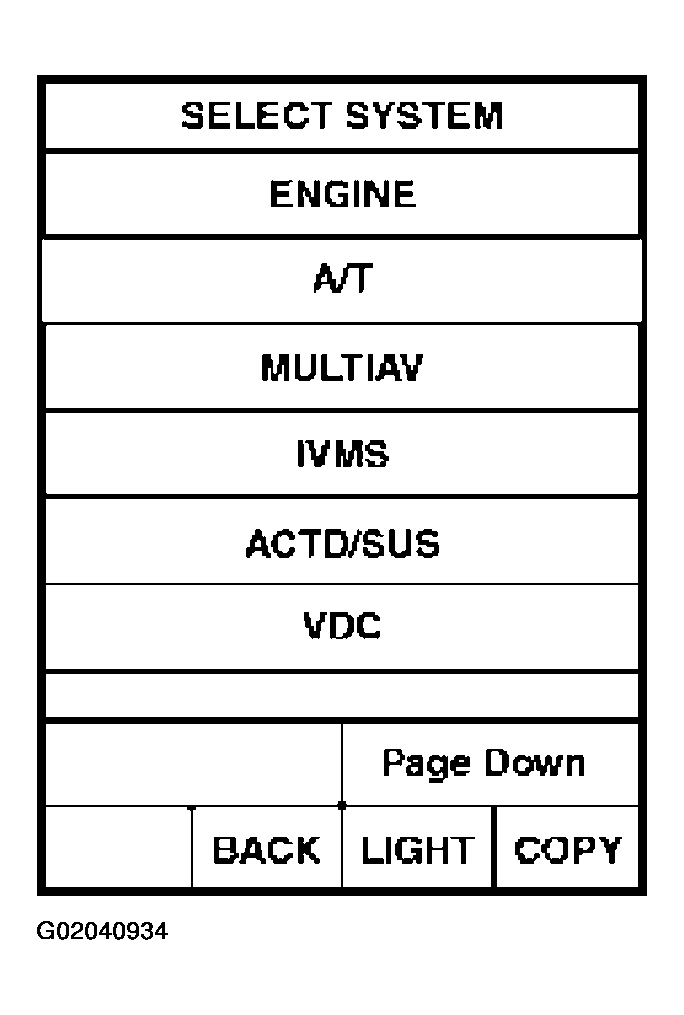

    Fig 3: CONSULT-II Display - IVMS
    G02040934Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".

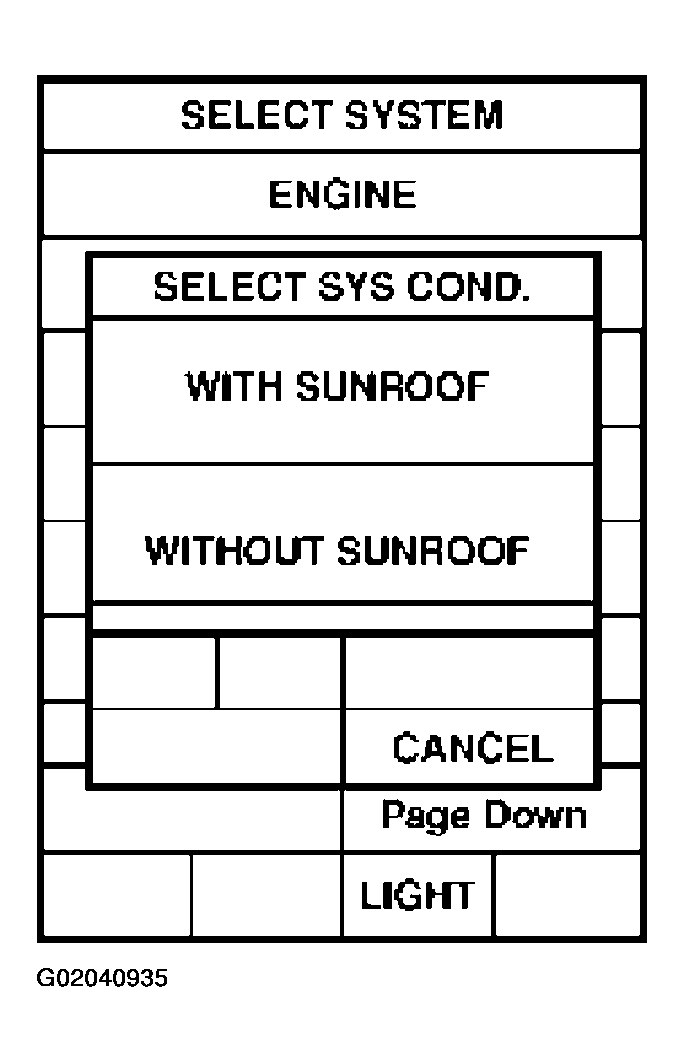

    Fig 4: CONSULT-II Display - WITH SUNROOF Or WITHOUT SUNROOF
    G02040935Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
