Fail-Safe Function: Notes

The fail-safe function operates to regulate solenoid valve operation in response to engine speed, thereby maintaining the required steering force.

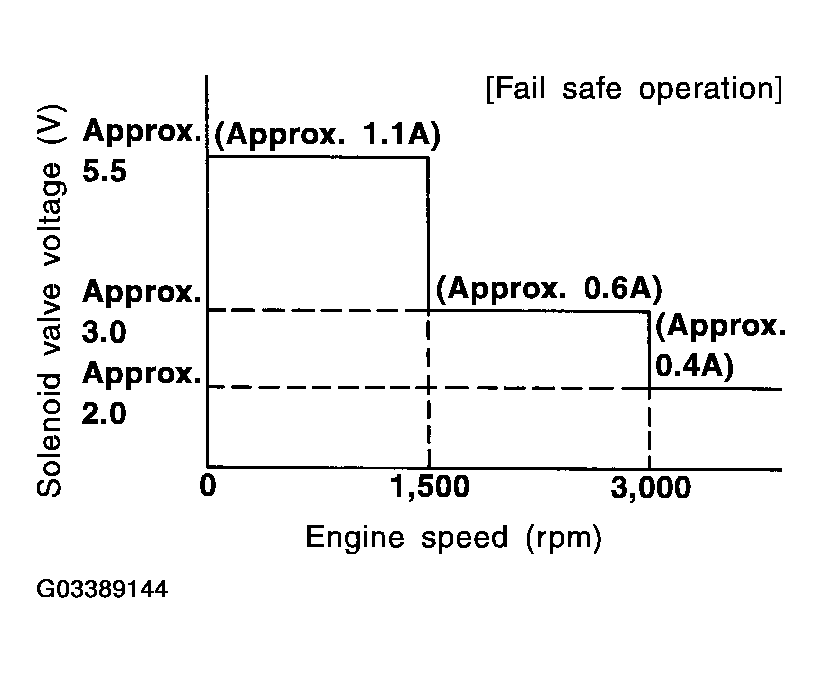

Fig 1: Voltage To RPM Solenoid Valve Graph (Fail-Safe)

Courtesy of NISSAN MOTOR CO., U.S.A.
