Terminals and Reference Value for BCM

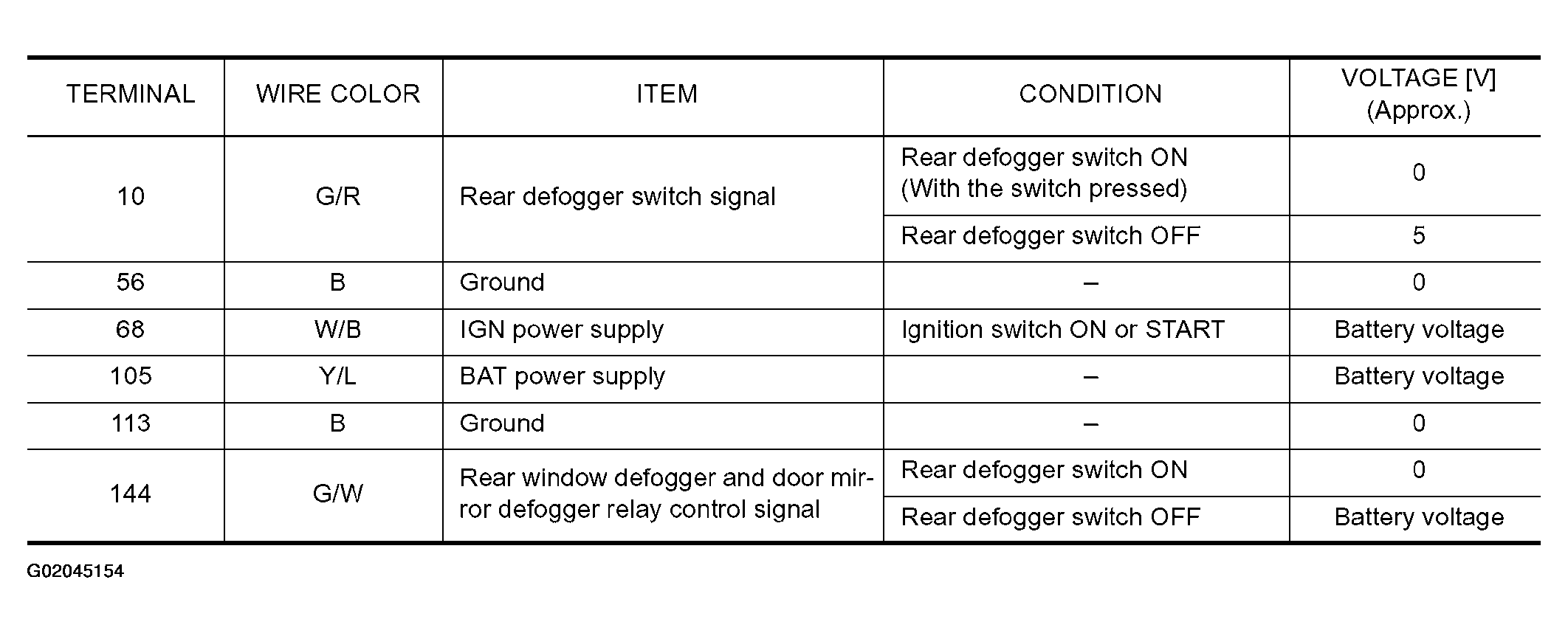

Fig 1: Terminals And Reference Value Chart (BCM)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
