Removal and Installation: Removal

  1. Install center console. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove harness connector.
  3. Remove installation bolts. Remove yaw rate/side G-sensor.
    CAUTION: Do not drop or strike the yaw rate/side G-sensor, because it has little endurance to impact.

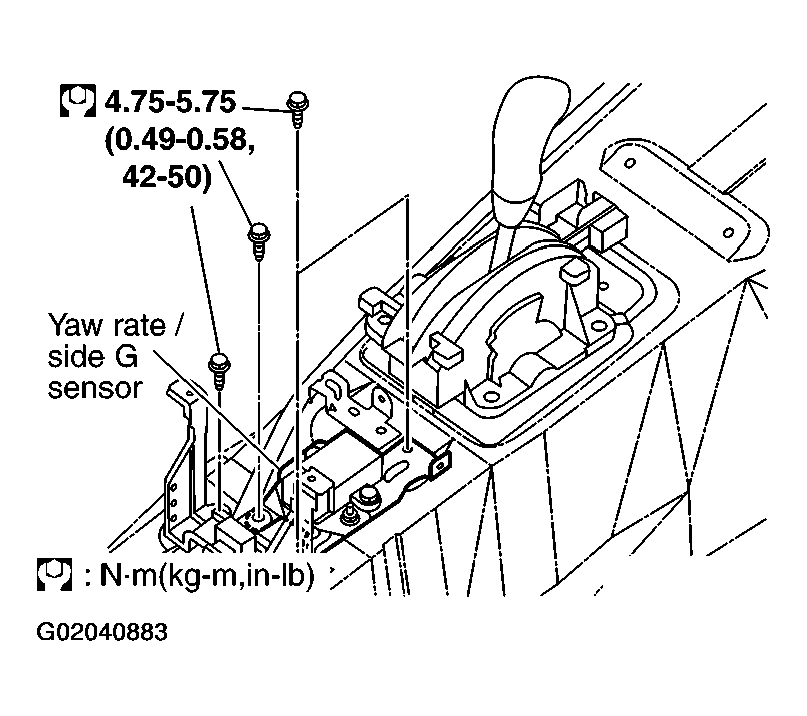

    Fig 1: Removing Installation Bolt And Yaw Rate/Side G-Sensor
    G02040883Courtesy of NISSAN MOTOR CO., U.S.A.
