ASCD Output

Touch "ON" and "OFF" on the screen. Check that ASCD output is as shown in table below.

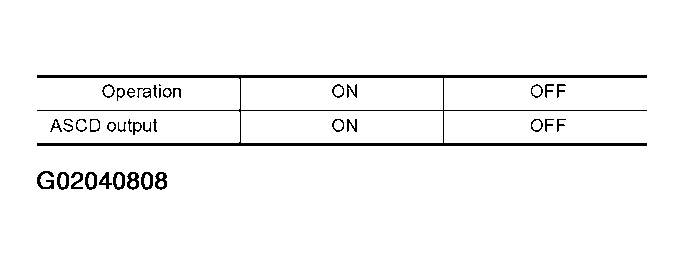

Fig 1: ASCD Output Operation Table
G02040808Courtesy of NISSAN MOTOR CO., U.S.A.
