Operation Procedure

CAUTION:
  • Do not perform active test while driving vehicle.
  • Make sure to completely bleed air from brake system.
  • Active test cannot be performed when ABS warning lamp is on.
  1. Connect CONSULT-II and CONSULT-II CONVERTER data link connector and start engine.
  2. Touch "START" on display.
  3. Touch "VDC" and "ACTIVE TEST".

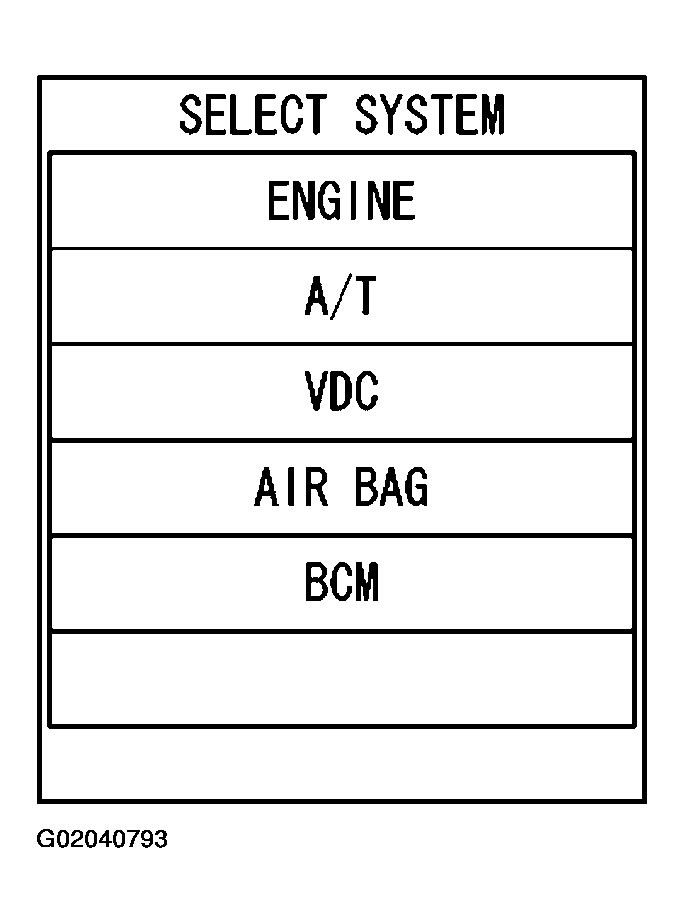

    Fig 1: Identifying Consult II Display Screen - VDC
    G02040793Courtesy of NISSAN MOTOR CO., U.S.A.

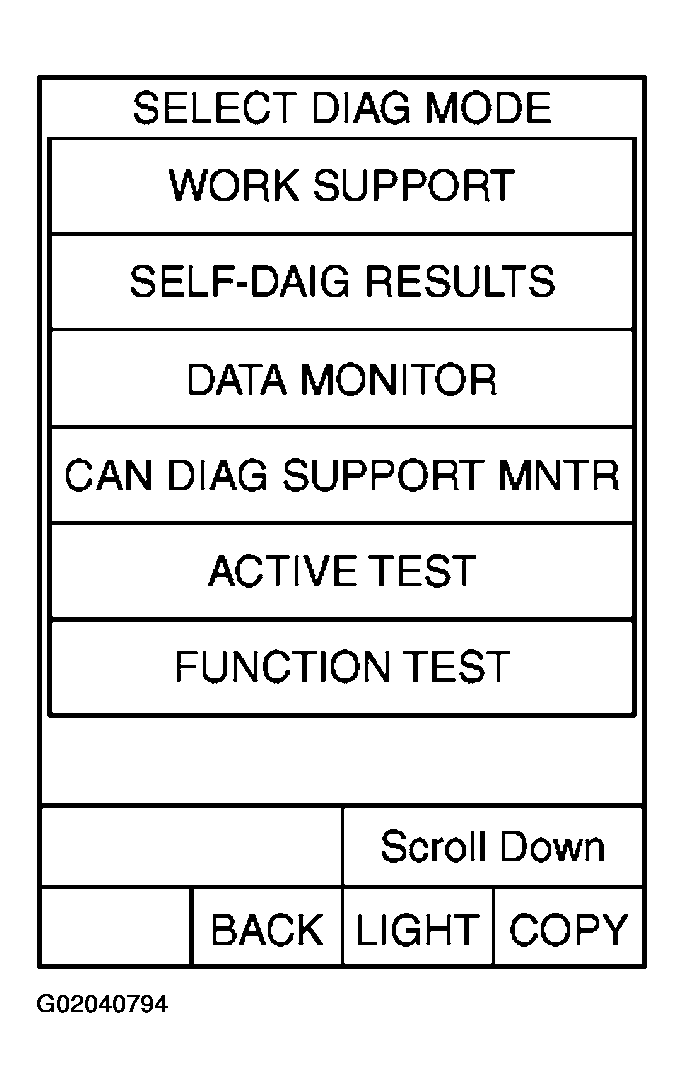

    Fig 2: Identifying Consult II Display Screen - ACTIVE TEST
    G02040794Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Test item selection screen is displayed.
  5. Touch necessary test item.

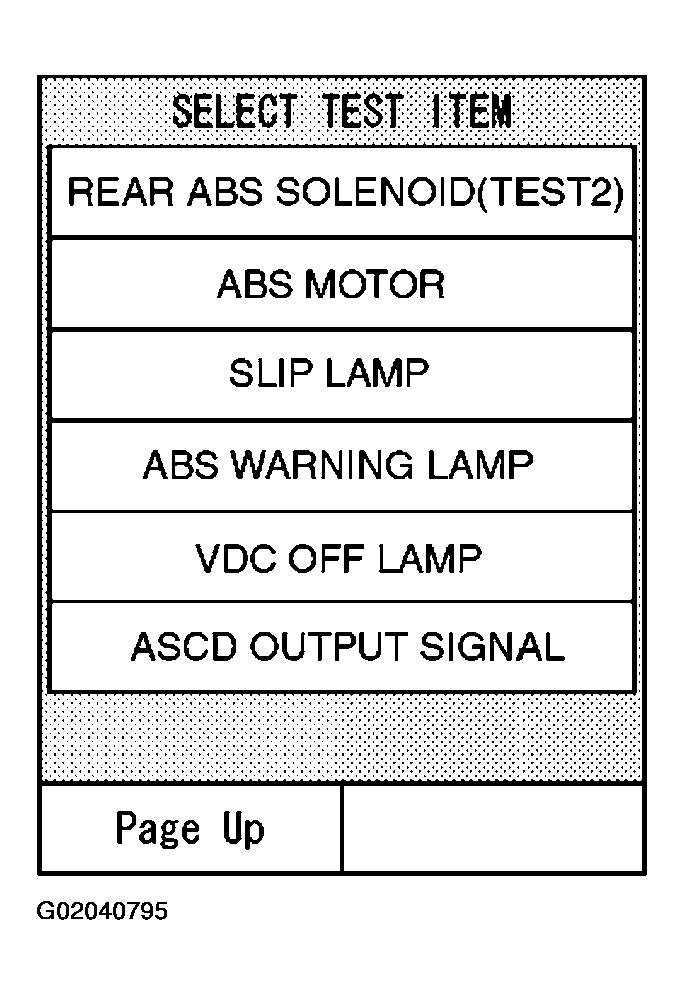

    Fig 3: Identifying Consult II Display Screen - SELECT TEST ITEM
    G02040795Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "START" with "MAIN SIGNALS" line inverted.

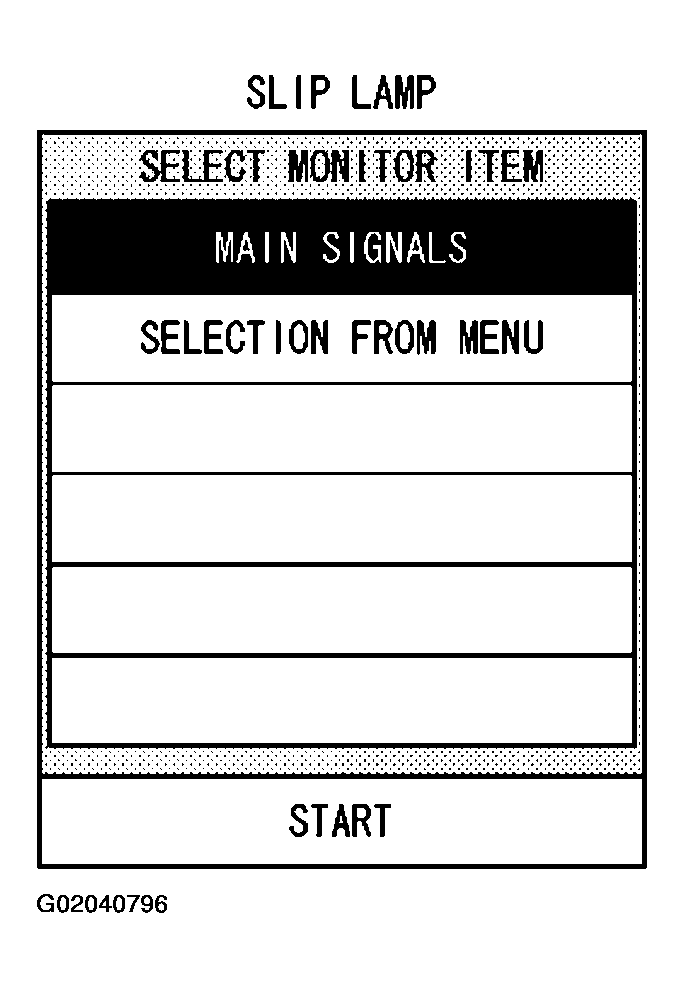

    Fig 4: Identifying Consult II Display Screen - MAIN SIGNALS
    G02040796Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Active test screen is displayed.

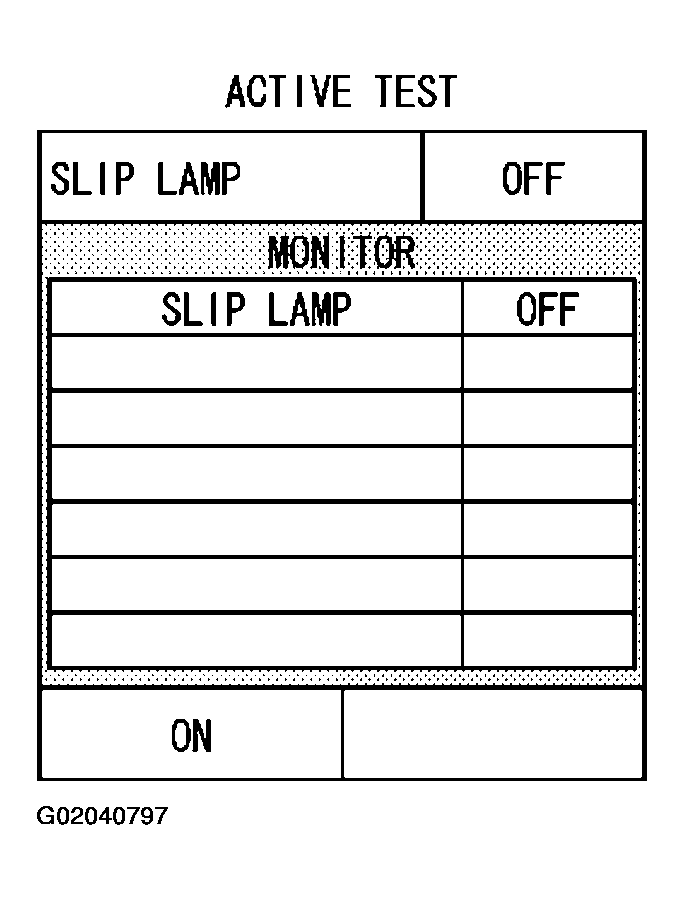

    Fig 5: Identifying Consult II Display Screen - ACTIVE TEST SCREEN
    G02040797Courtesy of NISSAN MOTOR CO., U.S.A.
