SLIP Indicator Lamp

Touch "ON" and "OFF" on the screen. Check that SLIP indicator lamp operates as shown in table below.

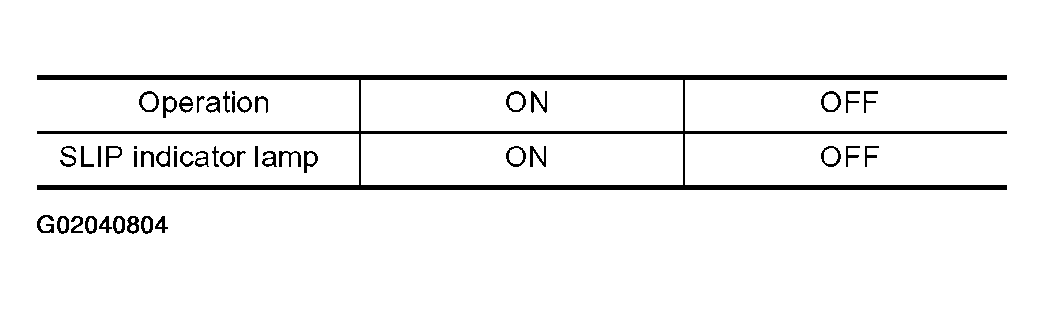

Fig 1: SLIP Indicator Lamp Operation Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If "OFF" is touched on screen during active test, VDC OFF indicator lamp, SLIP indicator lamp, and ABS warning lamp all turn ON for a moment. This is normal.

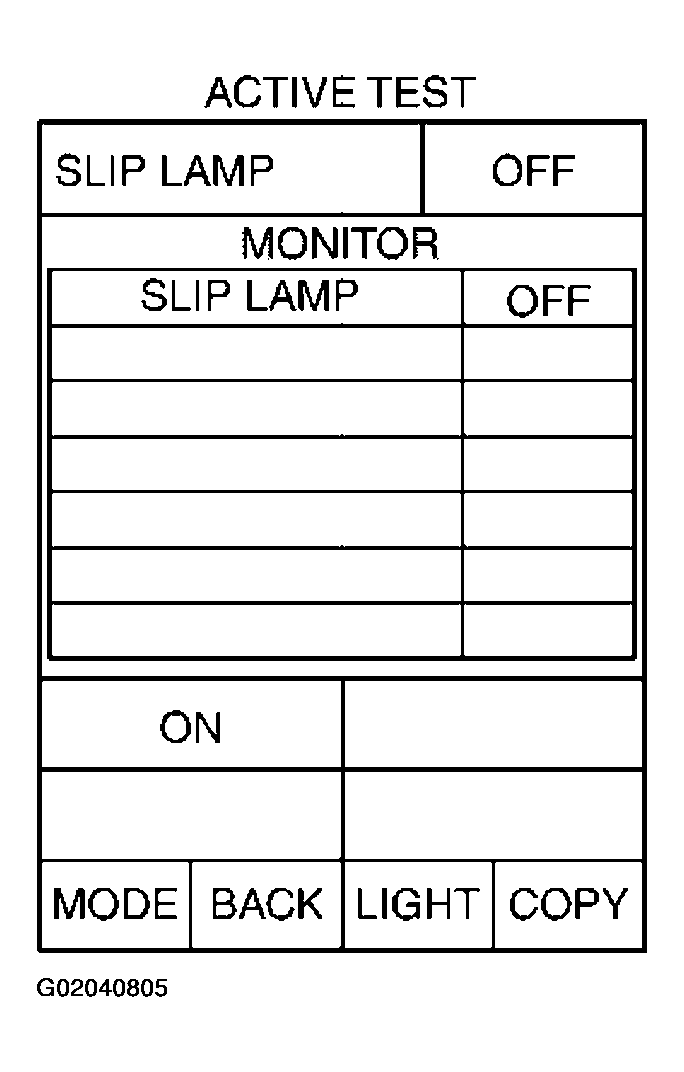

Fig 2: Identifying CONSULT II Screen Display - SLIP LAMP

Courtesy of NISSAN MOTOR CO., U.S.A.
