Removal and Installation: Removal

  1. Remove instrument lower panel, glove box and instrument assist panel. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove VDC/TCS/ABS control unit.

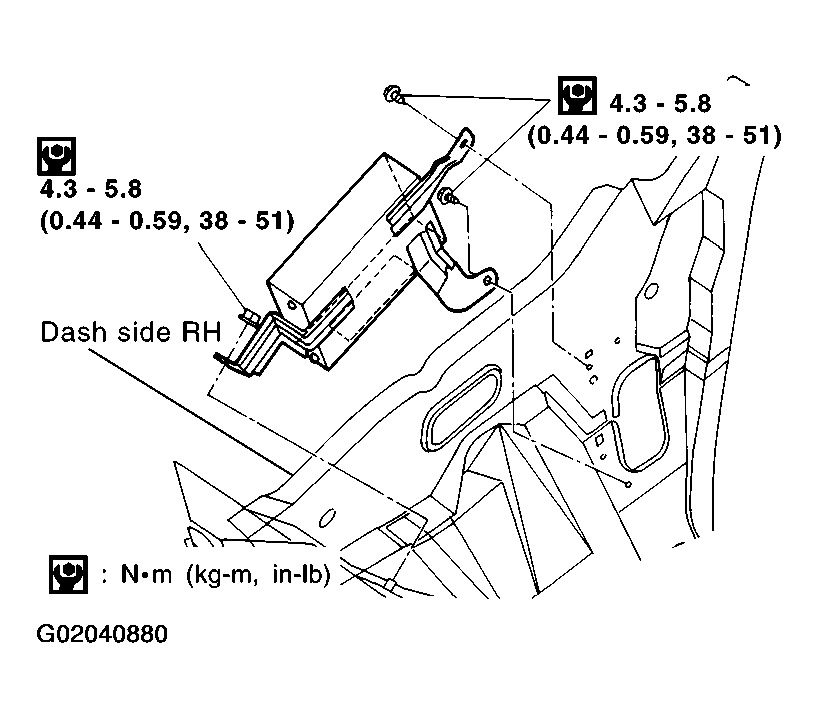

    Fig 1: Removing VDC/TCS/ABS Control Unit
    G02040880Courtesy of NISSAN MOTOR CO., U.S.A.
