Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine cover. Refer to Engine Room Cover .
Loosen lock nut, and remove accelerator wire from throttle drum.
Remove accelerator wire from accelerator pedal.
Remove accelerator wire bracket bolt and nut, and pull accelerator wire into vehicle interior.
Remove accelerator pedal bracket nuts, then remove accelerator pedal and bracket assembly.

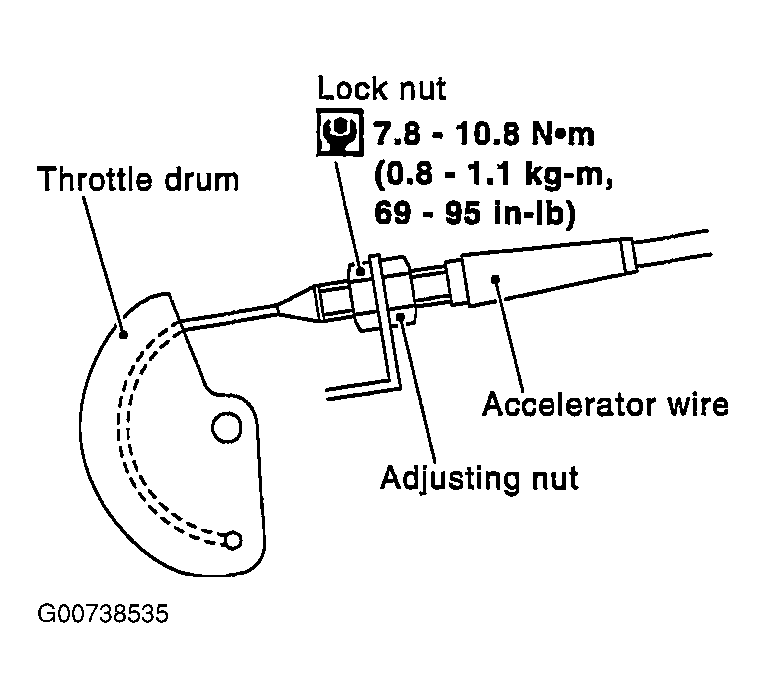

Fig 1: Removing & Installing Accelerator Wire At Throttle Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
