Inspection 5: Steering Angle Sensor And Circuit Between Steering Angle Sensor And VDC/TCS/Abs Control Unit

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

CHECKING SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.

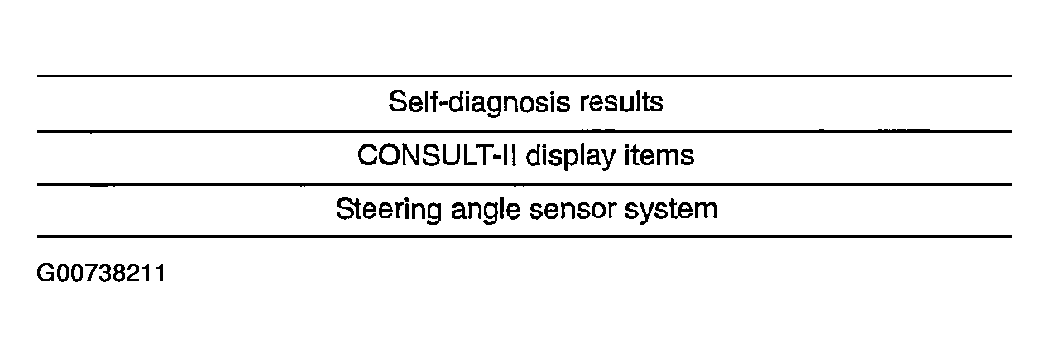

Fig 1: Displaying Self-Diagnosis Results
Courtesy of NISSAN MOTOR CO., U.S.A.

Also perform Inspection 1 for the CAN communication system.

Does "STEERING ANGLE SENSOR" appear on self-diagnosis display?
1. YES: GO TO 2.
2. NO: Inspection is completed.

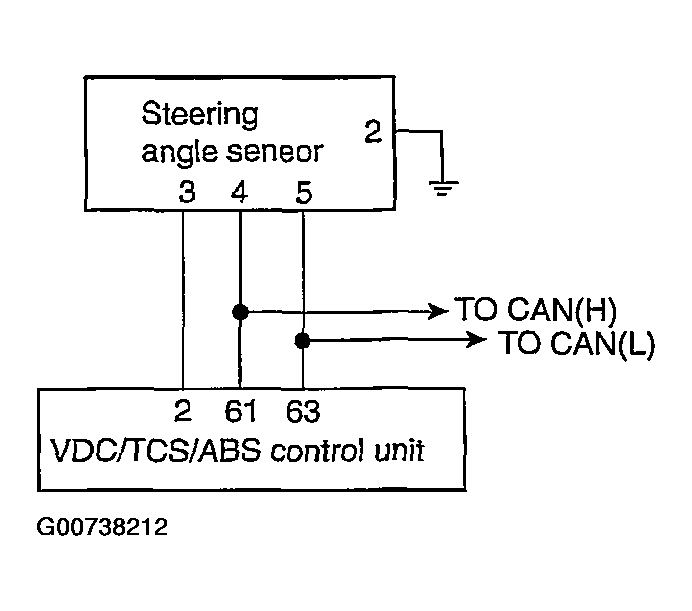

Fig 2: Displaying Steering Angle Sensor-To-VDC/TCS/ABS Control Unit Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECKING STEERING ANGLE SENSOR CIRCUIT
1. Disconnect VDC/TCS/ABS control unit connector E218 and steering angle sensor connector M52.
2. Check continuity between VDC/TCS/ABS control unit harness connector E218 and steering angle sensor harness connector M52.

  Fig 3: Checking Steering Angle Sensor Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 4: Displaying Continuity Results Of VDC/TCS/ABS Control Unit & Steering Angle Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3.
2. NG: Open or short in harness. Repair or replace suspect harness.
DATA MONITOR CHECK
Execute "DATA MONITOR" for "STEERING ANGLE SIGNAL". Check that results are normal.

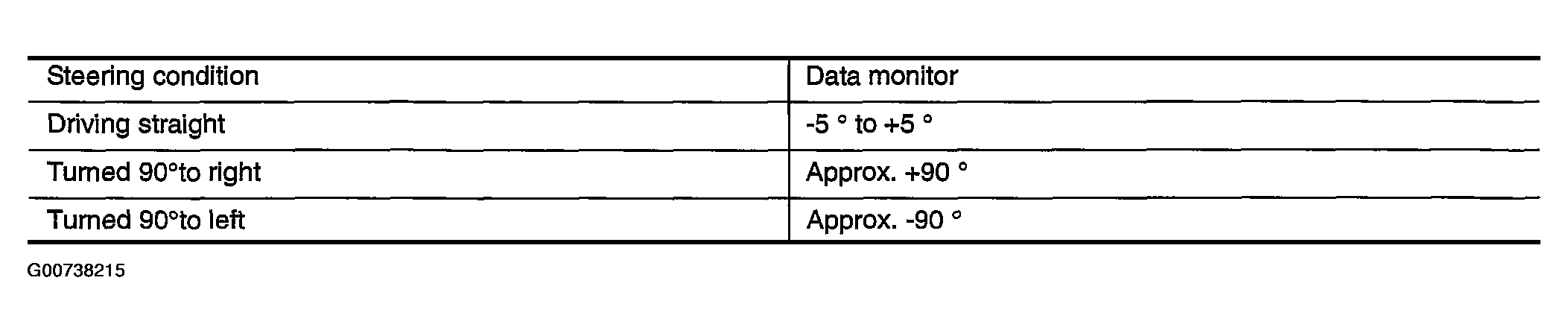

Fig 5: Displaying Data Monitor Results For Steering Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Perform VDC/TCS/ABS control unit self-diagnosis again.
2. NG: Replace spiral cable (steering angle sensor) and adjust neutral position of steering angle sensor. Refer to ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION .
