1. Check Power Supply Circuit For Steering Lock Control Unit

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

OK or NG

  1. OK : GO TO 2.
  2. NG : Check the following.
    • 10A fuse [No. 6, located in the fuse block (J/B)]
    • Harness for open or short between fuse block and steering lock control unit

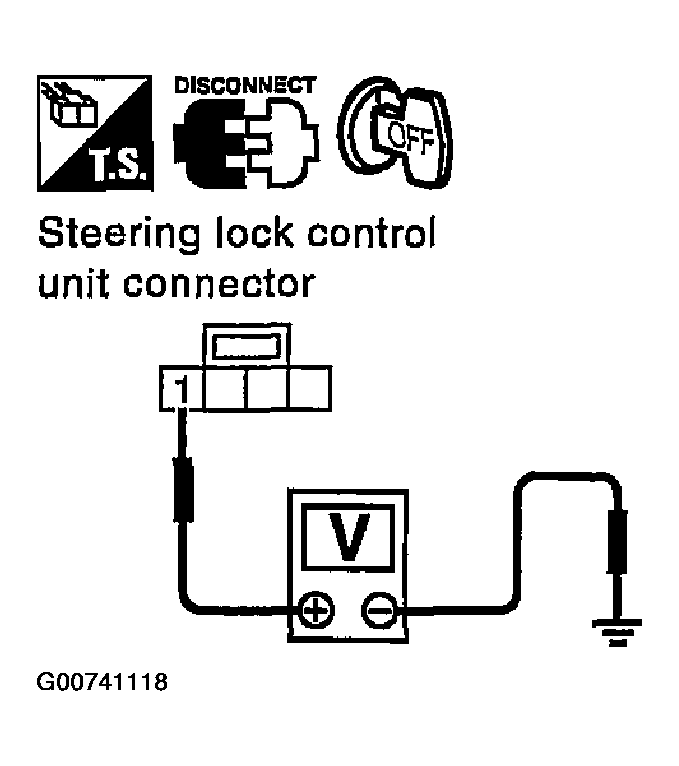

Fig 1: Checking Power Supply Circuit For Steering Lock Control Unit
G00741118Courtesy of NISSAN MOTOR CO., U.S.A.
