2. Check Ground Circuit For Steering Lock Control Unit
WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

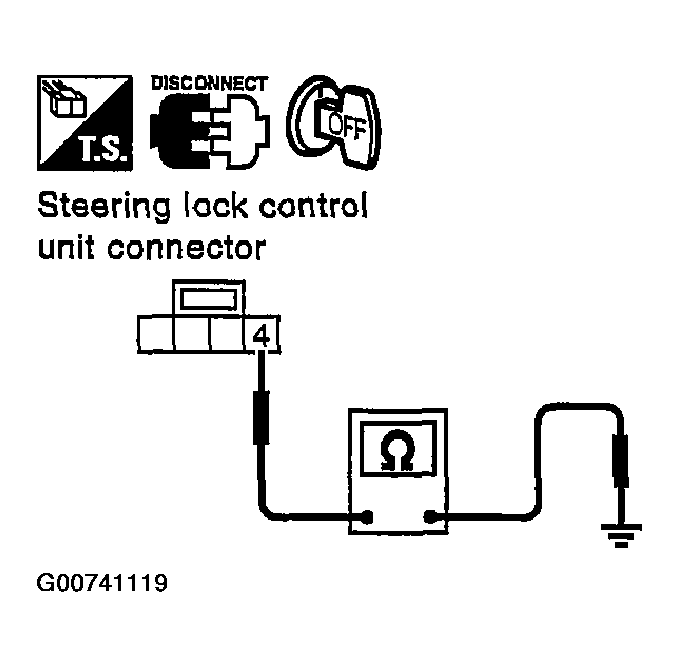

Check voltage continuity steering lock control unit connector M69 terminal 4 (B) and ground.
- 4 (B) - Ground : Continuity should exist
.
OK or NG
- OK : GO TO 3.
- NG : Repair or replace harness.
Courtesy of NISSAN MOTOR CO., U.S.A.
