Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Component Location |
|---|---|
| B16 | Under left front door sill. |
| B17 | Under left front door sill. |
| B57 | At center rear of vehicle. See Figure . |
| B216 | Under right front door sill. |
| B217 | Under right front door sill. |
| B256 | At right front of trunk. See Figure . |
| B422 | At base of right "C" pillar. See Figure . |

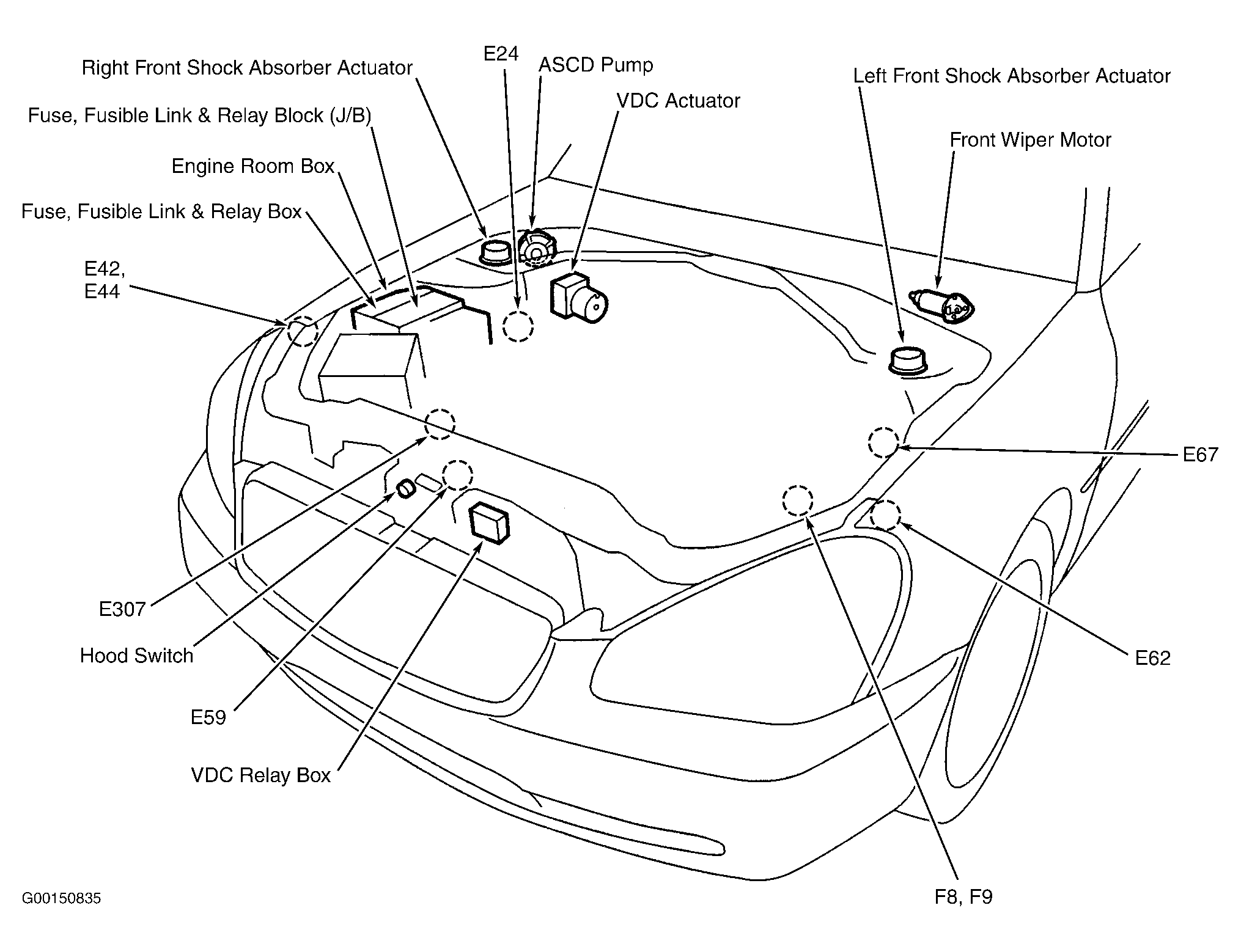

| E24 | On right front strut tower. See Figure . |
| E42 | On right front fenderwell, forward of engine room box. See Figure . |
| E44 | On right front fenderwell, forward of engine room box. See Figure . |
| E59 | At center front of engine compartment. See Figure . |
| E62 | On left front fenderwell, near engine oil level gauge. See Figure . |
| E67 | On left front strut tower. See Figure . |
| E307 | At right front of engine compartment, near battery. See Figure . |
| F8 | At left front of engine compartment, near engine oil level gauge. See Figure . |
| F9 | At left front of engine compartment, near engine oil level gauge. See Figure . |

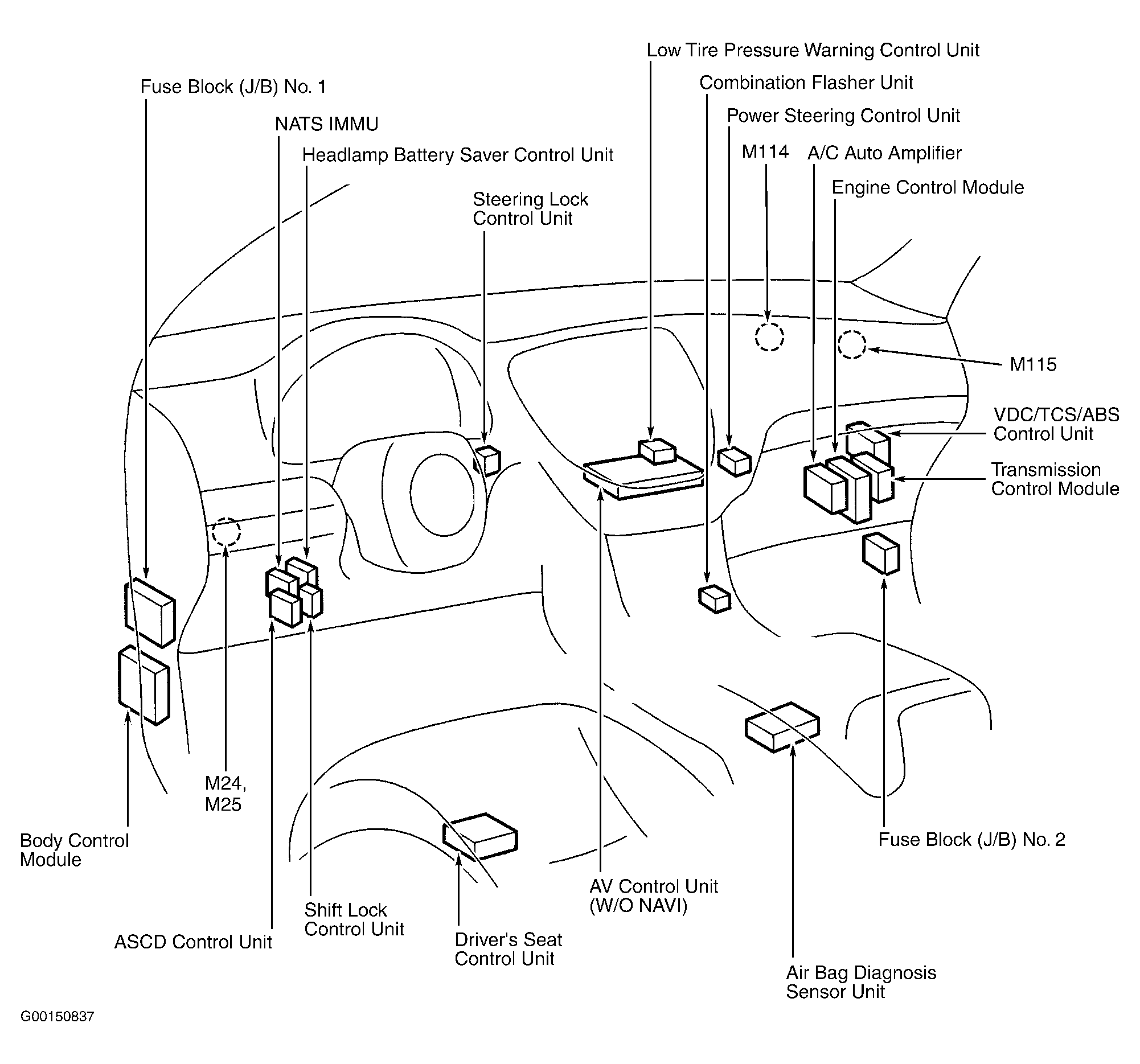

| M24 | Behind left side of dash. See Figure . |
| M25 | Behind left side of dash. See Figure . |
| M114 | Behind right side of dash. See Figure . |
| M115 | Behind right side of dash. See Figure . |
