Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Component Location |
|---|---|

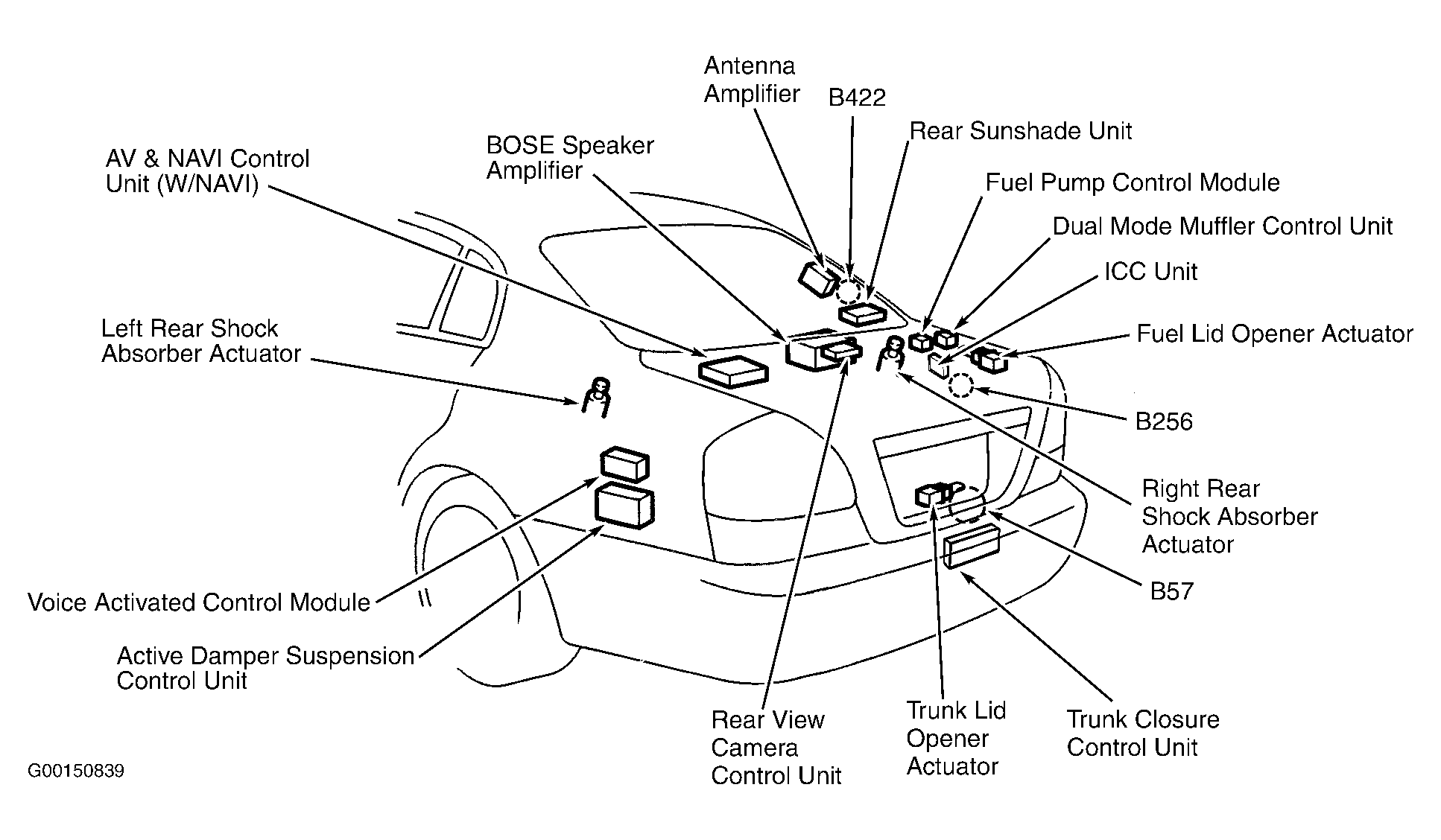

| Antenna Amplifier | At right "C" pillar. See Figure . |
| BOSE Speaker Amplifier | At center front of trunk. See Figure . |
| Data Link Connector | Under left side of dash. |

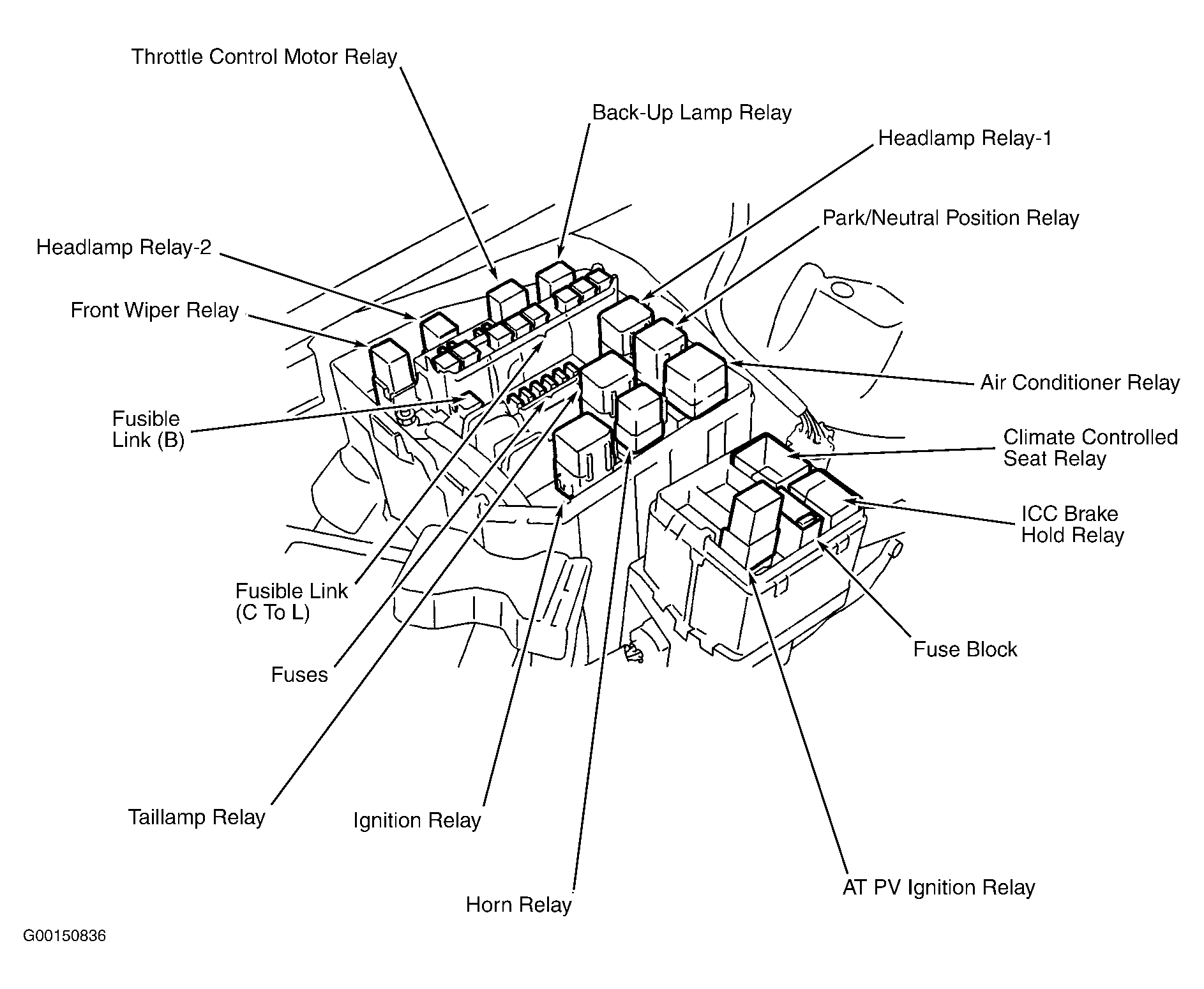

| Fuses | In fuse, fusible link & relay box. See Figure . |
| Fusible Link (B) | In fuse, fusible link & relay box (J/B). See Figure . |
| Fusible Link (C To L) | In fuse, fusible link & relay box (J/B). See Figure . |
| ICC Warning Chime | Under left side of dash, near ASCD control unit. |
| Joint Connectors No. 1 & 2 | Behind left side of dash, near fuse block. |
| Joint Connectors No. 3 & 4 | Behind upper left side of dash. |
| Joint Connector No. 5 | Behind left side of dash, taped to harness. |
| Joint Connectors No. 6, 7, 8 & 9 | Behind center of dash. |
| Joint Connector No. 10 | Behind left side of dash, near fuse block. |
| Joint Connector No. 11 | Behind upper right side of dash, taped to harness. |
| Joint Connectors No. 12 & 13 | Behind top center of dash, taped to harness. |
| Joint Connector No. 14 | Behind upper right side of dash, taped to harness. |
| Joint Connectors No. 15, 16, 17 & 18 | Behind upper right end of dash, taped to harness. |
| Joint Connector No. 19 | Behind right end of dash, taped to harness. |
| Joint Connector No. 20 | Behind right side of dash, taped to harness. |
| Joint Connector No. 21 | Behind lower right end of dash, taped to harness. |
| Joint Connector No. 25 | Behind left kick panel, taped to harness. |
| Joint Connectors No. 28, 29 & 30 | Behind right kick panel, taped to harness. |
| Joint Connectors No. 36 & 37 | Behind right rear shock tower, taped to harness. |
| Joint Connector No. 41 | In left front door. |
| NATS Antenna Amplifier | Behind right side of dash. |
| Remote Keyless Entry Receiver | At left "C" pillar. |
