Disassembly and Assembly: Disassembly: Notes

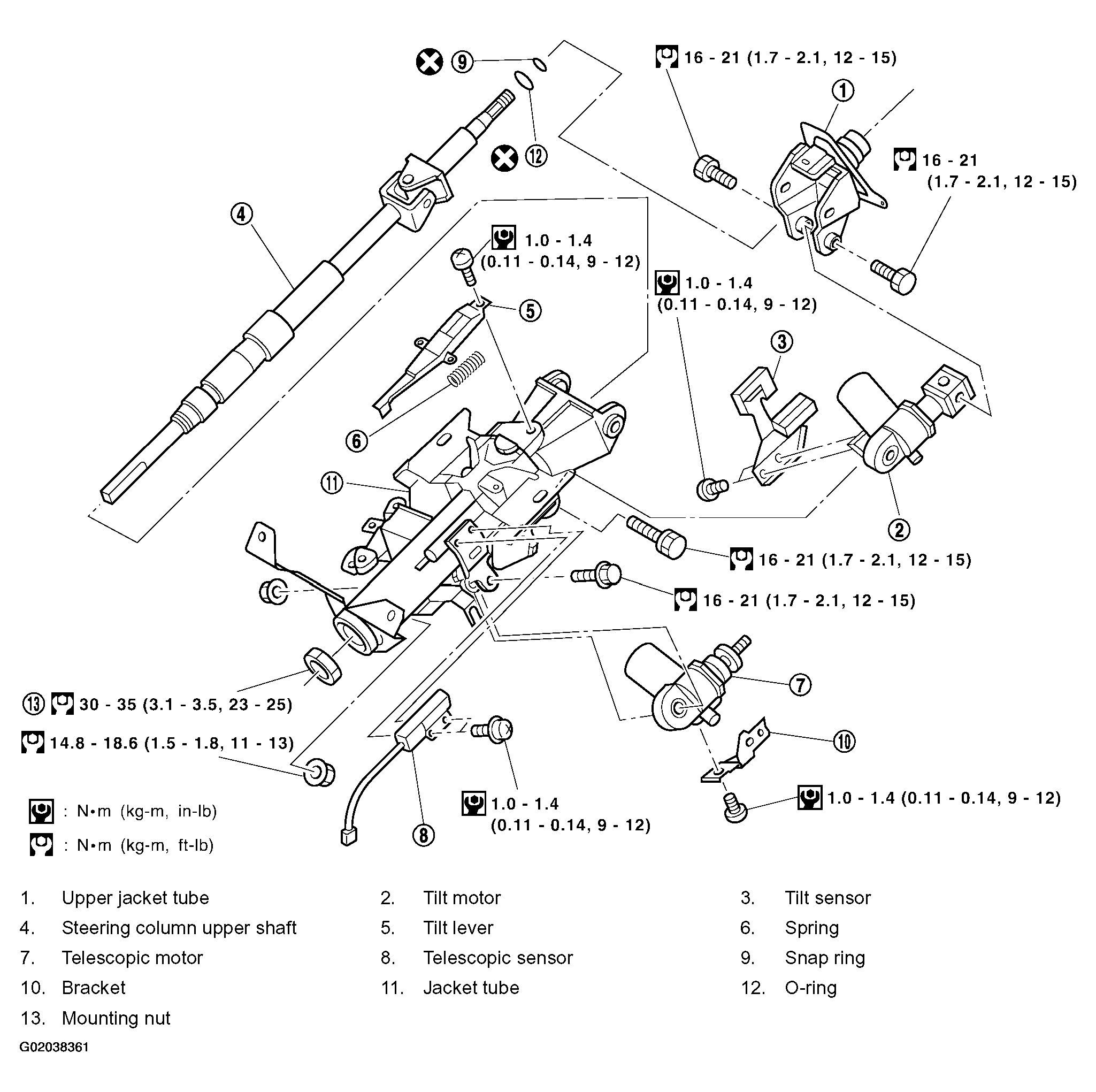

Fig 1: Disassembling Steering Column Components And Torque Identifications
G02038361Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove combination switch from upper jacket tube.
  2. Remove tilt motor and sensor from jacket tube assembly.
  3. Remove telescopic motor and sensor from jacket tube assembly.
  4. Remove snap ring from steering column upper shaft.
  5. Remove upper jacket tube.
  6. Remove mounting nuts, and remove steering column upper shaft from jacket tube assembly.
