Key Unlock
Check operation by applying battery voltage to key switch and key lock solenoid harness connector.
CAUTION:
Be careful not to cause burnout of the harness.

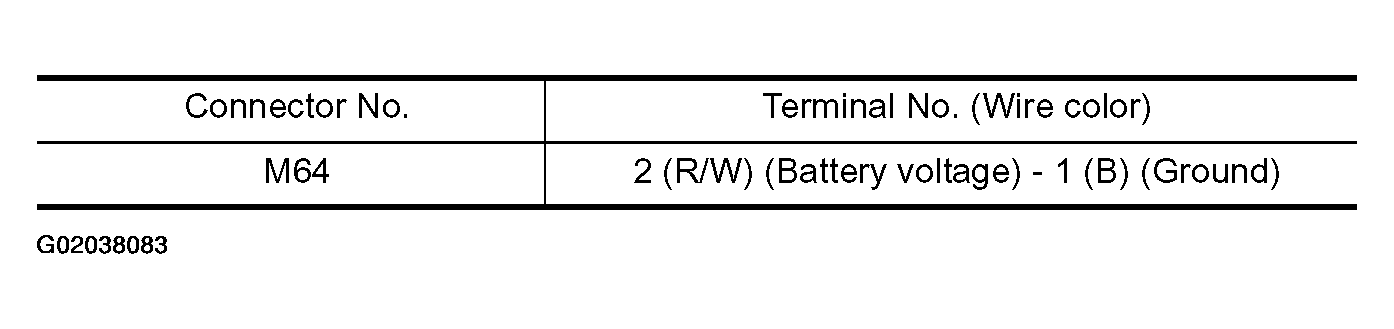

Fig 1: Identifying Key Unlock Solenoid Harness Connector Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Checking Key Lock Solenoid Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
