Stop Lamp Switch

Check continuity between terminals of the stop lamp switch harness connector.

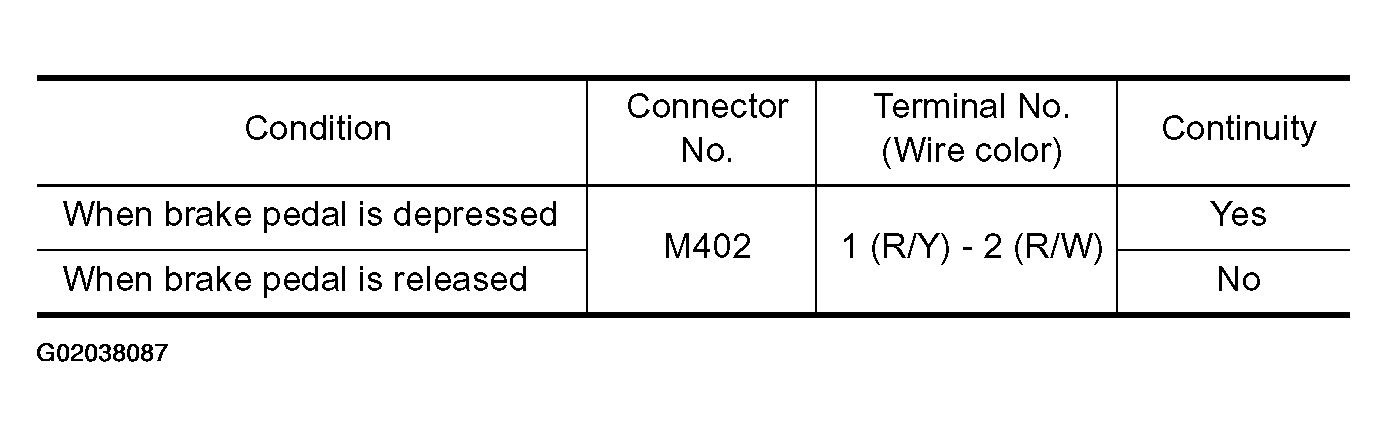

Fig 1: Identifying Stop Lamp Switch Harness Connector Table
Courtesy of NISSAN MOTOR CO., U.S.A.

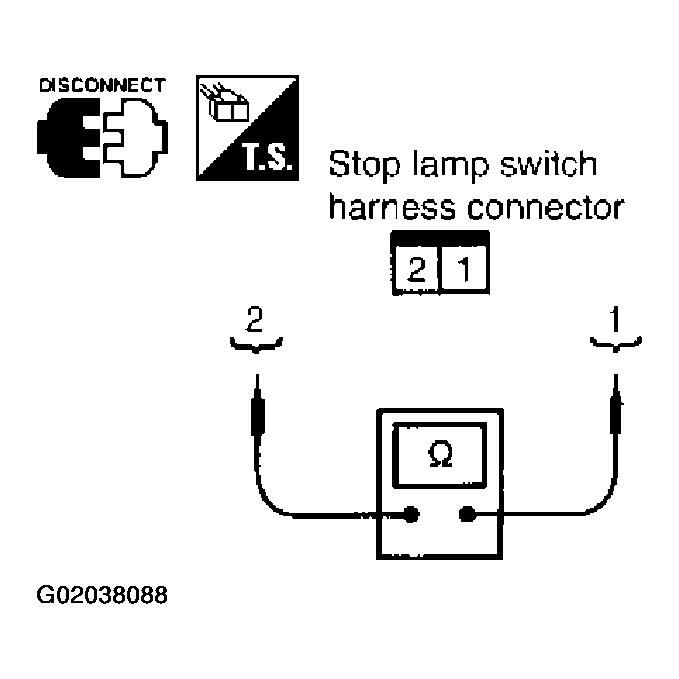

Fig 2: Checking Continuity Between Terminals Of Stop Lamp Switch Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal. Refer to "BRAKE PEDAL".
