Assembly (2)

CAUTION: When replacing the control valve assembly, erase EEP ROM in TCM. Refer to "PRECAUTIONS FOR A/T ASSEMBLY REPLACEMENT ".
  1. Install O-ring in oil pump assembly.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
  2. Install bearing race in oil pump assembly.
    CAUTION: Apply petroleum jelly to bearing race.

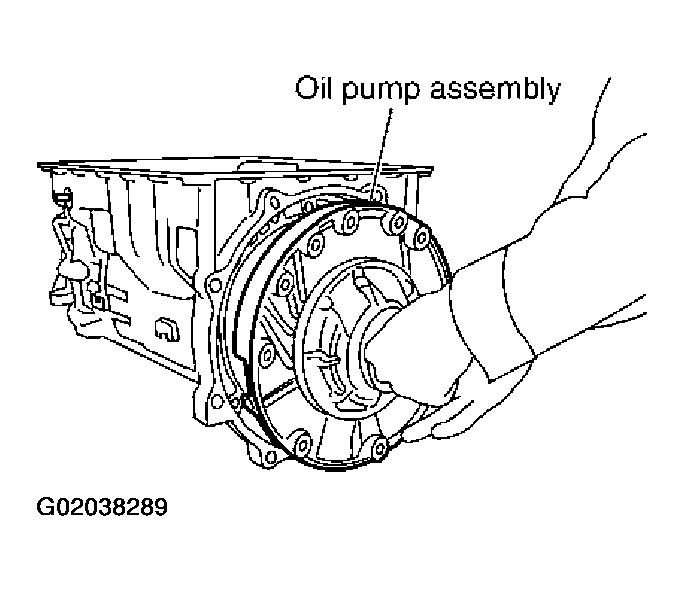

  3. Install oil pump assembly in transmission case.
    CAUTION: Apply ATF to oil pump bush.
    Fig 1: Installing Bearing Race In Oil Pump Assembly
    G02038289Courtesy of NISSAN MOTOR CO., U.S.A.

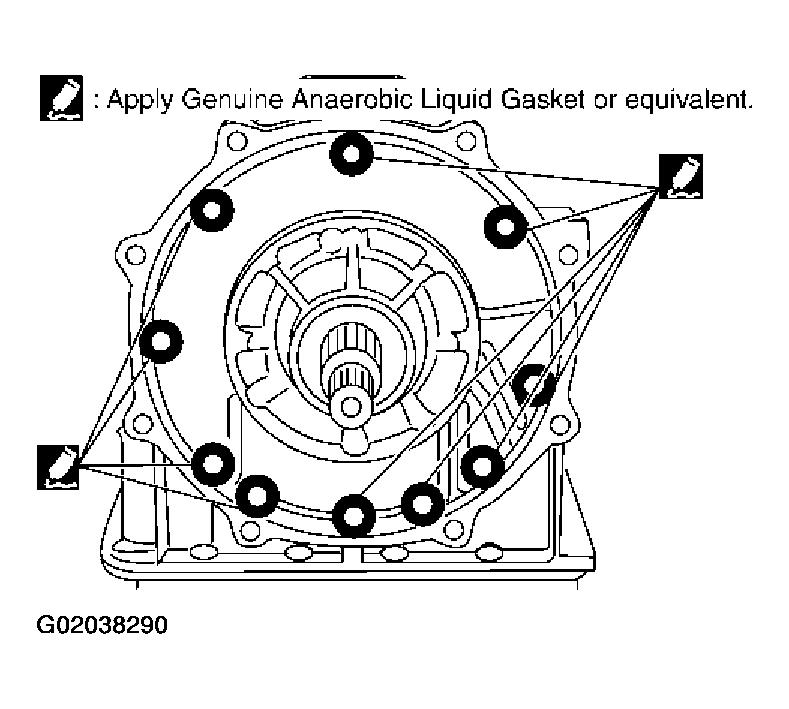

  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to oil pump assembly as shown in illustration.
    CAUTION: Complete remove all moisture, oil and old sealant, etc. From the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.
    Fig 2: Removing All Moisture, Oil And Old Sealant
    G02038290Courtesy of NISSAN MOTOR CO., U.S.A.

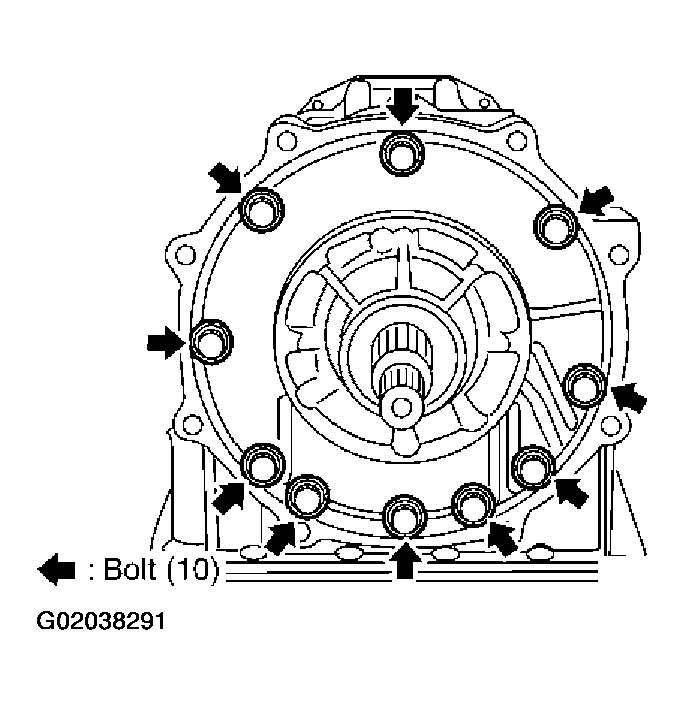

  5. Tighten oil pump mounting bolts to specified torque.
    CAUTION: Apply ATF to oil pump bushing.
    Fig 3: Tightening Oil Pump Mounting Bolts To Specified Torque
    G02038291Courtesy of NISSAN MOTOR CO., U.S.A.

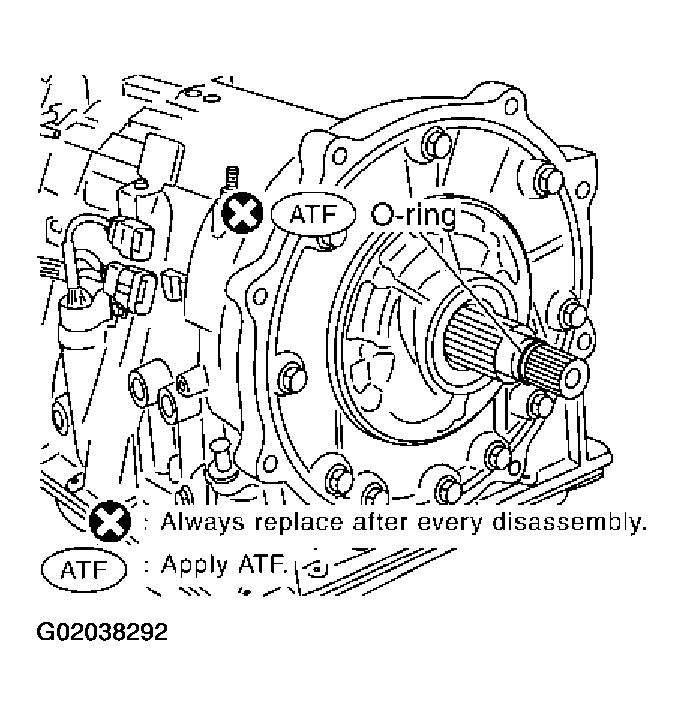

  6. Install O-ring in input shaft.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
    Fig 4: Installing O-Ring In Input Shaft
    G02038292Courtesy of NISSAN MOTOR CO., U.S.A.

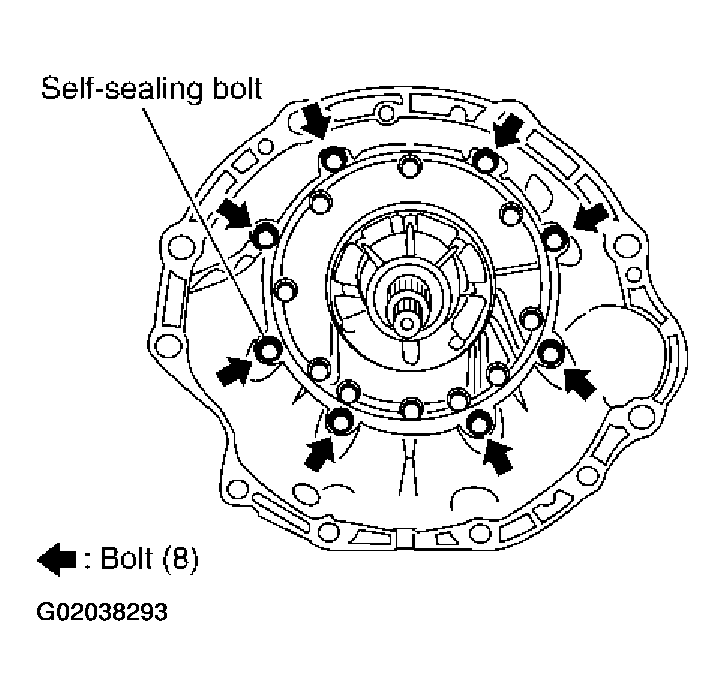

  7. Install converter housing in transmission case.
    CAUTION: Do not reuse self-sealing bolt.
    1. Converter housing mounting bolt:
      1. 52 N.m (5.3 kg-m, 38 ft-lb)
    2. Self-sealing bolt:
      1. 61 N.m (6.2 kg-m, 45 ft-lb)
    Fig 5: Installing Converter Housing In Transmission Case
    G02038293Courtesy of NISSAN MOTOR CO., U.S.A.

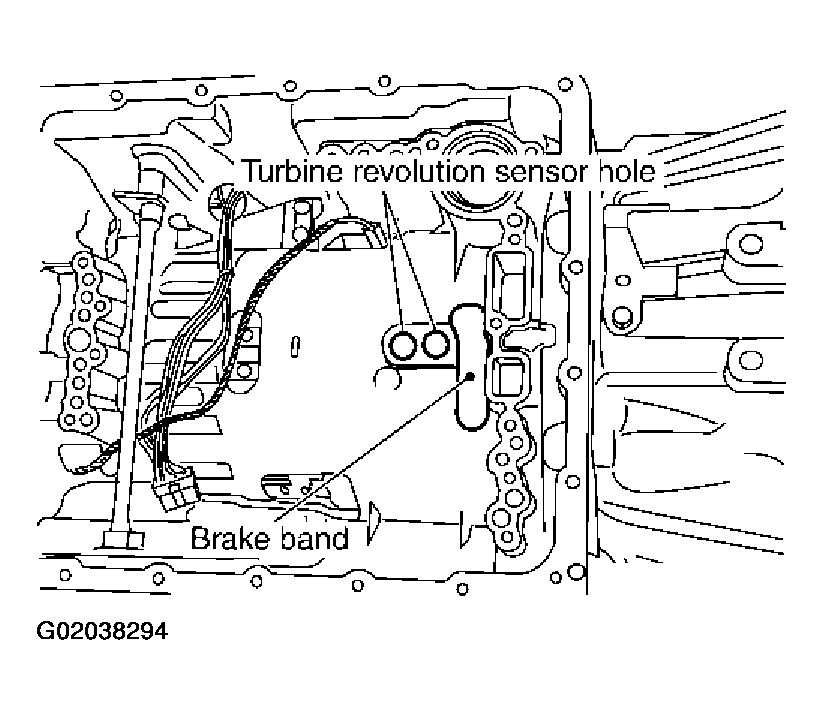

  8. Make sure that brake band does not close turbine revolution sensor hole.
    Fig 6: Identifying Turbine Revolution Sensor Hole
    G02038294Courtesy of NISSAN MOTOR CO., U.S.A.

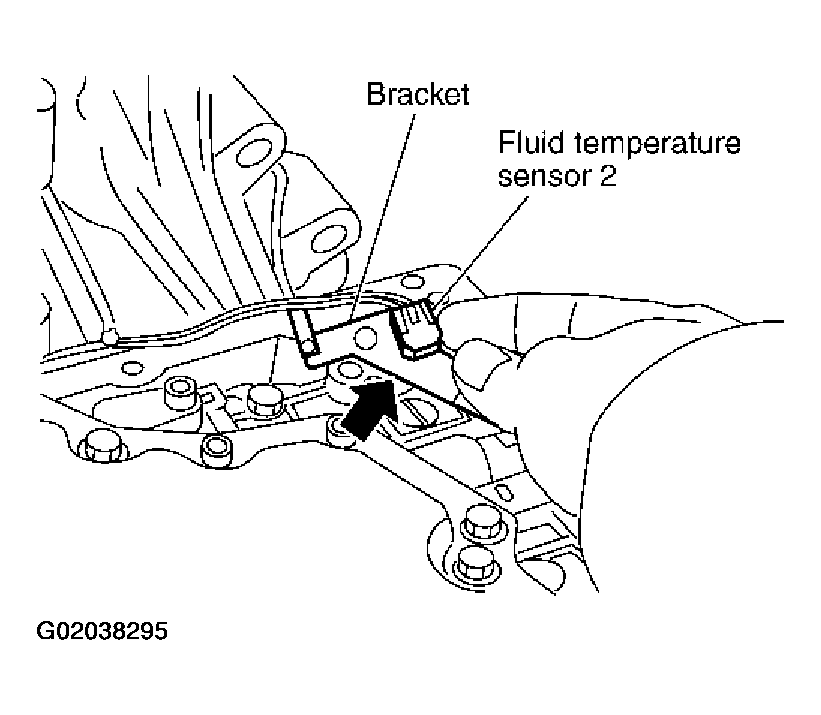

  9. Install fluid temperature sensor 2 in bracket.
    Fig 7: Installing Fluid Temperature Sensor 2 In Bracket
    G02038295Courtesy of NISSAN MOTOR CO., U.S.A.

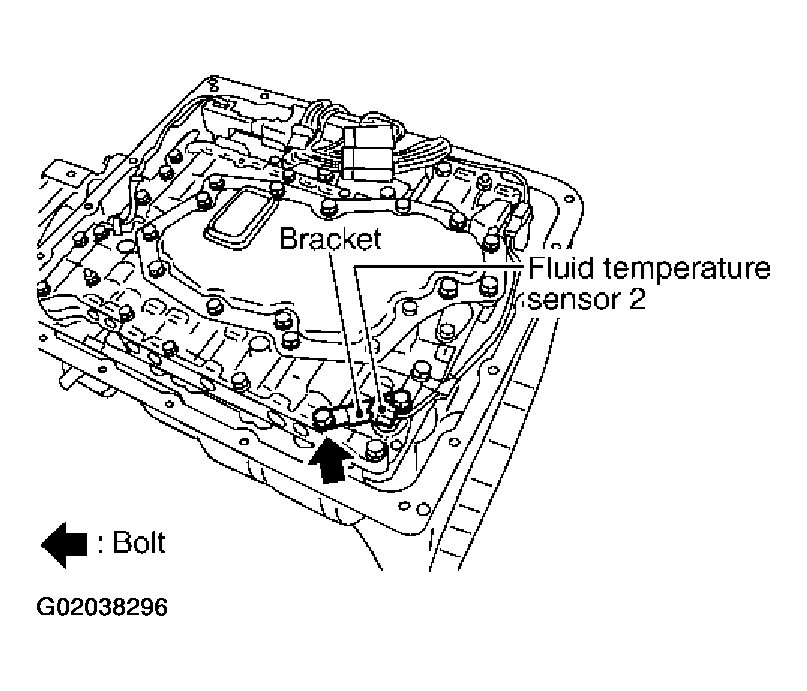

  10. Install fluid temperature sensor 2 in control valve assembly. (With bracket.)
    Fig 8: Installing Fluid Temperature Sensor 2 In Control Valve Assembly
    G02038296Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install control valve assembly.

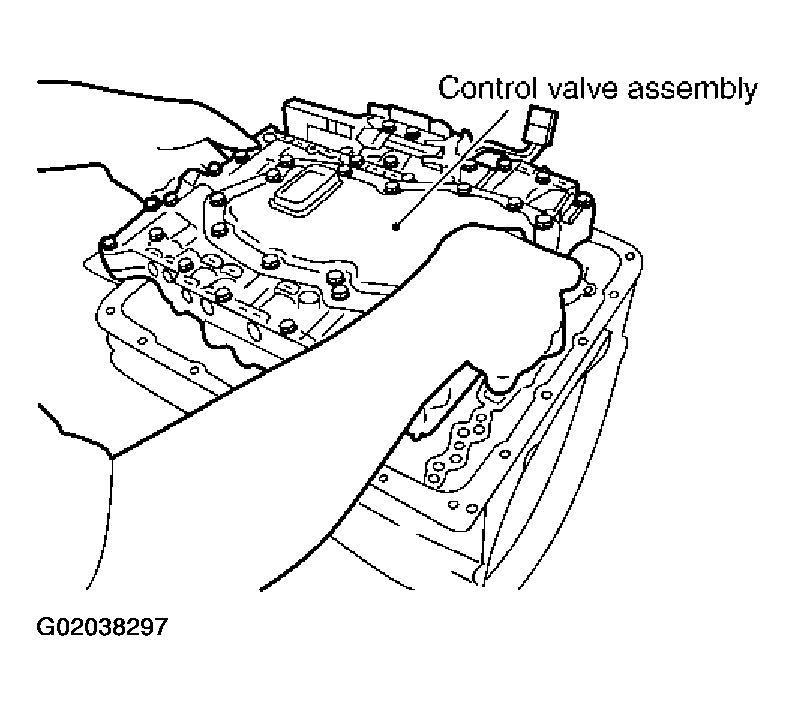

    1. Install control valve assembly in transmission case.
      Fig 9: Installing Control Valve Assembly In Transmission Case
      G02038297Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION:
      • Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb installation of control valve assembly.
      • Make sure that turbine sensor securely installs turbine sensor hole.

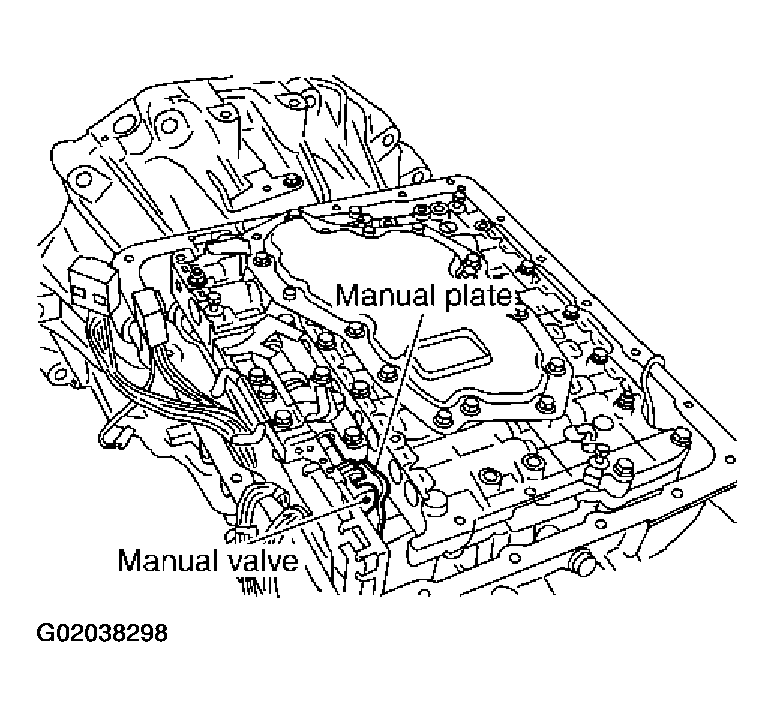

      • Assemble it so that manual valve cutout is engaged with manual plate projection.
      Fig 10: Identifying Manual Valve AND Manual Plate Projection
      G02038298Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install bolts A, B and C in control valve assembly.

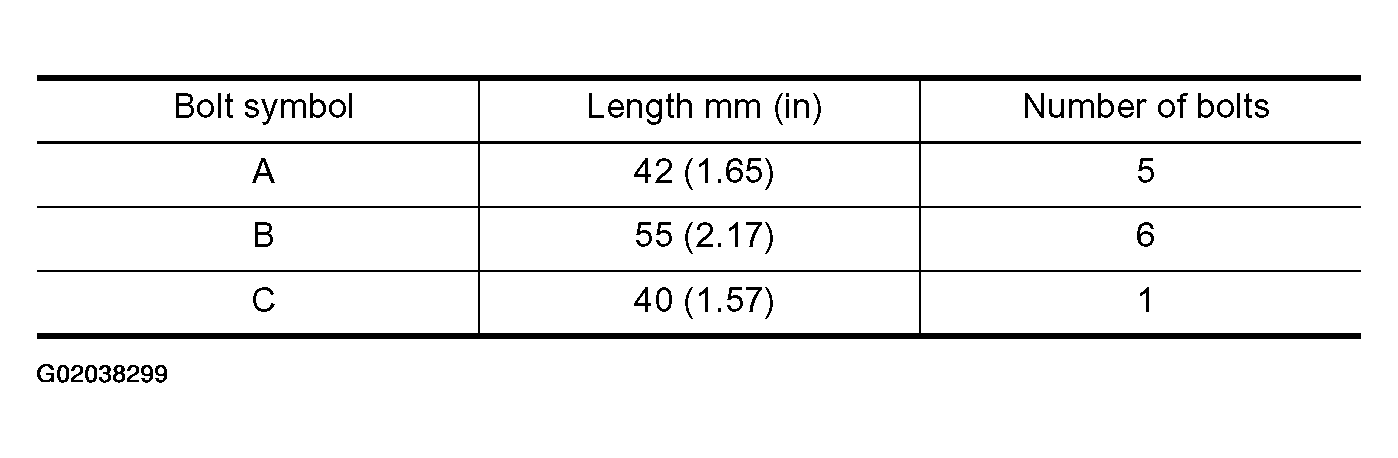

      Fig 11: Identifying A, B And C Bolts In Control Valve Assembly Table
      G02038299Courtesy of NISSAN MOTOR CO., U.S.A.

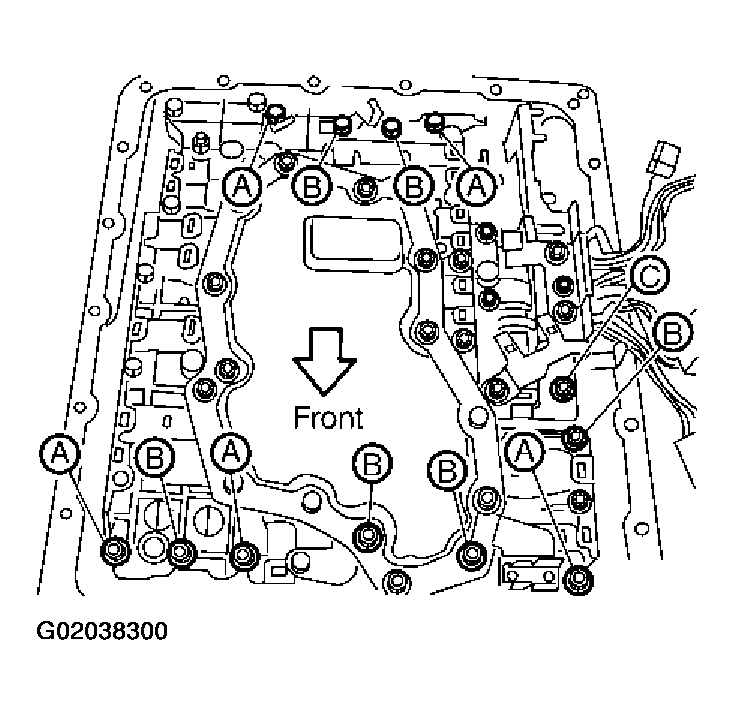

      Fig 12: Installing Bolts A, B And C In Control Valve Assembly
      G02038300Courtesy of NISSAN MOTOR CO., U.S.A.

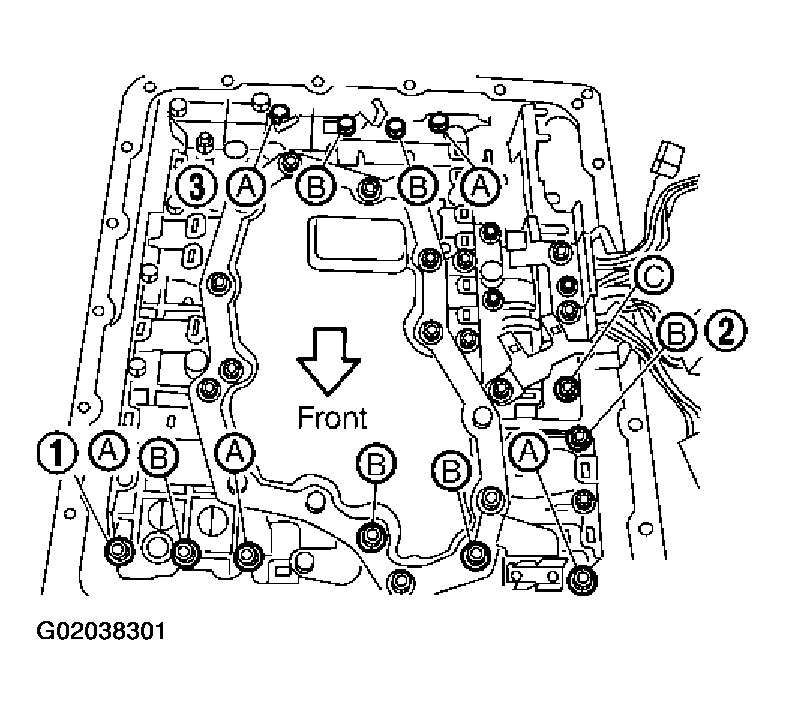

    3. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.
      1. : 7.9 N.m (0.81 kg-m, 70 in-lb)
    Fig 13: Tightening Bolt 1, 2 And 3 Temporarily To Prevent Dislocation
    G02038301Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install terminal cord assembly connectors in bracket.

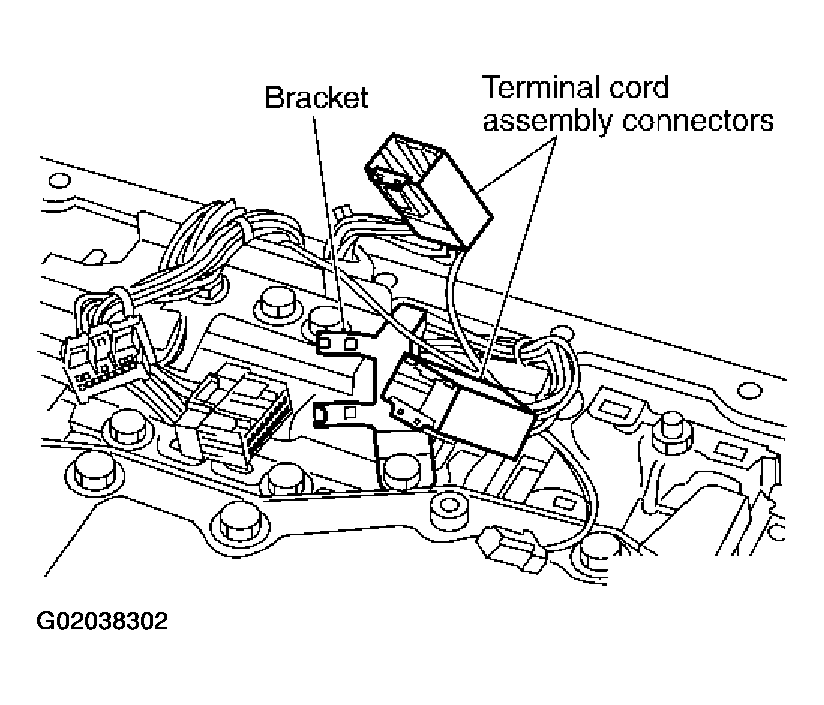

    Fig 14: Installing Terminal Cord Assembly Connectors In Bracket
    G02038302Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Connect terminal cord assembly connectors.

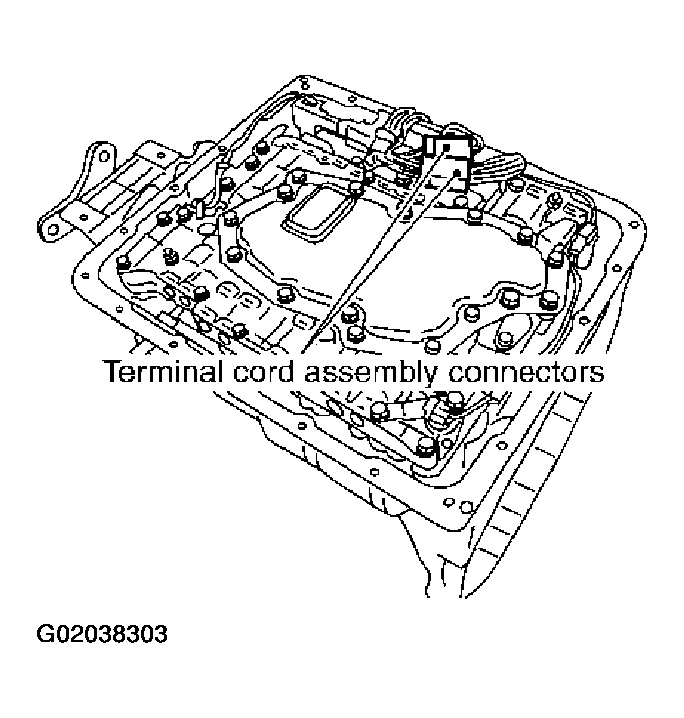

    Fig 15: Connecting Terminal Cord Assembly Connectors
    G02038303Courtesy of NISSAN MOTOR CO., U.S.A.

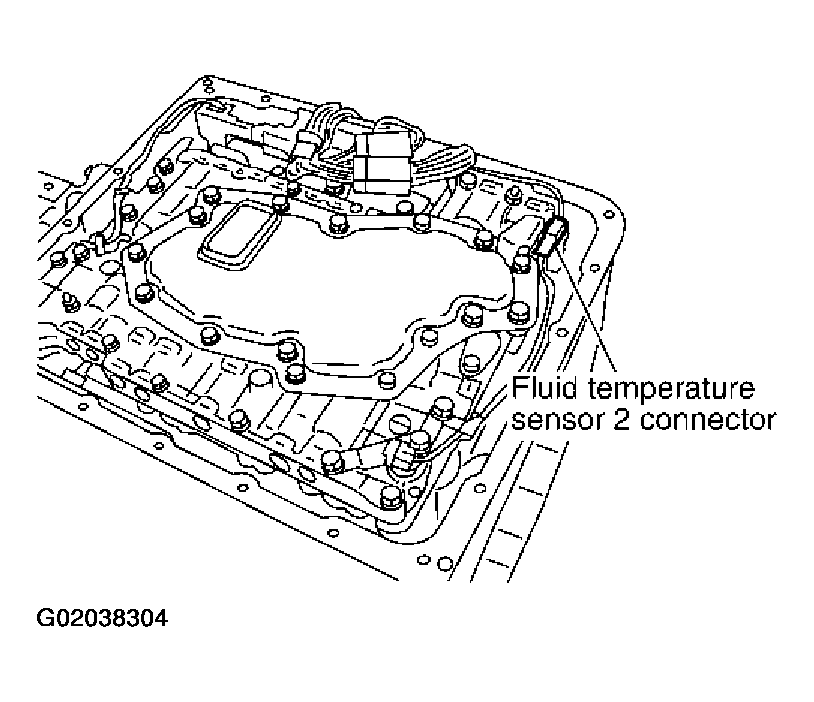

  14. Connect fluid temperature sensor 2 connector.
    Fig 16: Connecting Fluid Temperature Sensor 2 Connector
    G02038304Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Connect revolution sensor connector.

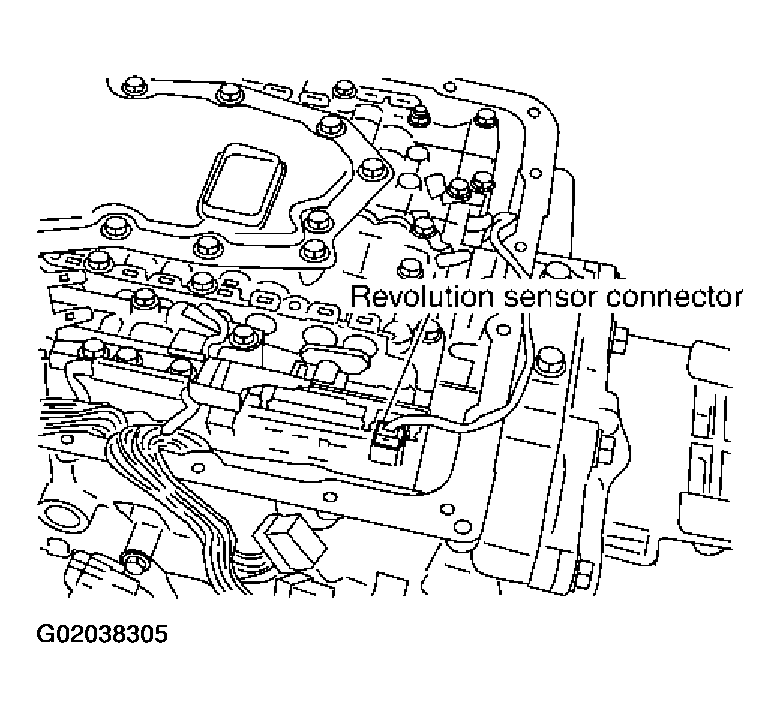

    Fig 17: Connecting Revolution Sensor Connector
    G02038305Courtesy of NISSAN MOTOR CO., U.S.A.

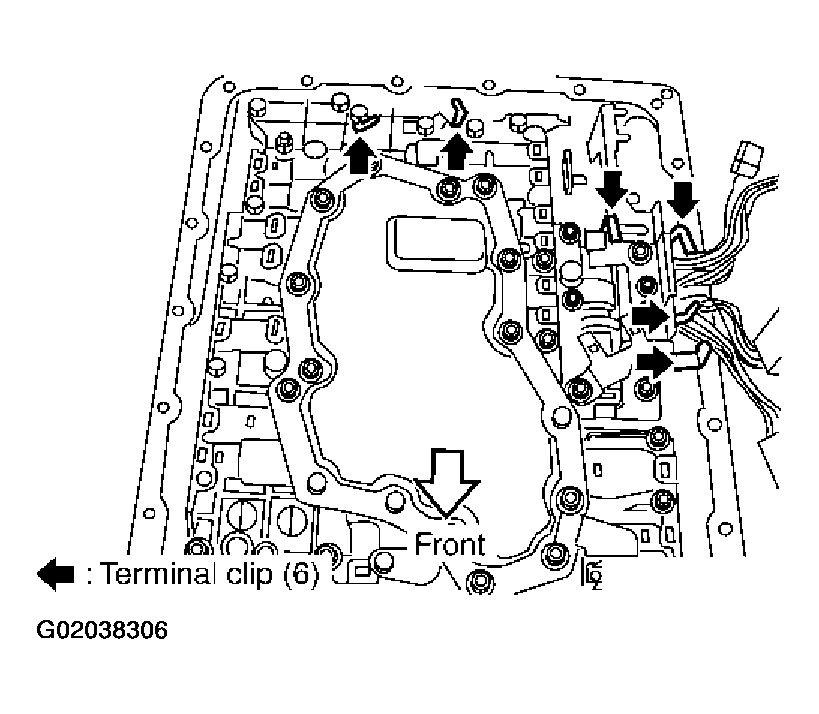

  16. Securely fasten terminal harness with clip.
    Fig 18: Identifying Fasten Terminal Harness With Clip
    G02038306Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install oil pan in transmission case.
    1. Install oil pan gasket in transmission case.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.

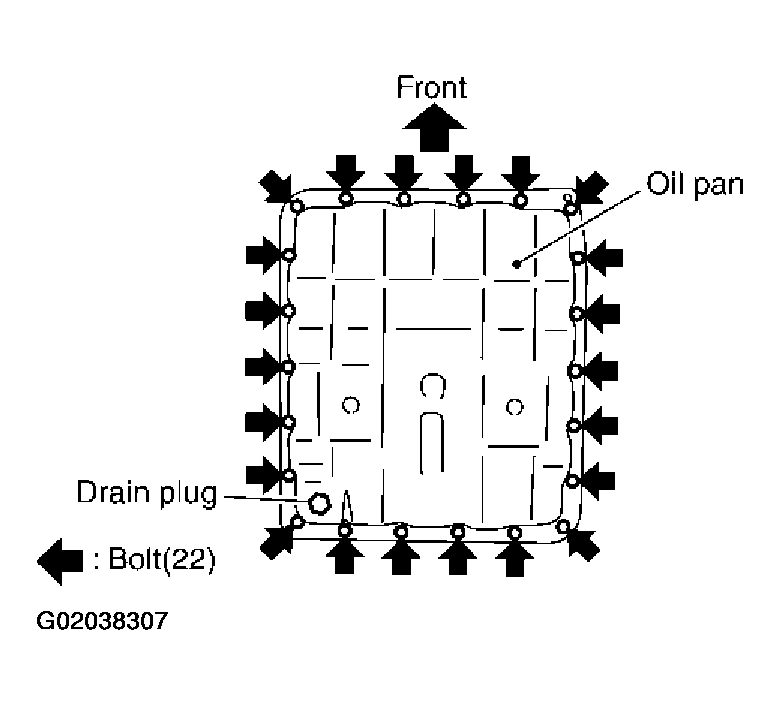

    2. Install oil pan in transmission case.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.
      Fig 19: Installing Oil Pan In Transmission Case
      G02038307Courtesy of NISSAN MOTOR CO., U.S.A.

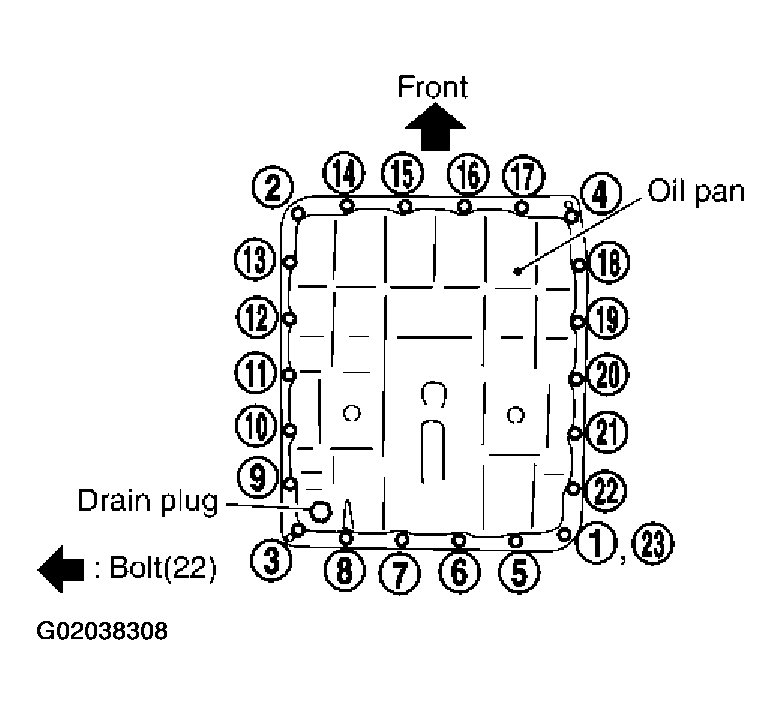

    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
      CAUTION: Do not reuse oil pan mounting bolts.
  18. Install drain plug in oil pan.
    CAUTION: Do not reuse drain plug gasket.
    Fig 20: Installing Drain Plug In Oil Pan
    G02038308Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Install torque converter.

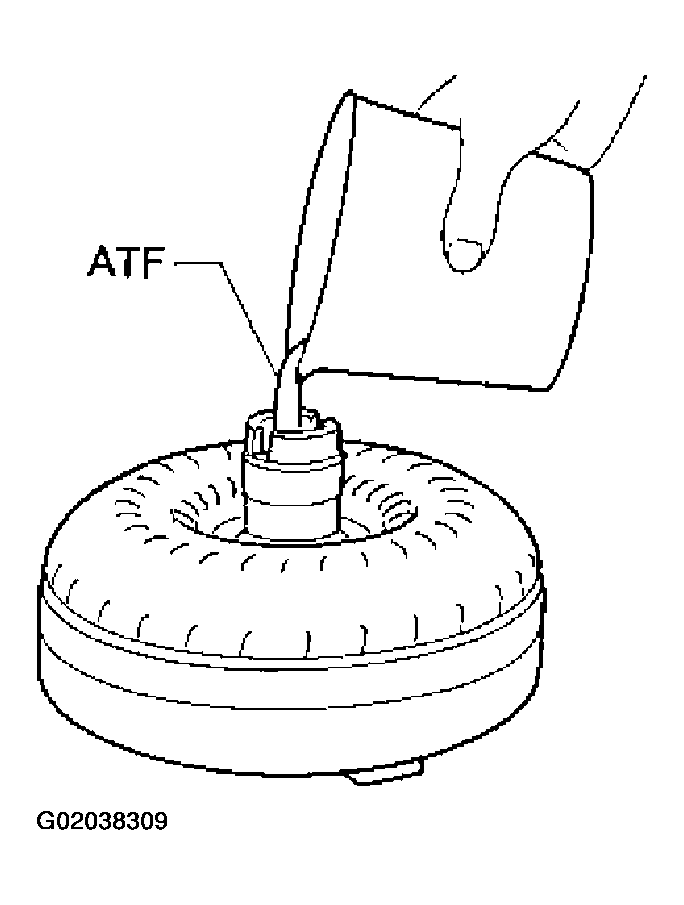

    1. Pour ATF into torque converter.
      • Approximately 2 liter (2-1/8 US qt, 1-3/4 lmp qt) of fluid is required for a new torque converter.
      • When reusing old torque converter, add the same amount of fluid as was drained.
      Fig 21: Installing Torque Converter
      G02038309Courtesy of NISSAN MOTOR CO., U.S.A.

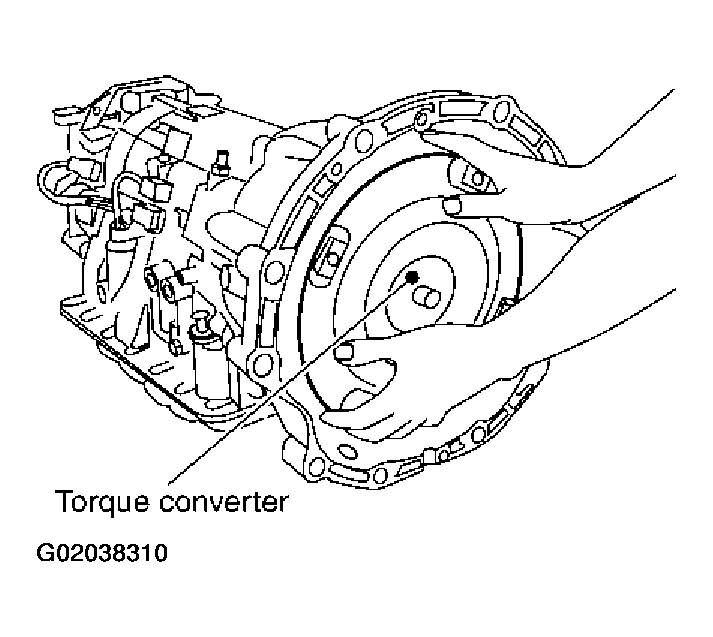

    2. Install torque converter while aligning notches of torque converter with notches of oil pump.
      Fig 22: Install Torque Converter With Notches Of Oil Pump
      G02038310Courtesy of NISSAN MOTOR CO., U.S.A.

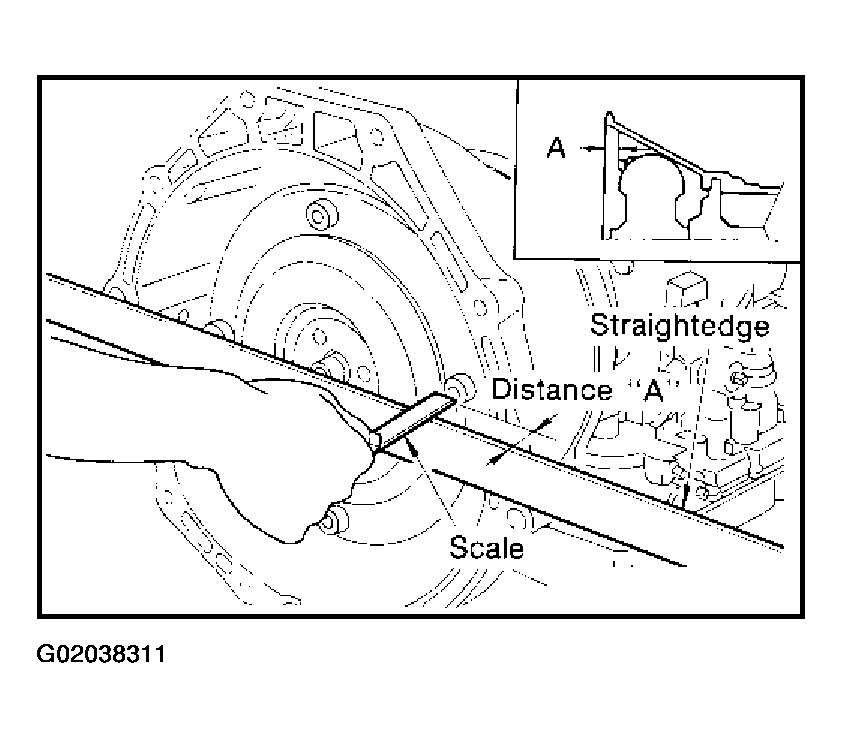

    3. Measure distance "A" to check that torque converter is in proper position.
      1. Distance "A":
        1. 22.0 mm (0.87 in) or more
      Fig 23: Measuring Distance A To Check That Torque Converter Is In Proper Position
      G02038311Courtesy of NISSAN MOTOR CO., U.S.A.
