Diagnostic Procedure

CHECK DTC
With CONSULT-II
1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "SELF DIAG RESULTS" mode for "A/T" with CONSULT-II.
3. Touch "ERASE".
4. Turn ignition switch to "OFF" position and wait at least 10 seconds.
5. Perform DTC confirmation procedure, "DTC CONFIRMATION PROCEDURE ".

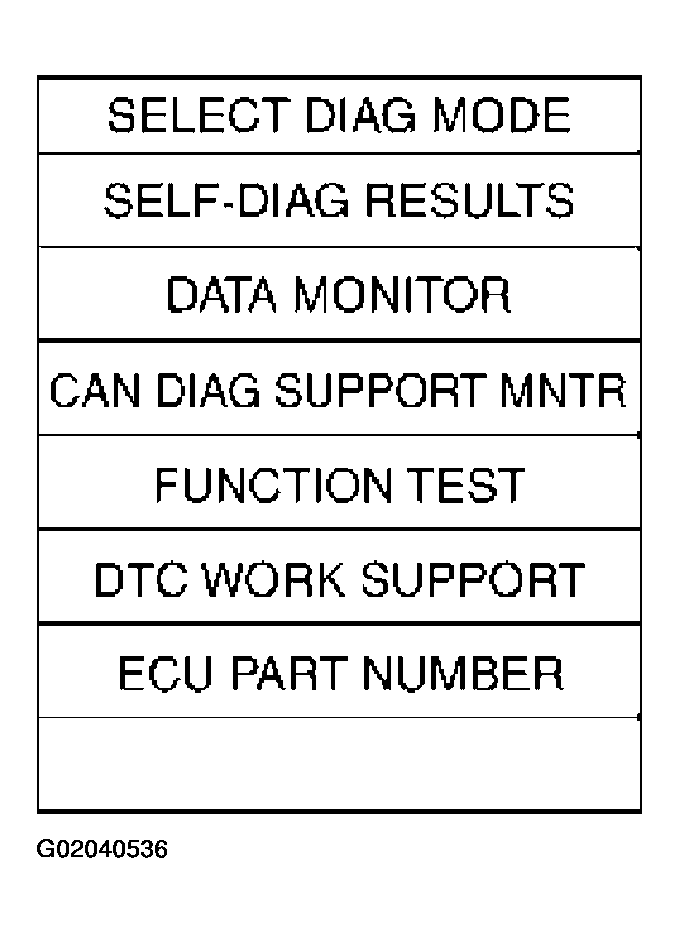

  Fig 1: SELF DIAG RESULTS Mode Display For A/T With CONSULT-II (DTC P1703)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Is the "TCM.ROM" displayed again?
1. Yes >> Replace TCM.
2. No >> INSPECTION END
