CONSULT-II Reference Value in Data Monitor Mode

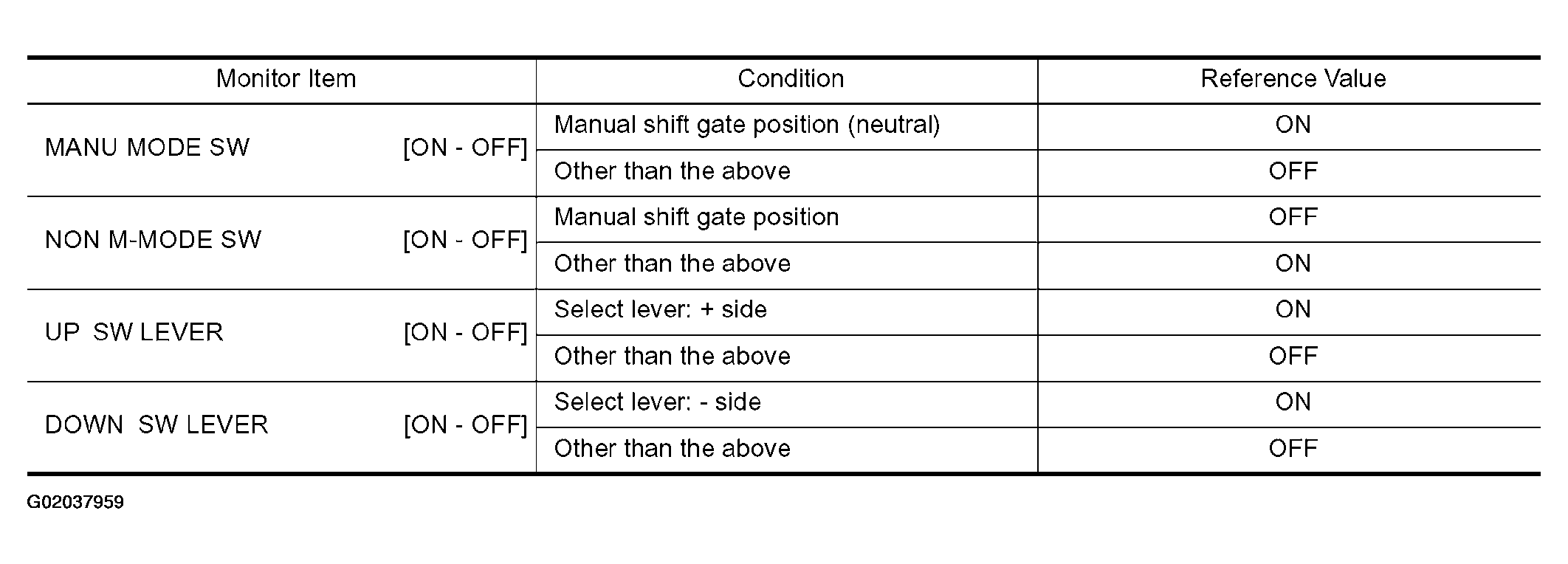

Fig 1: Identifying Consult-Ii Reference Value In Data Monitor Mode Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
