Manual Mode Switch

Check continuity between terminals.

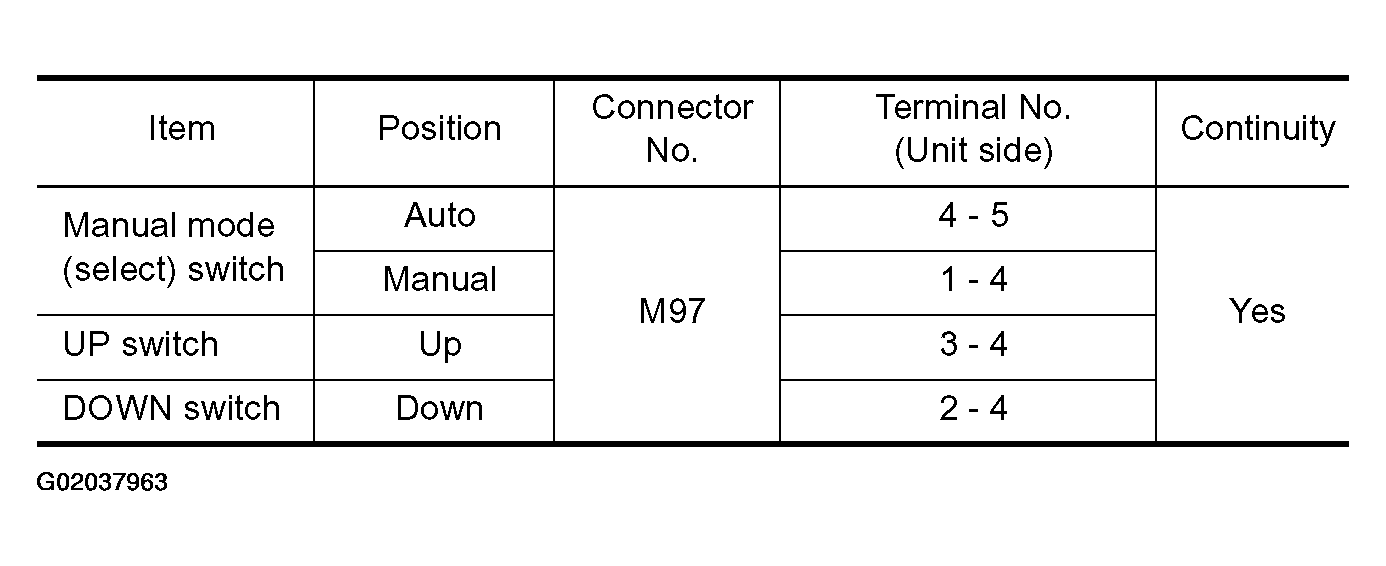

Fig 1: Identifying Manual Mode Switch Continuity Table
G02037963Courtesy of NISSAN MOTOR CO., U.S.A.

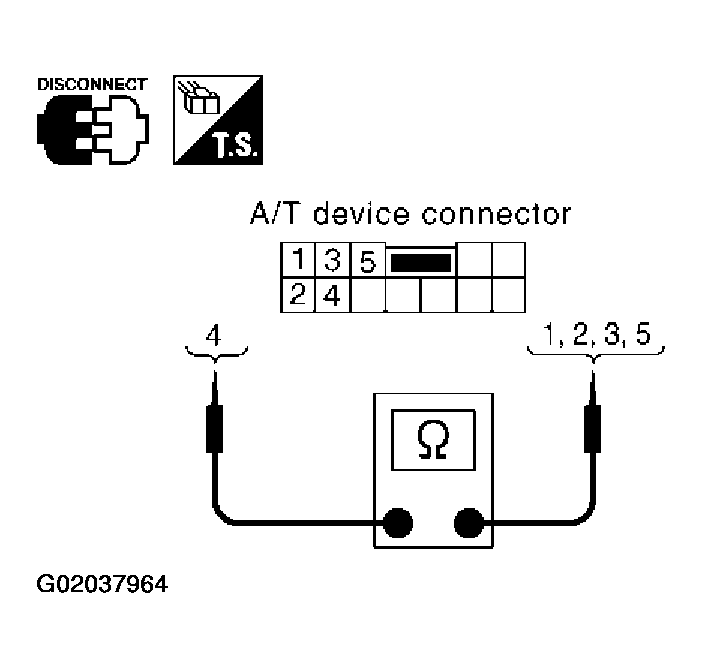

Fig 2: Checking Continuity Between Terminals
G02037964Courtesy of NISSAN MOTOR CO., U.S.A.
