Oil Pump: Assembly

  1. Install O-ring in oil pump cover.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

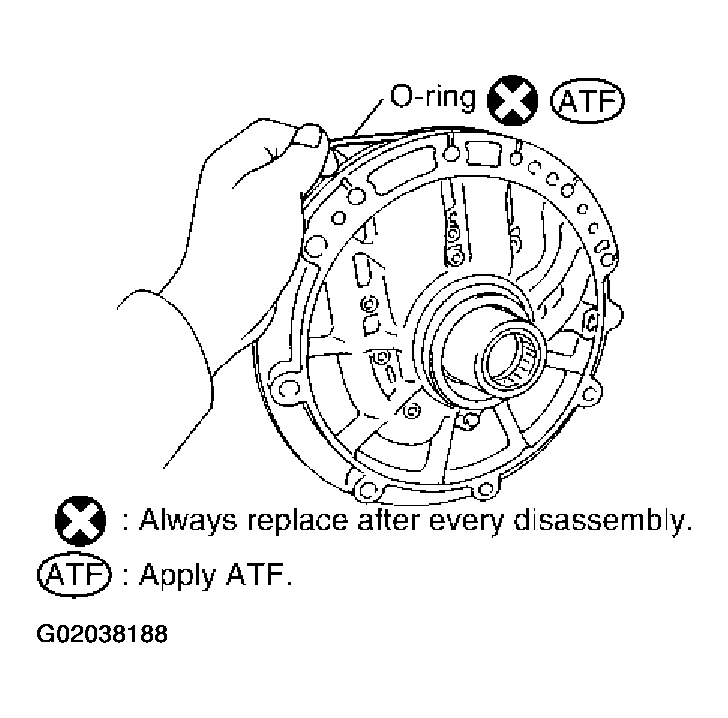

    Fig 1: Installing O-Ring In Oil Pump Cover
    G02038188Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install O-ring in oil pump housing.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

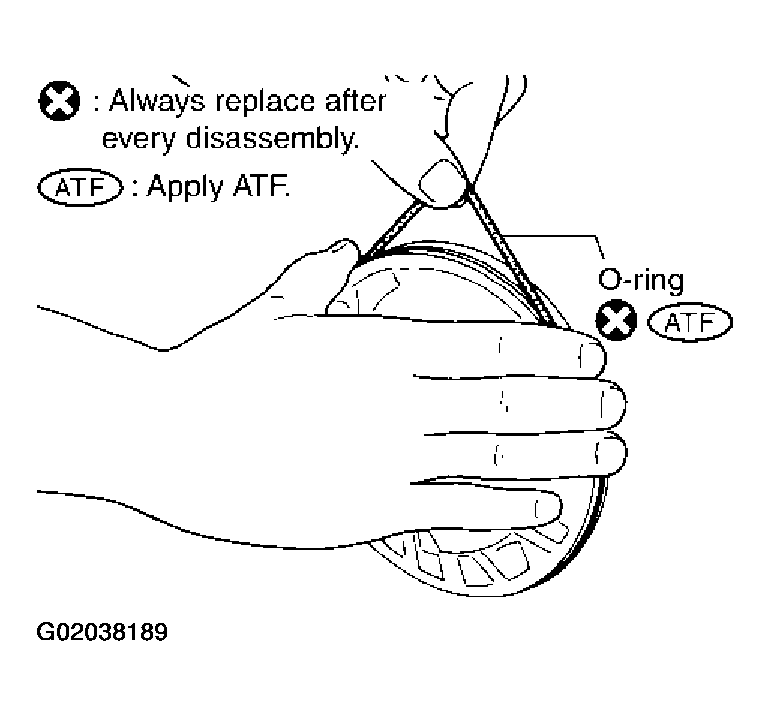

    Fig 2: Installing O-Ring In Oil Pump Housing
    G02038189Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install oil seal in oil pump housing.
    CAUTION:
    • Do not reuse oil seal.
    • Apply ATF to oil seal.

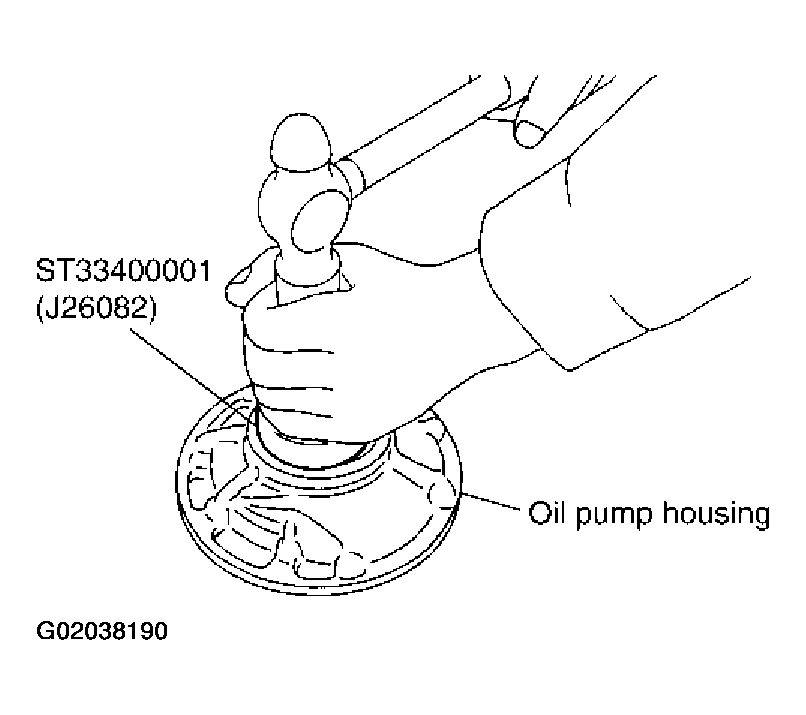

    Fig 3: Installing Oil Seal In Oil Pump Housing
    G02038190Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install oil pump housing in oil pump cover.
    1. : 9.0 N.m (0.92 kg-m, 80 in-lb.)

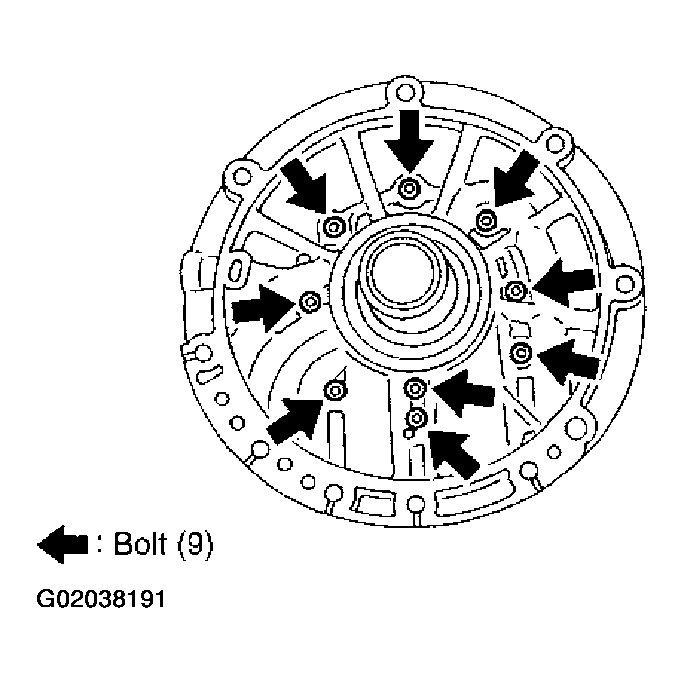

    Fig 4: Installing Oil Pump Housing In Oil Pump Cover
    G02038191Courtesy of NISSAN MOTOR CO., U.S.A.
