Oil Pump: Components

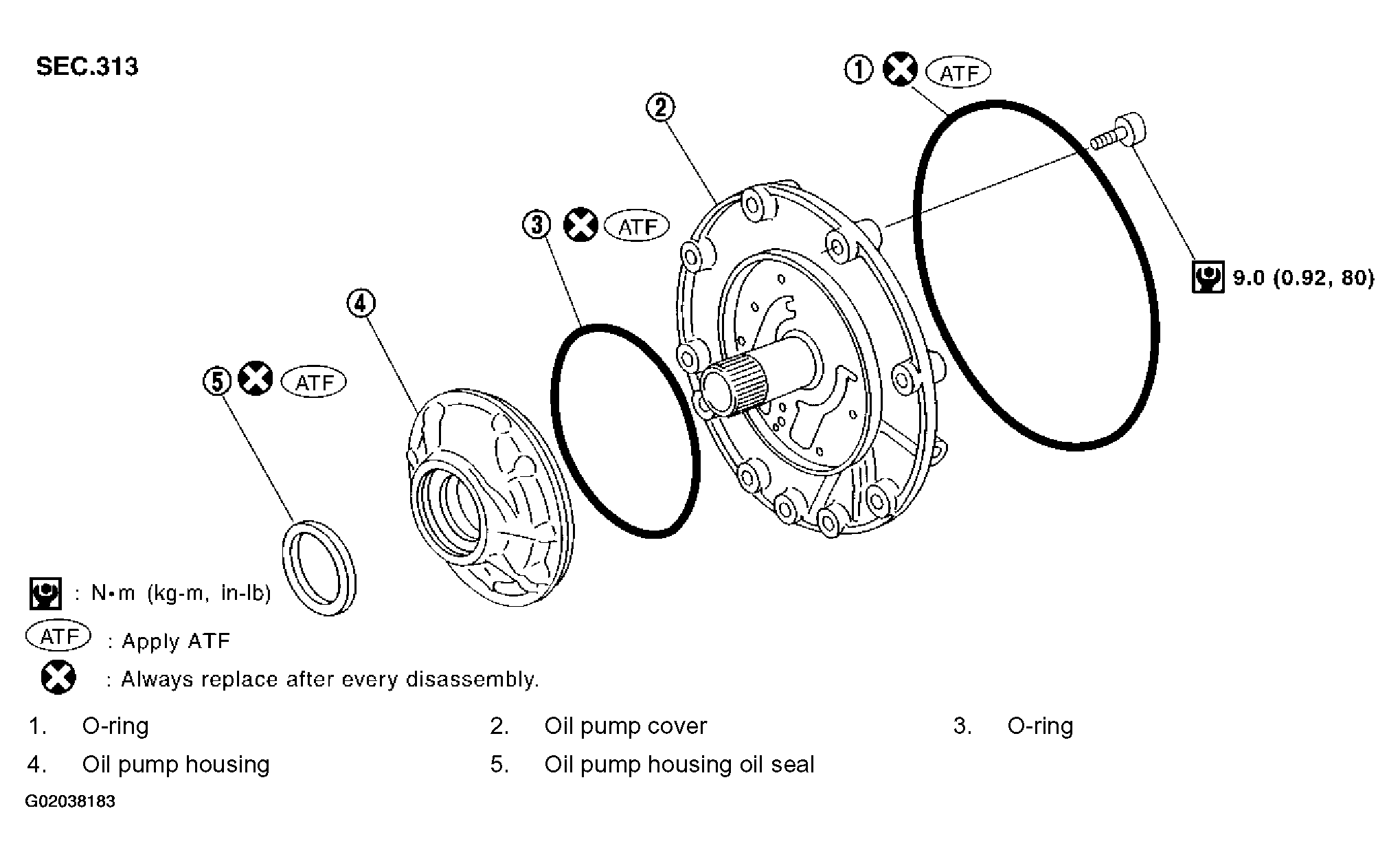

Fig 1: Repairing Oil Pump Components
G02038183Courtesy of NISSAN MOTOR CO., U.S.A.
