A/T Fluid Temperature Sensor

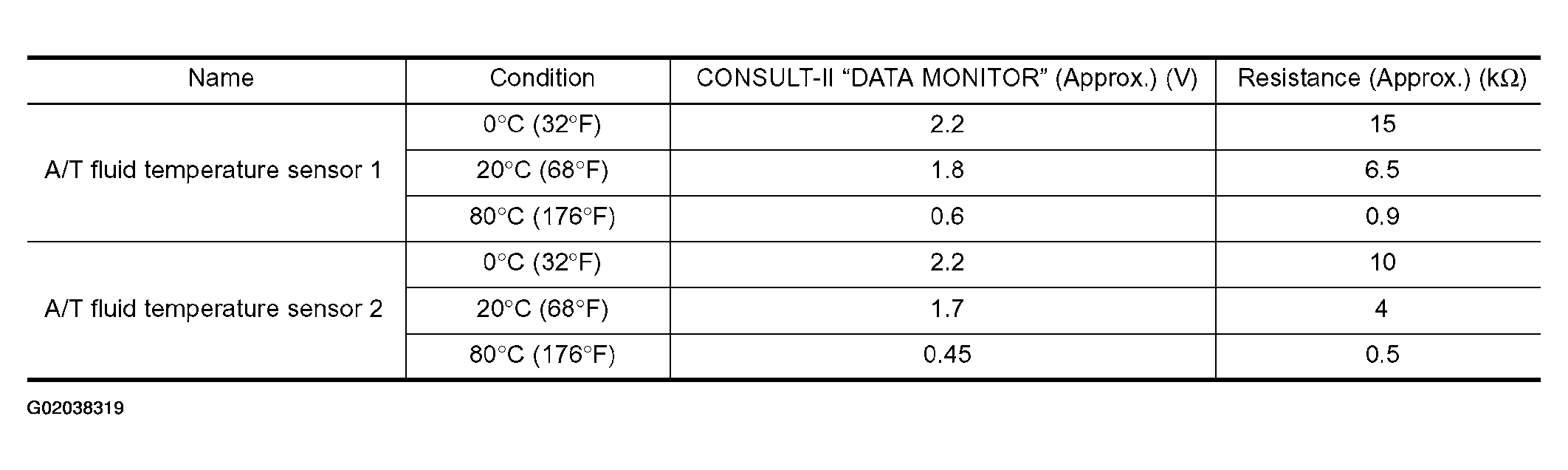

Fig 1: Identifying A/T Fluid Temperature Sensor Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
