TCM Inspection Table

Data are reference value and are measured between each terminal and ground.

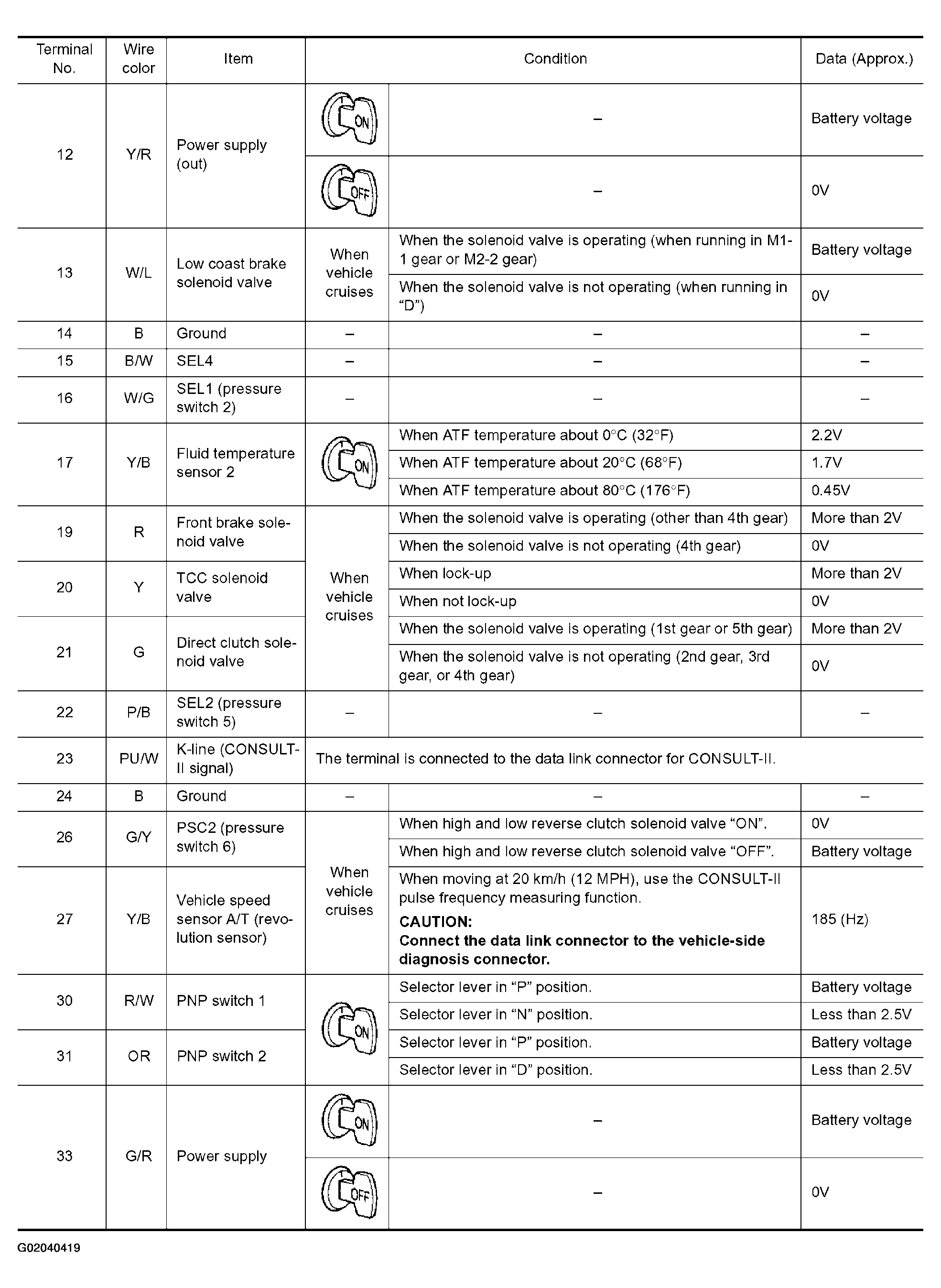

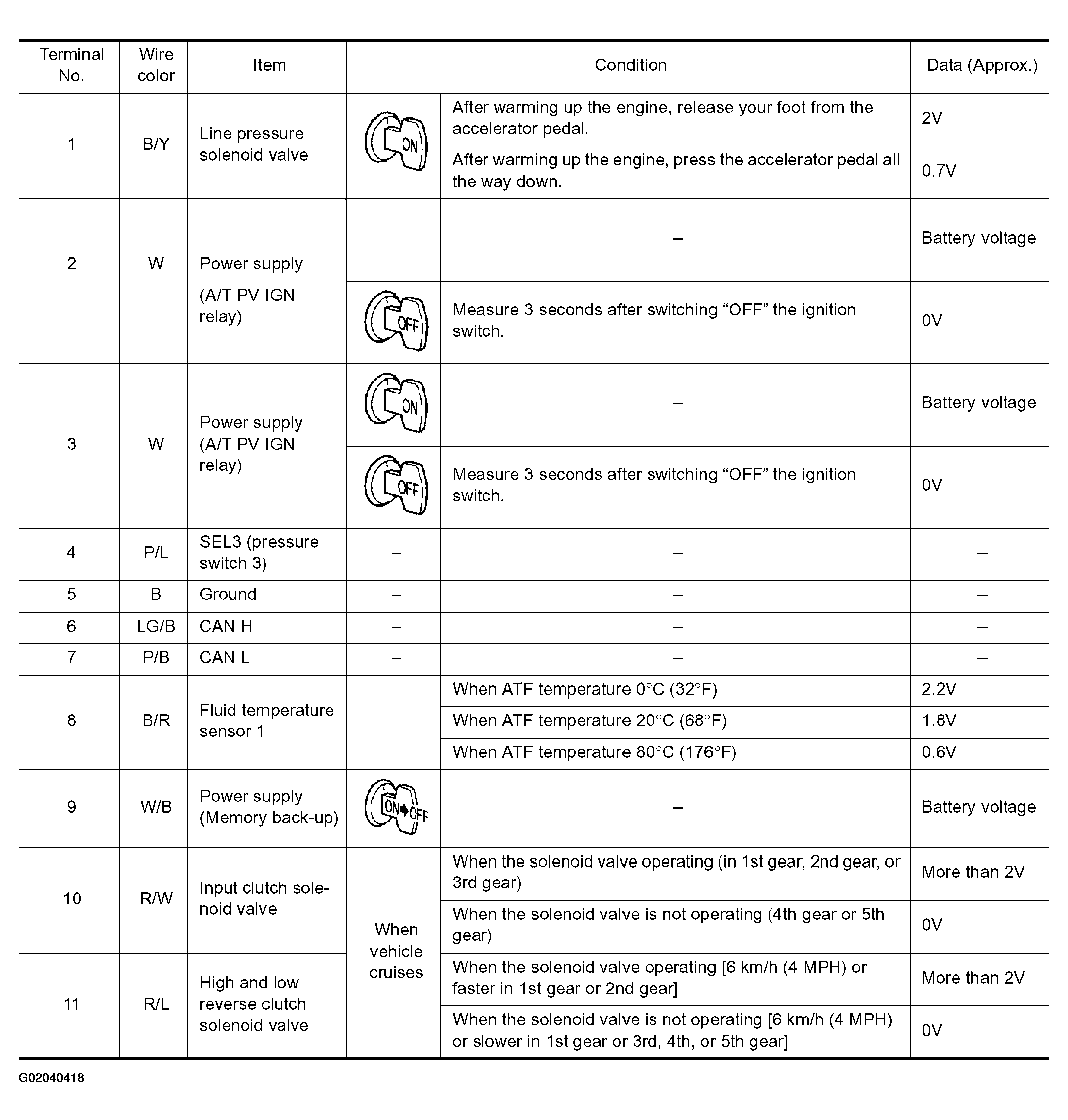

Fig 1: TCM Terminals Voltage Specifications (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

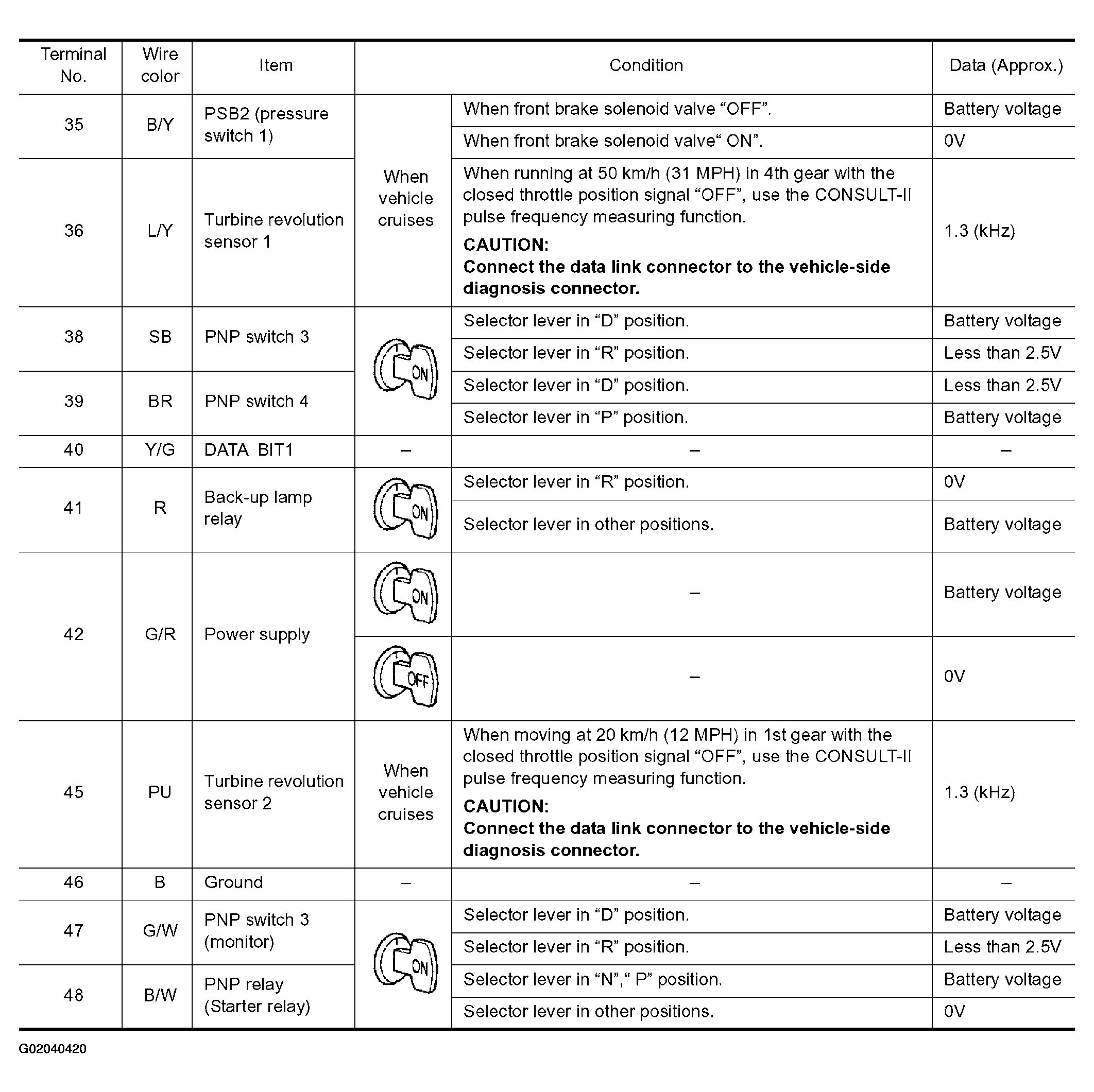

Fig 2: TCM Terminals Voltage Specifications (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: TCM Terminals Voltage Specifications (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
