TCM Terminal Connector Layout

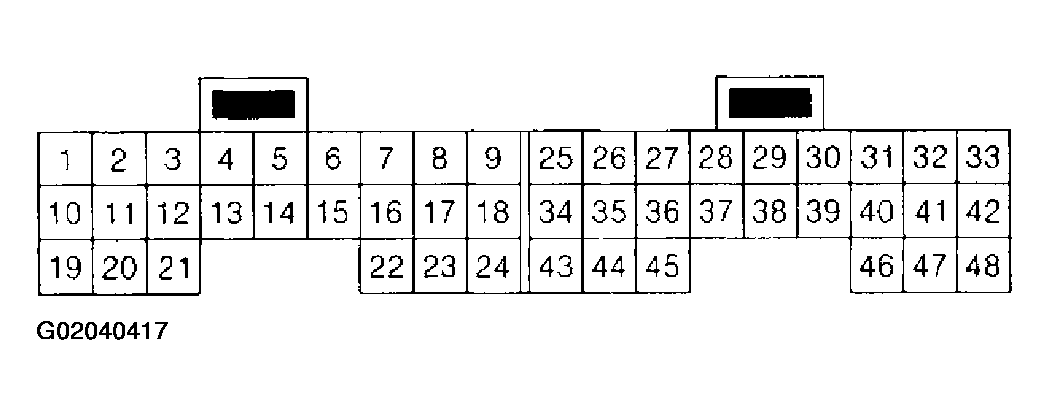

Fig 1: Identifying TCM Terminal Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
